WORKS Green Elite Axle Blocks, Kawasaki KX250F, Part Number 17-248

Consisting of a pair of CNC’d Elite axle blocks, a titanium drive-side receiver and a square removal tool nut, the Elite Axle Block Kit converts your stock Off-Road or Dual Sport model’s rear axle from a fixed design into a floating type. Factory teams use this same floating type design on their race team bikes to improve traction as well as straight line stability and now those same benefits are available from this kit. Another key component is the integrated receiver post on each axle block that allows the use of a caliper to precisely measure and match the left and right axle block’s position. This assures exact alignment of the chain and sprocket so critical to prolonging chain and sprocket life.

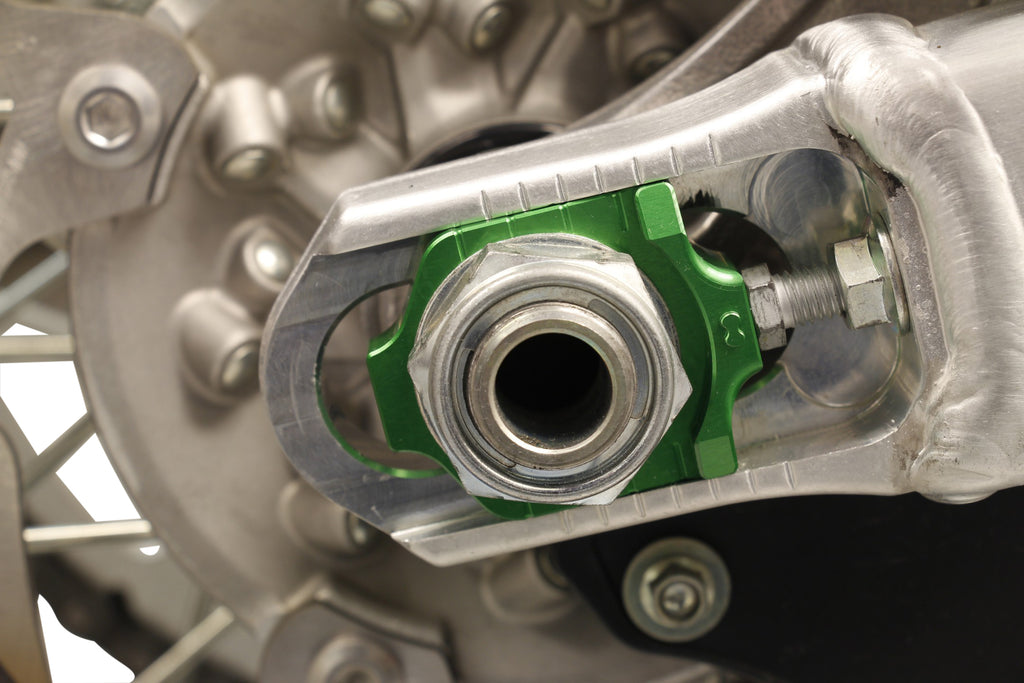

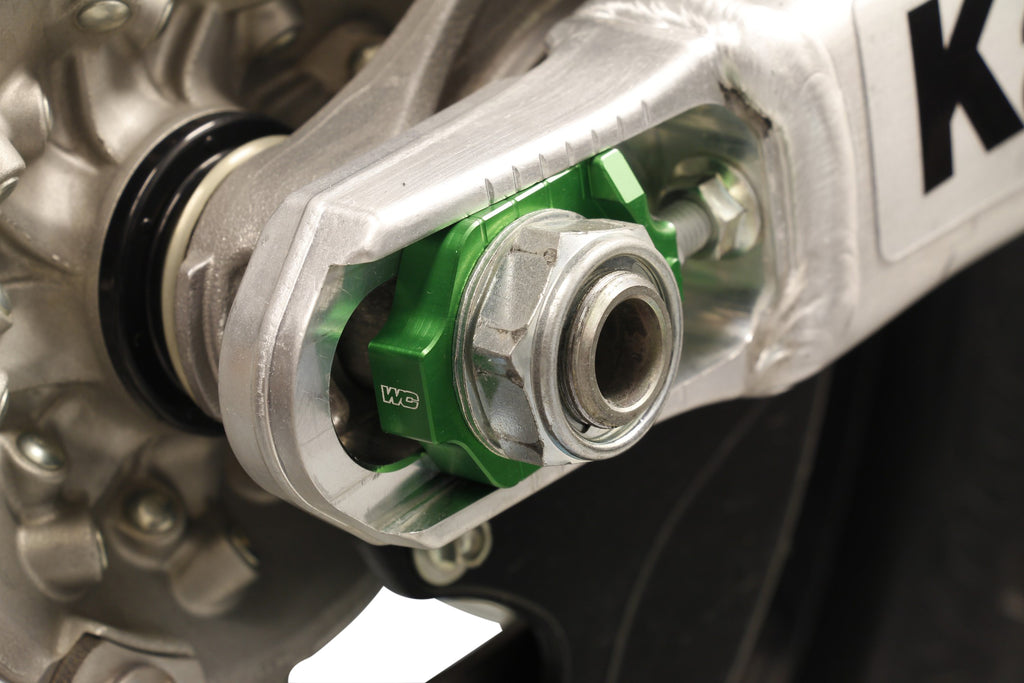

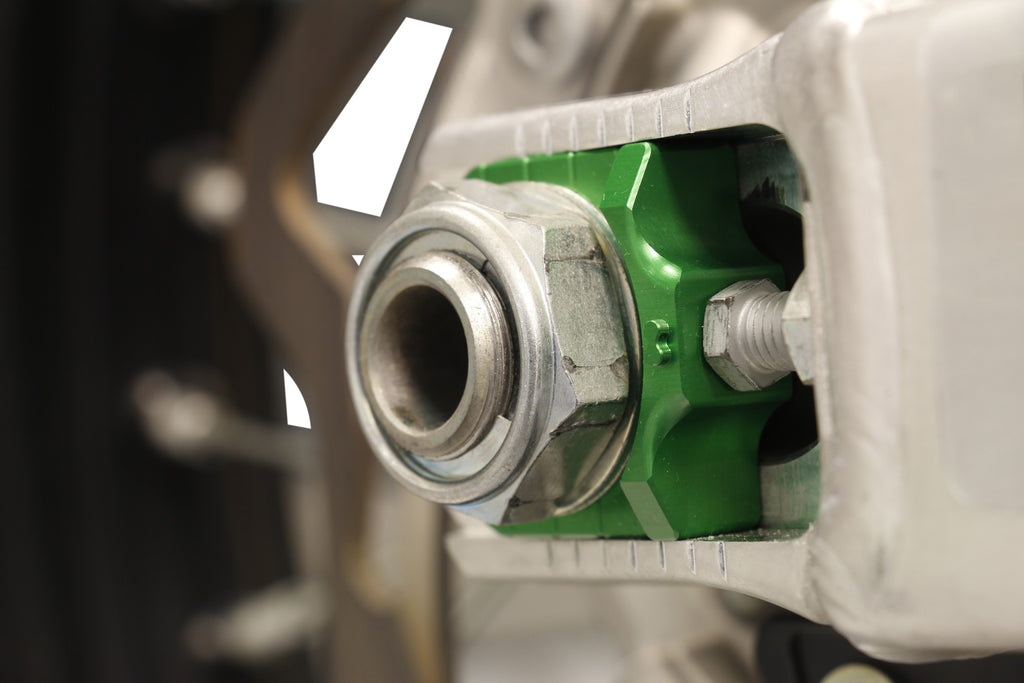

The WORKS Elite Axle Block Kit converts the stock rear axle on compatible Kawasaki KX250F models from a fixed design to a floating type. The floating design is intended to improve traction and straight-line stability. This kit includes a pair of CNC-machined Elite axle blocks, a titanium drive-side receiver, and a square removal tool nut.

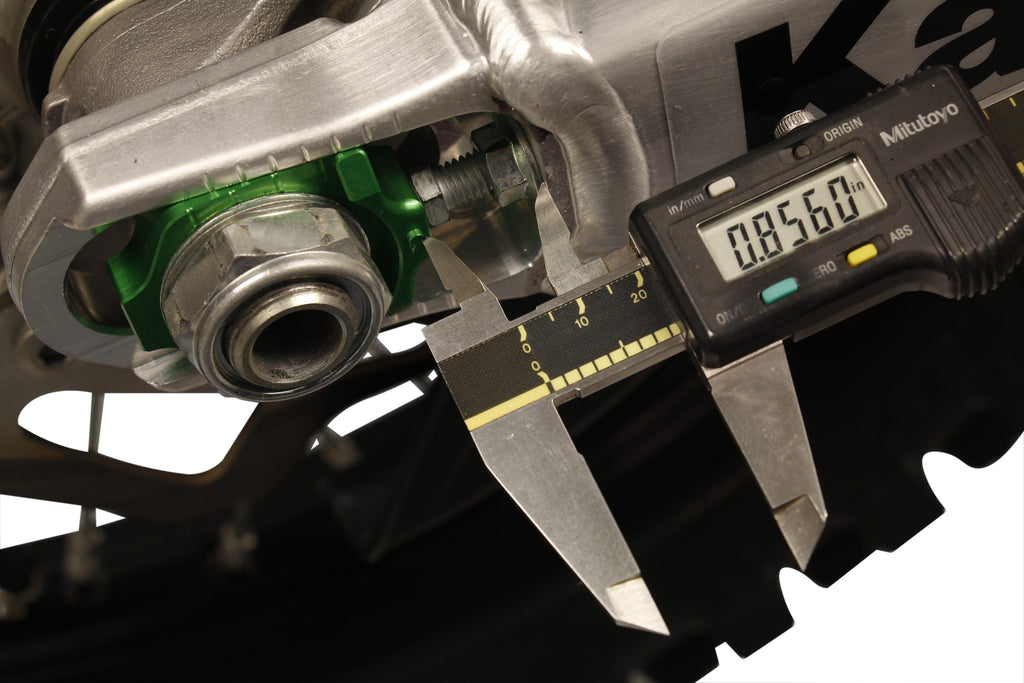

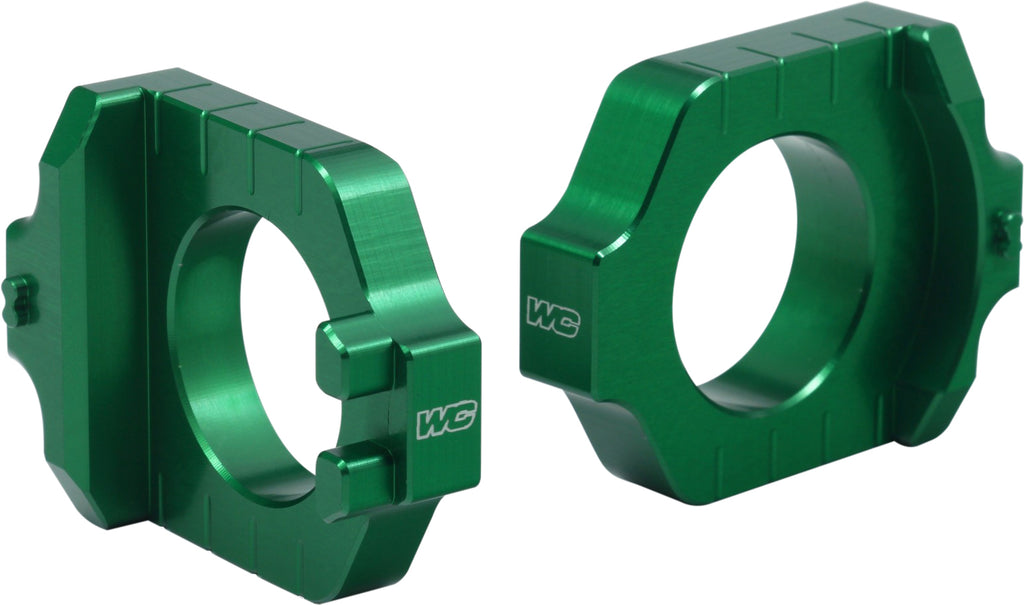

Each axle block features an integrated caliper receiver post, allowing precise measurement and matching of the left and right axle block positions. This helps maintain accurate chain and sprocket alignment, which can help prolong chain and sprocket life. The ultra-slim axle blocks are precision CNC-machined from 6061-T6 billet aluminum and manufactured to tighter tolerances than O.E.M. parts.

The reversible design helps keep axle adjustment bolts from extending beyond their service range. The blocks feature laser-engraved “WC” logos and a green anodized finish. The WORKS Elite Axle Block Kit is made in the USA and fits 2004–2013 Kawasaki KX250F models. Manufacturer part number: 17-248. Vendor part number: 66-17248.

Features:

• Integrated caliper receiver post helps ensure precise measurement for true chain alignment
• Ultra-slim design precision CNC-machined from 6061-T6 billet aluminum
• Manufactured with tighter tolerances than O.E.M. parts
• Reversible design helps keep axle adjustment bolts from extending beyond their service range
• Laser-engraved “WC” logos
• Green anodized finish
• Made in the USA
• Fits 2004–2013 Kawasaki KX250F models

Fitment:
2003 Kawasaki KX125
2003 Kawasaki KX250
2004 Kawasaki KX125
2004 Kawasaki KX250
2004 Kawasaki KX250F
2005 Kawasaki KX125
2005 Kawasaki KX250
2005 Kawasaki KX250F
2006 Kawasaki KX250
2006 Kawasaki KX250F
2006 Kawasaki KX450F
2007 Kawasaki KX250
2007 Kawasaki KX250F
2007 Kawasaki KX450F
2008 Kawasaki KLX450R
2008 Kawasaki KX250F
2008 Kawasaki KX450F
2009 Kawasaki KLX450R
2009 Kawasaki KX250F
2009 Kawasaki KX450F
2010 Kawasaki KX250F
2010 Kawasaki KX450F
2011 Kawasaki KX250F
2011 Kawasaki KX450F
2012 Kawasaki KX250F
2012 Kawasaki KX450F
2013 Kawasaki KX250F
2013 Kawasaki KX450F
2014 Kawasaki KX250F
2014 Kawasaki KX450F
2015 Kawasaki KX250F
2015 Kawasaki KX450F
2016 Kawasaki KX250F
2016 Kawasaki KX450F
2017 Kawasaki KX250F
2017 Kawasaki KX450F
2018 Kawasaki KX250F
2018 Kawasaki KX450F
2019 Kawasaki KX450F
2020 Kawasaki KX450F
2021 Kawasaki KX450F
2022 Kawasaki KX450F
