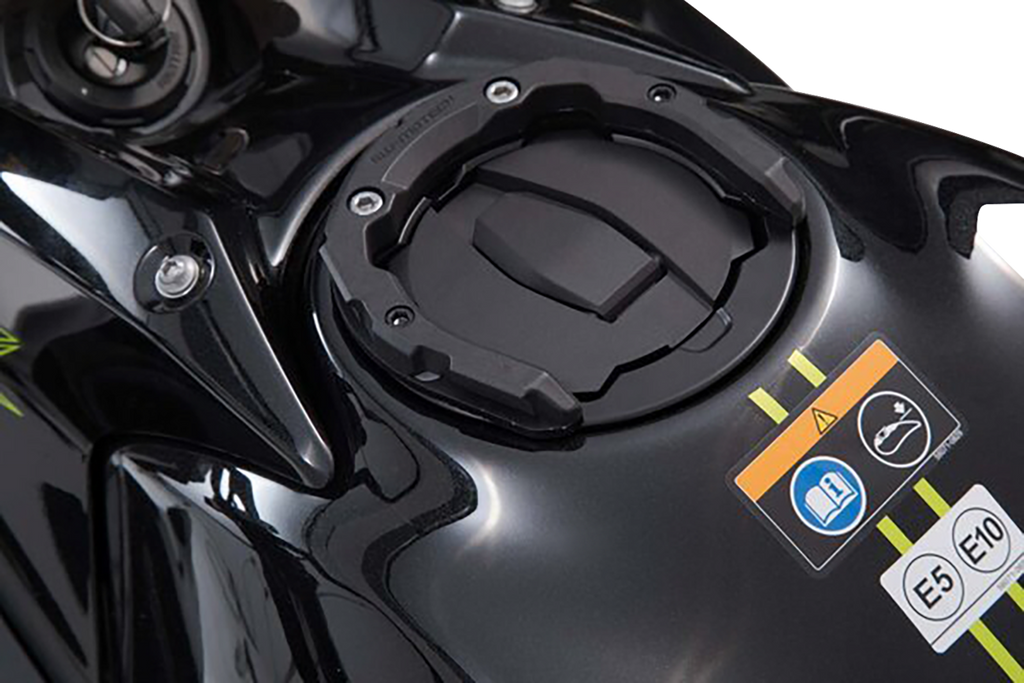

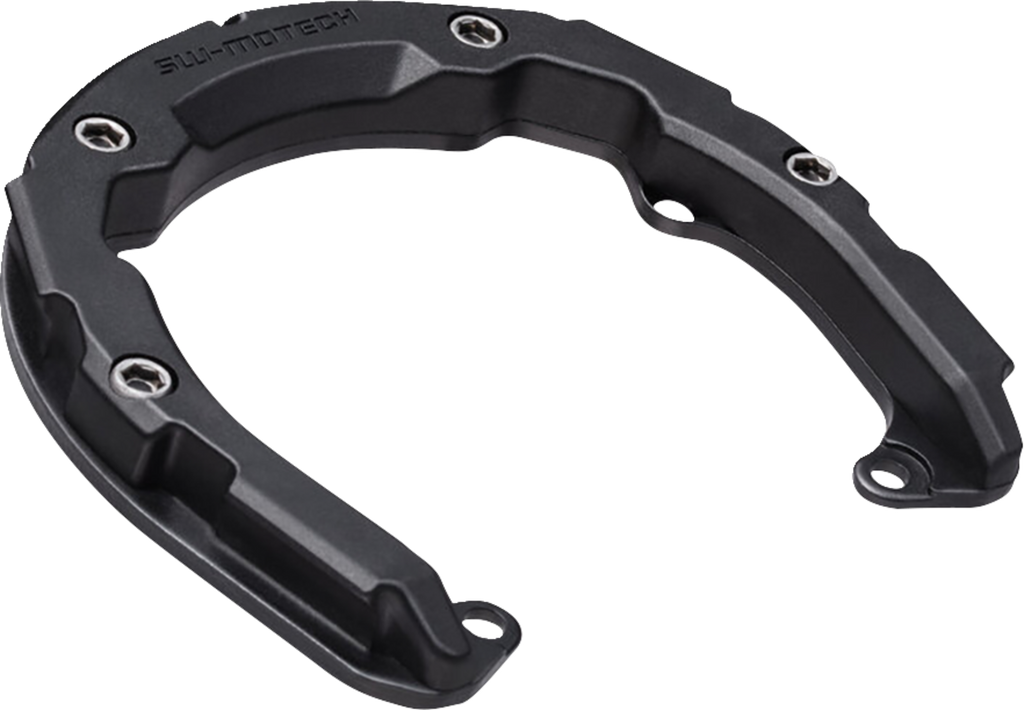

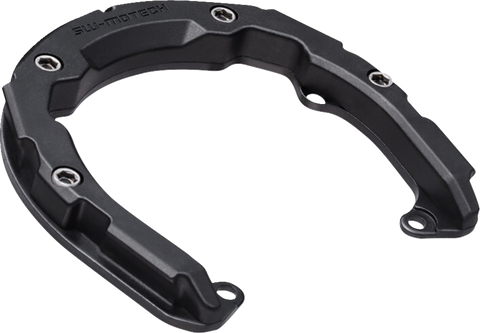

The SW-Motech PRO Tank Ring Kit is a bike-specific mounting solution for Kawasaki motorcycles with an original closed adapter for the tank filler neck. Manufacturer part number TRT.00.787.31200/B, this kit replaces the factory-installed tank filler ring with a dedicated tank ring adapter, allowing compatible SW-Motech PRO tank bags to attach securely without contacting the motorcycle’s painted fuel tank.

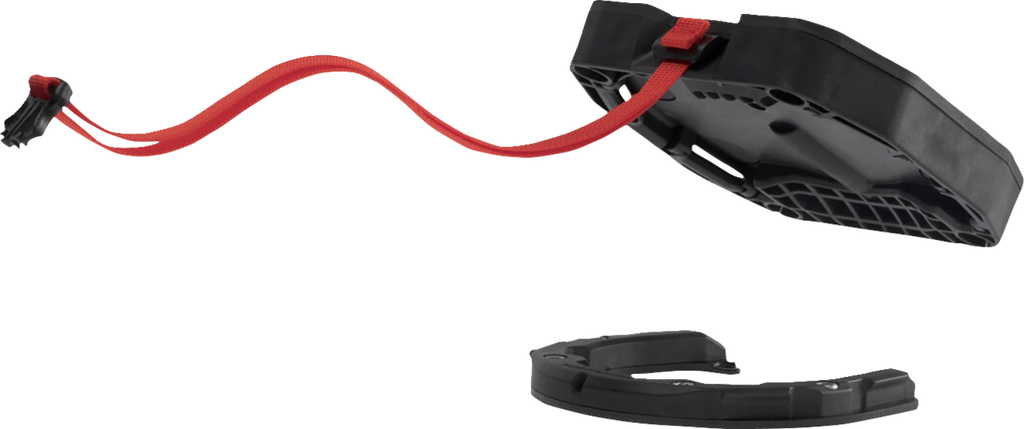

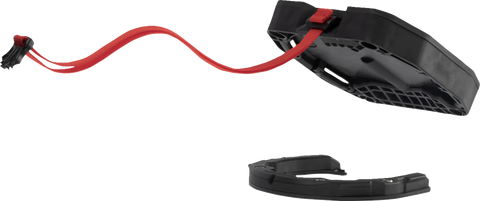

Made from fiberglass-reinforced polyamide, the PRO tank ring uses a patented mounting design with a magnetic guide aid for quick and accurate tank bag positioning. The sliding top ring is supplied pre-assembled on the PRO tank bag with its guide rail, so the bag does not require drilling or modification. Quick-release pull straps let you remove the tank bag in one movement, while the fuel cap remains accessible for convenient refueling.
Two included height-increasing elements provide 12 mm of additional adjustment, helping position the tank bag correctly over the tank and allowing individualized setup. The kit includes the PRO tank ring, a Kawasaki-specific adapter ring, and the height-adjustment components. Installation is designed for simple mounting at the tank neck and provides a paintwork-protecting, non-contact solution for compatible PRO-series tank bags. PRO tank rings cannot be combined with EVO tank bags, and the height-increasing elements must be used only with PRO tank rings and PRO tank bags. Verify motorcycle model compatibility before installation.
Features:
- Bike-specific fit: Designed for select Kawasaki motorcycles with an original closed adapter for the tank filler neck.
- PRO-series compatibility: Provides a secure mounting point for compatible SW-Motech PRO tank bags.
- Adjustable positioning: Two height-increasing elements add 0.47 inches of adjustment for individualized tank bag placement.
- Paint protection: Keeps the tank bag elevated above the painted fuel tank to help prevent contact and abrasion.
- Quick release: Pull straps allow the PRO tank bag to be removed with one movement.
- Easy attachment: Integrated magnetic guide aid simplifies alignment and installation.
- Refueling access: The fuel cap opens normally without removing the tank ring.
- No drilling required: The sliding top ring arrives pre-assembled on the tank bag with a guide rail.
- Durable construction: Made from fiberglass-reinforced polyamide for strength and reliable everyday use.
- Manufacturer part number: SW-Motech TRT.00.787.31200/B.
