S&S Offroad Turbocharger Kit for 2020–2023 Kawasaki KRX 1000 Teryx, Part Number 560-0331

Despite being incredibly durable, we couldn’t help but notice the Kawasaki KRX 1000 was begging for more power. Well, how could we hear that and not help? Introducing the S&S Off Road Division KRX Turbo Kit! How does a 50% gain in Horsepower and a 0-60 time that drops from the factory 11.5 seconds to a much more fun 6.2 seconds sound? Our kit includes a massive fan cooled air to air intercooler (others do not) as well as 9:1 compression pistons that allow for 10 psi of boost (double of any competitors kits) and a pre-loaded PV3 tuner. To top it off, our kit also includes a tuned plenum (the factory unit can’t handle boost), larger injectors, fuel rail, and even correct temp plugs, all in a factory-style package with hundreds of hours of durability testing behind it. We’re only doing a limited run of them, so get yours now.

The S&S Offroad Part Number 560-0331 Turbocharger Kit is designed for 2020–2023 Kawasaki KRX 1000 Teryx models seeking substantial, reliable performance gains. This complete turbo system is engineered for closed-course competition use and is designed to deliver more than a 50% increase in horsepower over the factory configuration. With tuning calibrated for up to 10 psi of boost, the kit provides a comprehensive solution for adding forced induction without relying on a collection of mismatched components.

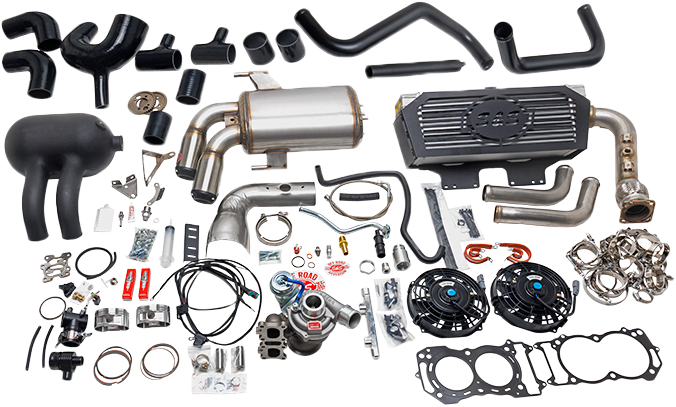

The system includes a fan-cooled, full-size aluminum air-to-air intercooler, stainless steel air tubes with silicone couplers, a blow-off valve, and a 3 Bar MAP sensor. S&S Offroad also supplies forged 9:1 compression pistons, a custom rotomolded intake plenum, a high-capacity billet fuel rail with fuel damper, and 900 cc/min injectors. A Power Tune XTO® muffler, correct-temperature spark plugs, all required mounting brackets and hardware, and a pre-loaded PV3 tuning device are included for a factory-style installation and matched engine calibration.

Fitment includes the 2020, 2021, 2022, and 2023 Kawasaki KRX 1000 Teryx, including applicable SE and Trail models. The kit can be used with the Kawasaki Sport Roof, Kawasaki Alternator Kit, and Kawasaki Spare Tire Rack. Manufacturer and vendor part number: 560-0331. This product is intended for closed-course competition use only and is not legal for sale or use on federally pollution-controlled motor vehicles under the Clean Air Act. California use is limited to racing vehicles in closed-course competition. This product may expose users to chemicals, including chromium, known to the State of California to cause cancer and birth defects or other reproductive harm. See www.P65Warnings.ca.gov for additional information.

Features:

• Performance: Designed to provide a 50% or greater horsepower increase over the factory Kawasaki KRX 1000 configuration
• Boost Calibration: Tuned for operation at up to 10 psi of boost
• Piston Kit: Includes forged 9:1 compression pistons compared with the factory 11.5:1 compression ratio
• Intercooler: Full-size, fan-cooled aluminum air-to-air intercooler included
• Exhaust: Includes a Power Tune XTO® muffler
• Air System: Stainless steel air tubes with silicone couplers
• Boost Control: Blow-off valve and 3 Bar MAP sensor included
• Tuning: Pre-loaded PV3 tuning device included
• Intake Plenum: Custom rotomolded intake plenum designed for boosted applications
• Fuel System: High-capacity billet fuel rail with fuel damper and 900 cc/min injectors
• Installation: Includes required mounting hardware and brackets
• Compatibility: Can be used with the Kawasaki Sport Roof, Kawasaki Alternator Kit, and Kawasaki Spare Tire Rack
• Fitment: Fits 2020–2023 Kawasaki KRX 1000 Teryx, including applicable SE and Trail models
• Use Restriction: For closed-course competition use only; not legal for federally pollution-controlled motor vehicles

Fitment:
2020 Kawasaki KRX 1000 Teryx
2021 Kawasaki KRX 1000 Teryx
2021 Kawasaki KRX 1000 Teryx SE
2021 Kawasaki KRX 1000 Teryx Trail
2022 Kawasaki KRX 1000 Teryx
2022 Kawasaki KRX 1000 Teryx SE
2022 Kawasaki KRX 1000 Teryx Trail
2023 Kawasaki KRX 1000 Teryx
2023 Kawasaki KRX 1000 Teryx SE
2023 Kawasaki KRX 1000 Teryx Trail
