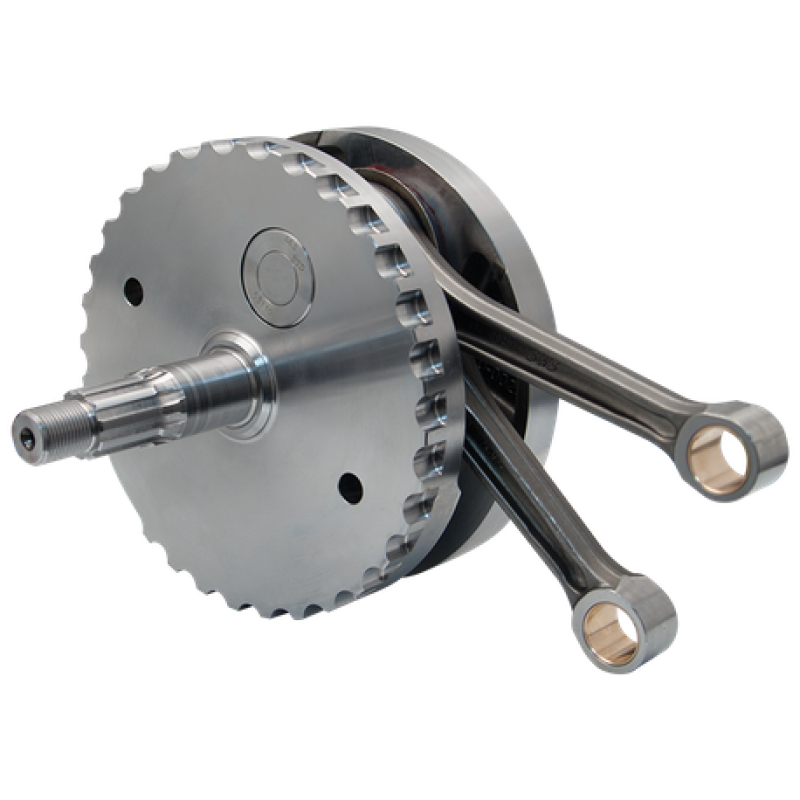

S&S Cycle 4-5/8-Inch Stroke Flywheel Assembly, Model 00-06 BT, Part 320-0469

This 4-5/8" stroke 8-1/2" diameter flywheel assembly fits 2000-'06 internally balanced HD® big twin models as part of an S&S® 124" Hot Set Up Kit®. Sprocket shaft does not have a stock style bearing race pressed on. This flywheel assembly is for crankcases with Timken® sprocket shaft bearing. Flywheel assembly is three piece design. Pinion and sprocket shafts are forged as part of the flywheel. Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams.

• Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114 percent stronger than late style stock steel flywheels
• Fully assembled with premium quaility S&S® heavy duty 7.667" connecting rods, with full width wrist pin ends, and dynamically balanced
• The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels
• Pinion shaft has sprocket to drive balancer chain

S&S Cycle flywheel assembly, model 00-06 BT and manufacturer part number 320-0469, features a 4-5/8-inch stroke and is designed for 2000–2006 internally balanced Harley-Davidson Big Twin models as part of an S&S 124-inch Hot Set Up Kit. The assembly is intended for crankcases with a Timken sprocket shaft bearing and does not include a stock-style bearing race pressed onto the sprocket shaft.

This three-piece flywheel assembly uses pinion and sprocket shafts forged as part of the flywheel. It is trued to less than 0.0005 inch runout on the pinion and sprocket shaft bearing surfaces, supporting higher-rpm operation and compatibility with gear-drive cams. The 8-1/2-inch-diameter flywheels are CNC machined from heat-treated, closed-die steel forgings and are stated to be 114 percent stronger than late-style stock steel flywheels.

The assembly includes S&S heavy-duty 7.667-inch connecting rods with full-width wrist-pin ends and is dynamically balanced. The only joints are where the 1.671-inch-diameter connecting-rod crankpin is pressed into the flywheels. The pinion shaft includes a sprocket to drive the balancer chain.

Listed fitment includes select 2002–2004 Harley-Davidson models: FLHRCI Road King Classic, FLHTCI Electra Glide Classic, FLHTCUI Electra Glide Ultra Classic, FLTRI Road Glide, and FLHRI Road King. Verify the motorcycle configuration and crankcase bearing arrangement before installation.

Features:

• Stroke: 4-5/8 inches
• Flywheel diameter: 8-1/2 inches
• Model: 00-06 BT
• Manufacturer part number: 320-0469
• Application: 2000–2006 internally balanced Harley-Davidson Big Twin models
• Bearing requirement: For crankcases with Timken sprocket shaft bearing
• Sprocket shaft: Does not have a stock-style bearing race pressed on
• Construction: Three-piece flywheel assembly with forged pinion and sprocket shafts
• Runout: Trued to less than 0.0005 inch on pinion and sprocket shaft bearing surfaces
• Flywheel material: CNC-machined, heat-treated, closed-die steel forgings
• Connecting rods: S&S heavy-duty 7.667-inch rods with full-width wrist-pin ends
• Balancing: Dynamically balanced
• Crankpin: 1.671-inch diameter
• Drive feature: Pinion shaft sprocket drives the balancer chain
• Listed fitment: Select 2002–2004 Harley-Davidson FLHRCI, FLHRI, FLHTCI, FLHTCUI, and FLTRI models

Air Freight Prohibited: false
Not Carb Approved: true
Ltl Freight Required: false
Prop 65: Unknown
Part Type: powersports
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
Units Per Sku: 1
Fitment:
1999 Harley Davidson FLHR Road King Base
1999 Harley Davidson FLHRCI Road King Classic Base
1999 Harley Davidson FLHTC Electra Glide Classic Base
1999 Harley Davidson FLHTCI Electra Glide Classic Base
1999 Harley Davidson FLHTCUI Electra Glide Ultra Classic Base
1999 Harley Davidson FLSTC Heritage Softail Classic Base
1999 Harley Davidson FLSTF Fat Boy Base
1999 Harley Davidson FLTR Road Glide Base
1999 Harley Davidson FLTRI Road Glide Base
1999 Harley Davidson FXR2 Base
1999 Harley Davidson FXR3 Base
1999 Harley Davidson FXSTB Night Train Base
1999 Harley Davidson FXSTC Softail Custom Base
1999 Harley Davidson FXSTS Springer Softail Base
2000 Harley Davidson FLHR Road King Base
2000 Harley Davidson FLHRCI Road King Classic Base
2000 Harley Davidson FLHRI Road King Base
2000 Harley Davidson FLHTC Electra Glide Classic Base
2000 Harley Davidson FLHTCI Electra Glide Classic Base
2000 Harley Davidson FLHTCUI Electra Glide Ultra Classic Base
2000 Harley Davidson FLSTC Heritage Softail Classic Base
2000 Harley Davidson FLSTF Fat Boy Base
2000 Harley Davidson FLTR Road Glide Base
2000 Harley Davidson FLTRI Road Glide Base
2000 Harley Davidson FXR4 Base
2000 Harley Davidson FXSTB Night Train Base
2000 Harley Davidson FXSTD Softail Deuce Base
2000 Harley Davidson FXSTS Springer Softail Base
2001 Harley Davidson FLHR Road King Base
2001 Harley Davidson FLHRCI Road King Classic Base
2001 Harley Davidson FLHRI Road King Base
2001 Harley Davidson FLHTC Electra Glide Classic Base
2001 Harley Davidson FLHTCI Electra Glide Classic Base
2001 Harley Davidson FLHTCUI Electra Glide Ultra Classic Base
2001 Harley Davidson FLSTC Heritage Softail Classic Base
2001 Harley Davidson FLSTF Fat Boy Base
2001 Harley Davidson FLTR Road Glide Base
2001 Harley Davidson FLTRI Road Glide Base
2001 Harley Davidson FXSTB Night Train Base
2001 Harley Davidson FXSTD Softail Deuce Base
2001 Harley Davidson FXSTS Springer Softail Base
2002 Harley Davidson FLHR Road King Base
2002 Harley Davidson FLHRCI Road King Classic Base
2002 Harley Davidson FLHRI Road King Base
2002 Harley Davidson FLHTC Electra Glide Classic Base
2002 Harley Davidson FLHTCI Electra Glide Classic Base
2002 Harley Davidson FLHTCUI Electra Glide Ultra Classic Base
2002 Harley Davidson FLSTC Heritage Softail Classic Base
2002 Harley Davidson FLSTF Fat Boy Base
2002 Harley Davidson FLTR Road Glide Base
2002 Harley Davidson FLTRI Road Glide Base
2002 Harley Davidson FXSTB Night Train Base
2002 Harley Davidson FXSTD Softail Deuce Base
2002 Harley Davidson FXSTS Springer Softail Base
2003 Harley Davidson FLHR Road King Base
2003 Harley Davidson FLHRCI Road King Classic Base
2003 Harley Davidson FLHRI Road King Base
2003 Harley Davidson FLHTC Electra Glide Classic Base
2003 Harley Davidson FLHTCI Electra Glide Classic Base
2003 Harley Davidson FLHTCUI Electra Glide Ultra Classic Base
2003 Harley Davidson FLSTC Heritage Softail Classic Base
2003 Harley Davidson FLSTF Fat Boy Base
2003 Harley Davidson FLTR Road Glide Base
2003 Harley Davidson FLTRI Road Glide Base
2003 Harley Davidson FXSTB Night Train Base
2003 Harley Davidson FXSTD Softail Deuce Base
2003 Harley Davidson FXSTDSE Screamin Eagle Softail Deuce Base
2003 Harley Davidson FXSTS Springer Softail Base
2004 Harley Davidson FLHR Road King Base
2004 Harley Davidson FLHRCI Road King Classic Base
2004 Harley Davidson FLHRI Road King Base
2004 Harley Davidson FLHTC Electra Glide Classic Base
2004 Harley Davidson FLHTCI Electra Glide Classic Base
2004 Harley Davidson FLHTCUI Electra Glide Ultra Classic Base
2004 Harley Davidson FLSTC Heritage Softail Classic Base
2004 Harley Davidson FLSTF Fat Boy Base
2004 Harley Davidson FLTR Road Glide Base
2004 Harley Davidson FLTRI Road Glide Base
2004 Harley Davidson FXSTB Night Train Base
2004 Harley Davidson FXSTD Softail Deuce Base
2004 Harley Davidson FXSTDSE Screamin Eagle Softail Deuce Base
2004 Harley Davidson FXSTS Springer Softail Base
2005 Harley Davidson FLHR Road King Base
2005 Harley Davidson FLHRCI Road King Classic Base
2005 Harley Davidson FLHRI Road King Base
2005 Harley Davidson FLHTC Electra Glide Classic Base
2005 Harley Davidson FLHTCI Electra Glide Classic Base
2005 Harley Davidson FLHTCUI Electra Glide Ultra Classic Base
2005 Harley Davidson FLSTC Heritage Softail Classic Base
2005 Harley Davidson FLSTF Fat Boy Base
2005 Harley Davidson FLTR Road Glide Base
2005 Harley Davidson FLTRI Road Glide Base
2005 Harley Davidson FXSTB Night Train Base
2005 Harley Davidson FXSTD Softail Deuce Base
2005 Harley Davidson FXSTS Springer Softail Base
2006 Harley Davidson FLHR Road King Base
2006 Harley Davidson FLHRCI Road King Classic Base
2006 Harley Davidson FLHRI Road King Base
2006 Harley Davidson FLHTCI Electra Glide Classic Base
2006 Harley Davidson FLHTCUI Electra Glide Ultra Classic Base
2006 Harley Davidson FLST Heritage Softail Base
2006 Harley Davidson FLSTC Heritage Softail Classic Base
2006 Harley Davidson FLSTF Fat Boy Base
2006 Harley Davidson FLTR Road Glide Base
2006 Harley Davidson FLTRI Road Glide Base
2006 Harley Davidson FXSTB Night Train Base
2006 Harley Davidson FXSTD Softail Deuce Base
2006 Harley Davidson FXSTS Springer Softail Base
