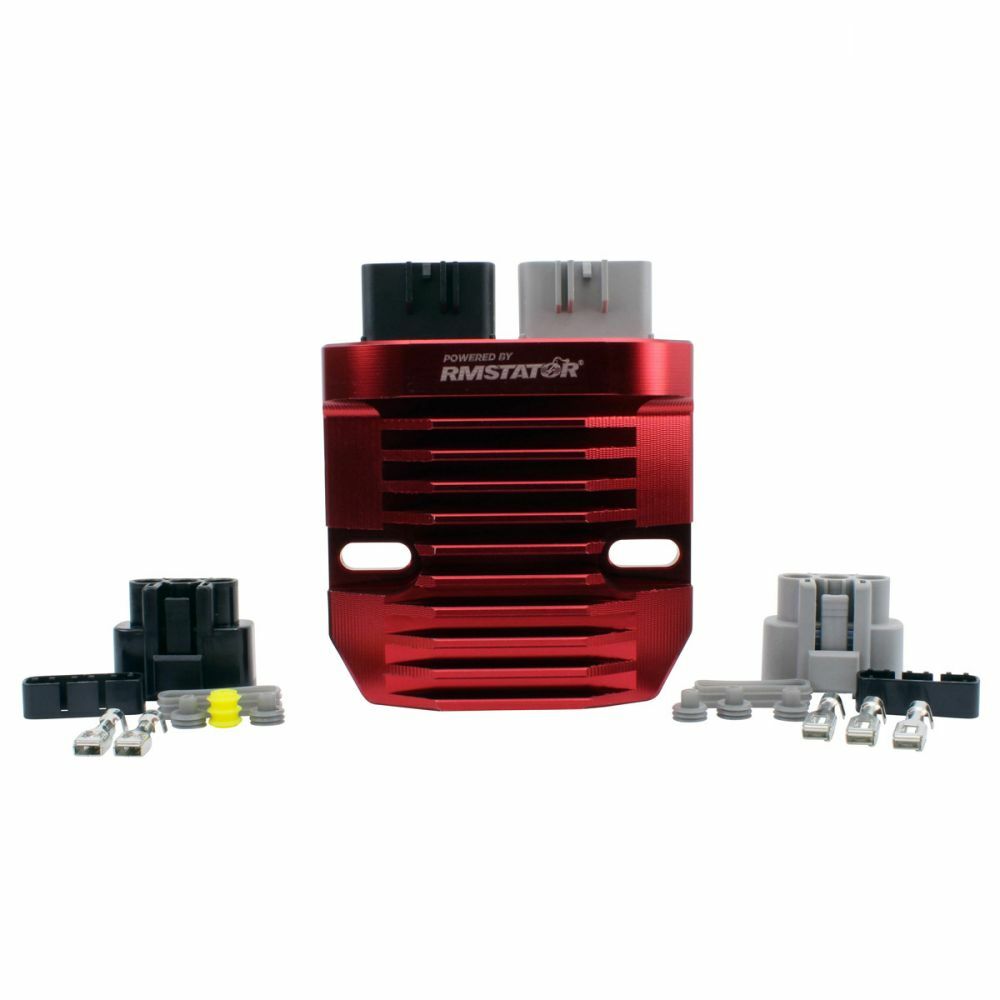

The RM STATOR RMS022-105928 regulator is a series voltage regulator designed for compatible CF-MOTO charging systems. It fits the 2015 and 2016 CF-MOTO CFORCE 400, 2016 CF-MOTO UFORCE 800, 2020 CF-MOTO UForce 500, 2016 and 2015 CF-MOTO ZFORCE 800 Trail, 2016 and 2015 CF-MOTO ZFORCE 800 EX, and 2015 and 2014 CF-MOTO CForce 500.
Unlike shunt and MOSFET voltage regulator rectifiers, the RM STATOR series regulator is designed to operate at lower temperatures. Its machined billet aluminum casing dissipates heat 33% better than standard molded casing. Power flows through the electrical components only while the battery is charging, helping reduce current through the stator when it is not in use.
A shunt regulator controls battery voltage by grounding stator coils and dissipating current as heat. This series regulator controls battery voltage by intermittently disconnecting the stator coils from the regulator electronics, limiting current flow through the unit and to the battery. This design provides more accurate voltage regulation and helps reduce operating temperatures for the regulator and stator, supporting the reliability of compatible charging system components.
Manufacturer part number: RMS022-105928. Vendor part number: RMS022-105928.
Features:
- Brand: RM STATOR
- Product type: Series voltage regulator
- Part number: RMS022-105928
- Housing: Machined billet aluminum casing
- Heat dissipation: Dissipates heat 33% better than standard molded casing
- Operating design: Power flows through the electrical components only when the battery is charging
- Stator support: Allows lower stator current flow when the system is not in use
- Voltage control: Intermittently disconnects stator coils from the regulator electronics to limit current flow
- Fitment: 2015 CF-MOTO CFORCE 400
- Fitment: 2016 CF-MOTO CFORCE 400
- Fitment: 2016 CF-MOTO UFORCE 800
- Fitment: 2016 CF-MOTO ZFORCE 800 Trail
- Fitment: 2016 CF-MOTO ZFORCE 800 EX
- Fitment: 2015 CF-MOTO ZFORCE 800 EX
- Fitment: 2015 CF-MOTO CForce 500
- Fitment: 2014 CF-MOTO CForce 500
- Fitment: 2020 CF-MOTO UForce 500
- Fitment: 2020 CF-MOTO UFORCE 800
Fitment:
2014 CF-MOTO CForce 500
2015 CF-MOTO CFORCE 400
2015 CF-MOTO CForce 500
2015 CF-MOTO CFORCE 800
2015 CF-MOTO ZFORCE 800 EX
2015 CF-MOTO ZFORCE 800 Trail
2016 CF-MOTO CFORCE 400
2016 CF-MOTO CForce 500
2016 CF-MOTO CFORCE 800
2016 CF-MOTO UForce 500
2016 CF-MOTO UFORCE 800
2016 CF-MOTO ZFORCE 800 EX
2016 CF-MOTO ZFORCE 800 Trail
2020 CF-MOTO CFORCE 400
2020 CF-MOTO CForce 500
2020 CF-MOTO CFORCE 600
2020 CF-MOTO Cforce 600 Touring
2020 CF-MOTO UForce 1000
2020 CF-MOTO UForce 500
2020 CF-MOTO UFORCE 800
2020 CF-MOTO ZForce 950 Sport
2021 CF-MOTO CFORCE 400
2021 CF-MOTO CForce 500
2021 CF-MOTO UFORCE 800
2022 CF-MOTO CFORCE 400
2022 CF-MOTO CForce 500
2022 CF-MOTO UFORCE 800
