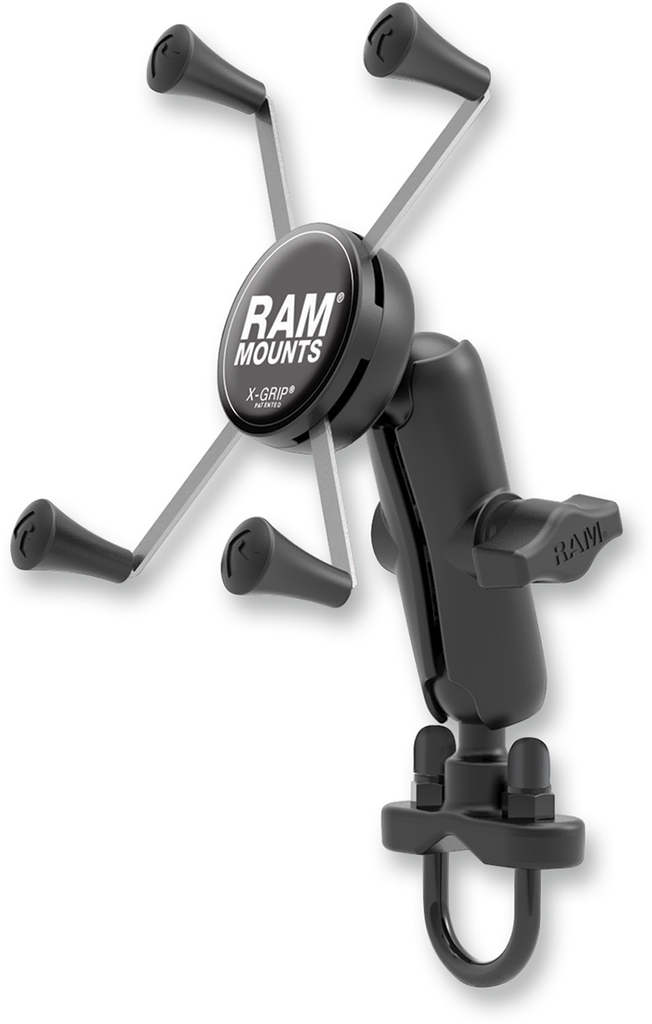

The RAM Mounts RAMB149Z-UN10U Handlebar Rail Mount combines a zinc-coated U-bolt base, double socket arm, and universal spring-loaded X-Grip IV cradle to securely hold large smartphones and phablets. Designed for handlebars and rails, the mounting hardware accommodates rails from 1/2 to 1-1/4 inches in diameter. The included composite rail adapter reduces the minimum rail width to 1/2 inch, while black cover caps provide a clean finish over exposed U-bolt ends.
This RAM Mounts system uses the patented RAM B-size 1-inch-diameter rubber ball-and-socket design, with adjustment points at both ends of the double socket arm. This configuration provides a broad range of positioning options for comfortable viewing and device access. The spring-loaded X-Grip IV cradle expands and contracts to provide a custom fit for compatible handheld devices. A device tether is included and recommended for outdoor applications or environments where additional retention is preferred.
The universal cradle fits devices measuring from 1-3/4 to 4-1/2 inches wide, with compatible height configurations ranging from a minimum of 3-1/4 to 5-1/2 inches, and a depth of up to 7/8 inch. Confirm the overall device dimensions with any case, sleeve, or skin installed before selecting the mount. The RAM Mounts manufacturer part number and vendor part number are both RAMB149Z-UN10U, making this assembly suitable for motorcycles, ATVs, bicycles, utility vehicles, and other applications using compatible handlebar or rail tubing.
Features:
- Zinc-coated U-bolt base supports handlebar and rail installation
- Compatible with rails from 1/2 to 1-1/4 inches in diameter
- Composite rail adapter narrows the minimum rail width to 1/2 inch
- Black cover caps conceal exposed U-bolt ends
- RAM B-size 1-inch-diameter rubber ball-and-socket system provides adjustable positioning
- Double socket arm features adjustment points at both ends for flexible viewing angles
- Spring-loaded X-Grip IV cradle securely fits large smartphones and phablets
- Cradle accommodates devices from 1-3/4 to 4-1/2 inches wide and up to 7/8 inch deep
- Included device tether is recommended for outdoor applications
- Brand: RAM Mounts
- Manufacturer part number: RAMB149Z-UN10U
- Vendor part number: RAMB149Z-UN10U
