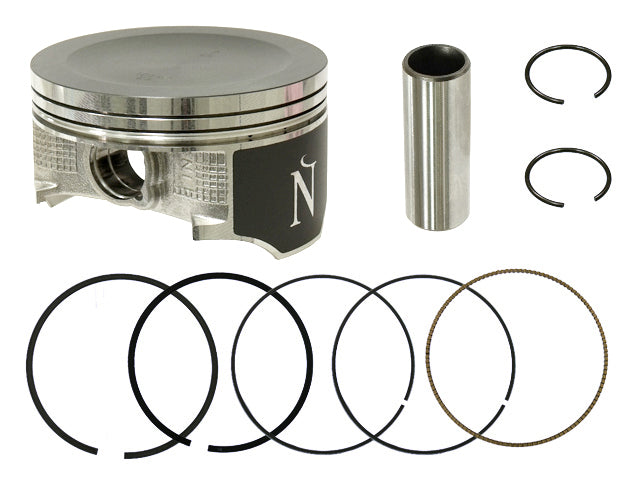

The Namura NA-10012-2 piston kit is designed for select Honda off-road and utility vehicles requiring a 102.47 mm piston with a +0.50 mm oversize specification. This replacement piston kit supports dependable engine rebuilding and is suitable for applications where the cylinder has been bored to match the oversize piston size.
Fitment includes the 2014–2016 Honda SXS700M2 Pioneer 700, 2010–2013 Honda MUV700 Big Red, and 2006–2008 Honda TRX680FA Rincon with independent rear suspension (IRS). Confirm the vehicle model, year, cylinder bore, and required oversize specification before installation to ensure proper fit.
This Namura piston kit uses manufacturer part number NA-10012-2 and vendor part number NA-10012-2. It is not compatible with OEM piston rings, and OEM rings will not work with this piston. Use the correct Namura replacement rings and verify all piston, ring, cylinder, and clearance specifications during engine assembly. Professional installation and adherence to the vehicle manufacturer’s service procedures are recommended.
Features:
- Size: 102.47 mm piston with +0.50 mm oversize specification
- Model: Replacement piston kit for select Honda Pioneer 700, Big Red, and Rincon applications
- Brand: Namura
- Manufacturer Part Number: NA-10012-2
- Vendor Part Number: NA-10012-2
- Fitment: 2014–2016 Honda SXS700M2 Pioneer 700
- Fitment: 2010–2013 Honda MUV700 Big Red
- Fitment: 2006–2008 Honda TRX680FA Rincon with IRS
- Compatibility: Will not accept OEM rings; OEM rings will not work with this piston
Fitment:
2006 Honda TRX680FA Rincon [IRS]
2006 Honda TRX680FGA Rincon GPScape [IRS]
2007 Honda TRX680FA Rincon [IRS]
2007 Honda TRX680FGA Rincon GPScape [IRS]
2008 Honda TRX680FA Rincon [IRS]
2008 Honda TRX680FGA Rincon GPScape [IRS]
2009 Honda TRX680FA Rincon [IRS]
2009 Honda TRX680FGA Rincon GPScape [IRS]
2010 Honda Muv700 Big Red
2010 Honda TRX680FA Rincon [IRS]
2011 Honda Muv700 Big Red
2011 Honda TRX680FA Rincon [IRS]
2012 Honda Muv700 Big Red
2012 Honda TRX680FA Rincon [IRS]
2013 Honda Muv700 Big Red
2013 Honda TRX680FA Rincon [IRS]
2014 Honda SXS700M2 Pioneer 700
2014 Honda SXS700M4 Pioneer 700-4
2014 Honda TRX680FA Rincon [IRS]
2015 Honda SXS700M2 Pioneer 700
2015 Honda SXS700M4 Pioneer 700-4
2015 Honda TRX680FA Rincon [IRS]
2016 Honda SXS700M2 Pioneer 700
2016 Honda SXS700M4 Pioneer 700-4
2016 Honda TRX680FA Rincon [IRS]
2017 Honda SXS700M2 Pioneer 700
2017 Honda SXS700M2D Pioneer 700 Deluxe
2017 Honda SXS700M4 Pioneer 700-4
2017 Honda SXS700M4D Pioneer 700-4 Deluxe
2017 Honda TRX680FA Rincon [IRS]
2018 Honda SXS700M2 Pioneer 700
2018 Honda SXS700M2D Pioneer 700 Deluxe
2018 Honda SXS700M4 Pioneer 700-4
2018 Honda SXS700M4D Pioneer 700-4 Deluxe
2018 Honda TRX680FA Rincon [IRS]
2019 Honda SXS700M2 Pioneer 700
2019 Honda SXS700M2D Pioneer 700 Deluxe
2019 Honda SXS700M4 Pioneer 700-4
2019 Honda SXS700M4D Pioneer 700-4 Deluxe
2019 Honda TRX680FA Rincon [IRS]
2020 Honda SXS700M2 Pioneer 700
2020 Honda SXS700M2D Pioneer 700 Deluxe
2020 Honda SXS700M4 Pioneer 700-4
2020 Honda SXS700M4D Pioneer 700-4 Deluxe
2020 Honda TRX680FA Rincon [IRS]
2021 Honda SXS700M2 Pioneer 700
2021 Honda SXS700M2D Pioneer 700 Deluxe
2021 Honda SXS700M4 Pioneer 700-4
2021 Honda SXS700M4D Pioneer 700-4 Deluxe
2021 Honda TRX680FA Rincon [IRS]
2022 Honda SXS700M2 Pioneer 700
2022 Honda SXS700M2D Pioneer 700 Deluxe
2022 Honda SXS700M4 Pioneer 700-4
2022 Honda SXS700M4D Pioneer 700-4 Deluxe
2022 Honda TRX680FA Rincon [IRS]
2023 Honda SXS700M2 Pioneer 700
2023 Honda SXS700M2D Pioneer 700 Deluxe
2023 Honda SXS700M2FP Pioneer 700 Forest
2023 Honda SXS700M4 Pioneer 700-4
2023 Honda SXS700M4D Pioneer 700-4 Deluxe
2023 Honda SXS700M4DF Pioneer 700-4 Forest
2023 Honda TRX680FA Rincon [IRS]
2024 Honda SXS700M2 Pioneer 700
2024 Honda SXS700M2D Pioneer 700 Deluxe
2024 Honda SXS700M2FP Pioneer 700 Forest
2024 Honda SXS700M4 Pioneer 700-4
2024 Honda SXS700M4D Pioneer 700-4 Deluxe
2024 Honda SXS700M4DF Pioneer 700-4 Forest
