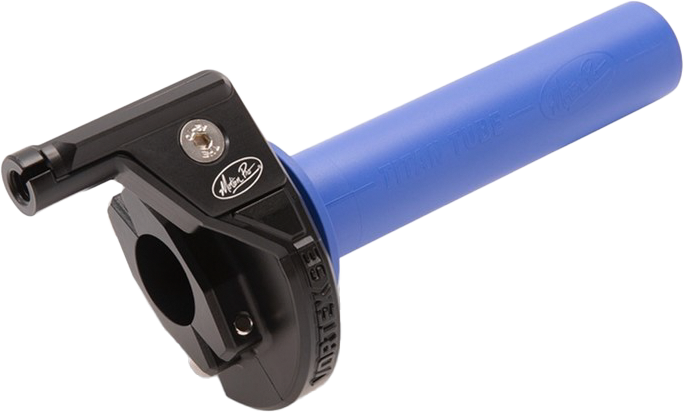

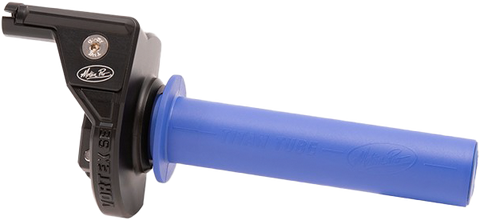

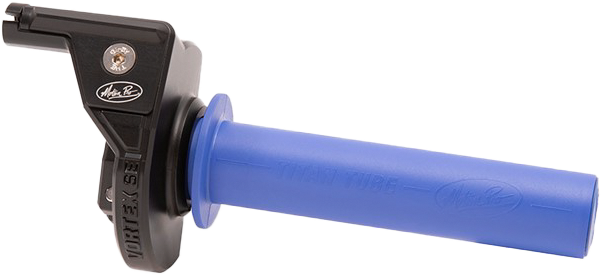

The Motion Pro Vortex SE Throttle Assembly is a redesigned, ultra-compact throttle control for motorcycles using 7/8-inch (22 mm) handlebars. Manufactured by Motion Pro and identified by manufacturer and vendor part number 01-2810, this assembly provides a smooth, responsive throttle feel while maximizing available handlebar space. It is designed to replace the original equipment throttle on many Japanese two-stroke motocross motorcycles.
Feature: The assembly uses a POM pulley with a brass bearing for smooth operation and improved wear resistance. Its die-cast aluminum housing, billet aluminum cover, and smooth black finish provide durable construction for demanding riding conditions. The included Motion Pro Titan Throttle Tube adds strength and durability, while the fast twist rate opens the throttle at 0.526 millimeters of cable pull per degree of rotation. Most compatible two-stroke motorcycles can reach full carburetor throttle in approximately 70 degrees of rotation, with up to 50 millimeters of cable pull at a maximum 95-degree twist.
Fitment includes Kawasaki KX125 and KX250 models from 1992 through 2005, Suzuki RM125 and RM250 models from 1995 through 2005, Yamaha YZ125 and YZ250 models from 1996 through 2010, and the 1997 Yamaha WR250Z when used with the stock throttle cables. It also fits the 1992-2001 Kawasaki KX250 applications listed for this product. For Honda CR125 models from 1993 through 2003, CR250 models from 1990 through 2004, and CR500 models from 1990 through 2001, use Motion Pro cable part number 70-1713. Special-application Motion Pro cables are available for other motorcycles.
The Motion Pro Vortex SE is compatible with Motion Pro DirtControl V2 and ODI V2 Lock-On grips using cam C. Verify motorcycle year, model, cable configuration, and grip compatibility before installation. Brand: Motion Pro. Manufacturer part number: 01-2810. Vendor part number: 70-2810.
Features:
- Redesigned and improved Motion Pro Vortex SE throttle assembly
- Ultra-compact design maximizes available handlebar space
- Fits 7/8-inch (22 mm) handlebars
- POM pulley with brass bearing for smooth operation and extended wear resistance
- Includes durable Motion Pro Titan Throttle Tube
- Die-cast aluminum construction with billet aluminum cover
- Smooth black painted finish
- Compatible with Motion Pro DirtControl V2 and ODI V2 Lock-On grips using cam C
- Replaces the original equipment throttle on many Japanese two-stroke motocross motorcycles
- Fits Kawasaki KX125 and KX250 models from 1992-2005 with stock throttle cables
- Fits Suzuki RM125 and RM250 models from 1995-2005 with stock throttle cables
- Fits Yamaha YZ125 and YZ250 models from 1996-2010 and Yamaha WR250Z from 1997 with stock throttle cables
- Requires Motion Pro cable part number 70-1713 for specified Honda CR125, CR250, and CR500 applications
- Fast twist rate provides 0.526 millimeters of cable pull per degree of rotation
- Reaches full throttle on most compatible two-stroke motorcycles in approximately 70 degrees of rotation
Fitment:
1992 Kawasaki KX125
1992 Kawasaki KX250
1993 Kawasaki KX125
1993 Kawasaki KX250
1994 Kawasaki KX125
1994 Kawasaki KX250
1995 Kawasaki KX125
1995 Kawasaki KX250
1995 Suzuki RM125
1995 Suzuki RM250
1996 Kawasaki KX125
1996 Kawasaki KX250
1996 Suzuki RM125
1996 Suzuki RM250
1996 Yamaha YZ125
1996 Yamaha YZ250
1997 Kawasaki KX125
1997 Kawasaki KX250
1997 Suzuki RM125
1997 Suzuki RM250
1997 Yamaha YZ125
1997 Yamaha YZ250
1998 Kawasaki KX125
1998 Kawasaki KX250
1998 Suzuki RM125
1998 Suzuki RM250
1998 Yamaha YZ125
1998 Yamaha YZ250
1999 Kawasaki KX125
1999 Kawasaki KX250
1999 Suzuki RM125
1999 Suzuki RM250
1999 Yamaha YZ125
1999 Yamaha YZ250
2000 Kawasaki KX125
2000 Kawasaki KX250
2000 Suzuki RM125
2000 Suzuki RM250
2000 Yamaha YZ125
2000 Yamaha YZ250
2001 Kawasaki KX125
2001 Kawasaki KX250
2001 Suzuki RM125
2001 Suzuki RM250
2001 Yamaha YZ125
2001 Yamaha YZ250
2002 Kawasaki KX125
2002 Kawasaki KX250
2002 Suzuki RM125
2002 Suzuki RM250
2002 Yamaha YZ125
2002 Yamaha YZ250
2003 Kawasaki KX125
2003 Kawasaki KX250
2003 Suzuki RM125
2003 Suzuki RM250
2003 Yamaha YZ125
2003 Yamaha YZ250
2004 Kawasaki KX125
2004 Kawasaki KX250
2004 Suzuki RM125
2004 Suzuki RM250
2004 Yamaha YZ125
2004 Yamaha YZ250
2005 Kawasaki KX125
2005 Kawasaki KX250
2005 Suzuki RM125
2005 Suzuki RM250
2005 Yamaha YZ125
2005 Yamaha YZ250
2006 Yamaha YZ125
2006 Yamaha YZ250
2007 Yamaha YZ125
2007 Yamaha YZ250
2008 Yamaha YZ125
2008 Yamaha YZ250
2009 Yamaha YZ125
2009 Yamaha YZ250
2010 Yamaha YZ125
2010 Yamaha YZ250
