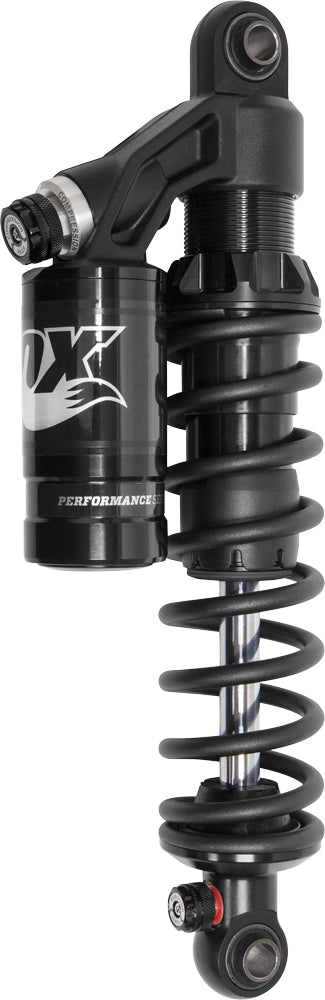

FOX RC-1 Rear Shocks for Harley-Davidson XL Models, 13.5-Inch, Part Number 897-27-017

The FOX RC-1 V-twin rear shocks are designed to maintain damping control throughout your ride. The internal floating piston is housed in an external reservoir to separate the shock oil from the nitrogen gas so they can never mix like stock shocks. The piggy back reservoir also has adjustments affecting the compression and rebound so you have all the controls you need to dial in the perfect ride.

Upgrade the suspension performance of your Harley-Davidson with FOX RC-1 V-Twin rear shocks. Designed for a 13.5-inch fitment, these gas-charged mono-tube shocks provide consistent damping control throughout the ride. The FOX internal floating piston (IFP) separates shock oil from nitrogen gas, preventing the two from mixing and helping maintain dependable performance under changing riding conditions.

The FOX RC-1 features an aluminum piggyback reservoir with independent compression and rebound adjustments, giving riders the ability to fine-tune ride quality and handling. The 24-position compression adjustment and 12-position rebound adjustment allow precise suspension setup, while spring preload guide marks simplify adjustment. The model-specific ride tune is engineered for compatible Harley-Davidson Sportster applications and is recommended for a total ride load of up to 240 pounds.

Built for long-term serviceability, each shock uses a 6061-T6 aluminum body with Type III hard anodizing, a low-friction super-finished hard chrome shaft, and advanced high-flow deflective-disc velocity-sensitive damping. The FOX RC-1 shocks are fully rebuildable and revalvable, making them a practical performance upgrade for riders seeking adjustable and maintainable rear suspension. This pair fits 2009-2010 Harley-Davidson XL883N Iron 883, 2011-2012 XR1200X, 2014-2017 XL1200T SuperLow Touring, and 2016-2017 XL1200CX Roadster models. Manufacturer part number: 897-27-017. Vendor part number: 897-27017.

Features:

• Fitment: Designed for compatible Harley-Davidson Sportster models with a 13.5-inch rear shock application
• Ride Tune: Model-specific optimized damping calibration
• Compression Adjustment: 24-position adjustment range
• Rebound Adjustment: 12-position adjustment range
• Reservoir: Aluminum piggyback reservoir for separated oil and nitrogen gas
• Shock Design: Gas-charged mono-tube construction with an internal floating piston
• Construction: 6061-T6 aluminum body with Type III hard anodized finish
• Serviceability: Fully rebuildable and revalvable design
• Damping: High-flow, deflective-disc velocity-sensitive damping system
• Shaft: 5/8-inch low-friction, super-finished hard chrome shaft
• Preload: Spring preload setting guide marks
• Finish: Matte black spring with black anodized preload ring
• Load Rating: Recommended for up to 240 pounds of total ride load
• Manufacturer Part Number: FOX 897-27-017
• Vendor Part Number: 897-27017

Fitment:
1988 Harley Davidson XLH1200 Sportster 1200
1988 Harley Davidson XLH883 Sportster 883
1988 Harley Davidson XLH883D Sportster 883 Deluxe
1988 Harley Davidson XLH883H Sportster 883 Hugger
1989 Harley Davidson XLH1200 Sportster 1200
1989 Harley Davidson XLH883 Sportster 883
1989 Harley Davidson XLH883D Sportster 883 Deluxe
1989 Harley Davidson XLH883H Sportster 883 Hugger
1990 Harley Davidson XLH1200 Sportster 1200
1990 Harley Davidson XLH883 Sportster 883
1990 Harley Davidson XLH883D Sportster 883 Deluxe
1990 Harley Davidson XLH883H Sportster 883 Hugger
1991 Harley Davidson XLH1200 Sportster 1200
1991 Harley Davidson XLH883 Sportster 883
1991 Harley Davidson XLH883D Sportster 883 Deluxe
1991 Harley Davidson XLH883H Sportster 883 Hugger
1992 Harley Davidson XLH1200 Sportster 1200
1992 Harley Davidson XLH883 Sportster 883
1992 Harley Davidson XLH883D Sportster 883 Deluxe
1992 Harley Davidson XLH883H Sportster 883 Hugger
1993 Harley Davidson XLH1200 Sportster 1200
1993 Harley Davidson XLH883 Sportster 883
1993 Harley Davidson XLH883D Sportster 883 Deluxe
1993 Harley Davidson XLH883H Sportster 883 Hugger
1994 Harley Davidson XL883D Sportster 883 Deluxe
1994 Harley Davidson XLH1200 Sportster 1200
1994 Harley Davidson XLH883 Sportster 883
1994 Harley Davidson XLH883D Sportster 883 Deluxe
1994 Harley Davidson XLH883H Sportster 883 Hugger
1995 Harley Davidson XL883D Sportster 883 Deluxe
1995 Harley Davidson XLH1200 Sportster 1200
1995 Harley Davidson XLH883 Sportster 883
1995 Harley Davidson XLH883D Sportster 883 Deluxe
1995 Harley Davidson XLH883H Sportster 883 Hugger
1996 Harley Davidson XL1200C Sportster 1200 Custom
1996 Harley Davidson XL1200S Sportster Sport
1996 Harley Davidson XLH1200 Sportster 1200
1996 Harley Davidson XLH883 Sportster 883
1996 Harley Davidson XLH883H Sportster 883 Hugger
1997 Harley Davidson XL1200C Sportster 1200 Custom
1997 Harley Davidson XL1200S Sportster Sport
1997 Harley Davidson XLH1200 Sportster 1200
1997 Harley Davidson XLH883 Sportster 883
1997 Harley Davidson XLH883H Sportster 883 Hugger
1998 Harley Davidson XL1200C Sportster 1200 Custom
1998 Harley Davidson XL1200S Sportster Sport
1998 Harley Davidson XLH1200 Sportster 1200
1998 Harley Davidson XLH883 Sportster 883
1998 Harley Davidson XLH883H Sportster 883 Hugger
1999 Harley Davidson XL1200C Sportster 1200 Custom
1999 Harley Davidson XL1200S Sportster Sport
1999 Harley Davidson XL883C Sportster 883 Custom
1999 Harley Davidson XLH1200 Sportster 1200
1999 Harley Davidson XLH883 Sportster 883
1999 Harley Davidson XLH883H Sportster 883 Hugger
2000 Harley Davidson XL1200C Sportster 1200 Custom
2000 Harley Davidson XL1200S Sportster Sport
2000 Harley Davidson XL883C Sportster 883 Custom
2000 Harley Davidson XLH1200 Sportster 1200
2000 Harley Davidson XLH883 Sportster 883
2000 Harley Davidson XLH883H Sportster 883 Hugger
2001 Harley Davidson XL1200C Sportster 1200 Custom
2001 Harley Davidson XL1200S Sportster Sport
2001 Harley Davidson XL883C Sportster 883 Custom
2001 Harley Davidson XLH1200 Sportster 1200
2001 Harley Davidson XLH883 Sportster 883
2001 Harley Davidson XLH883H Sportster 883 Hugger
2002 Harley Davidson XL1200C Sportster 1200 Custom
2002 Harley Davidson XL1200S Sportster Sport
2002 Harley Davidson XL883C Sportster 883 Custom
2002 Harley Davidson XL883R 883 Roadster
2002 Harley Davidson XLH1200 Sportster 1200
2002 Harley Davidson XLH883 Sportster 883
2002 Harley Davidson XLH883H Sportster 883 Hugger
2003 Harley Davidson XL1200C Sportster 1200 Custom
2003 Harley Davidson XL1200S Sportster Sport
2003 Harley Davidson XL883C Sportster 883 Custom
2003 Harley Davidson XL883R 883 Roadster
2003 Harley Davidson XLH1200 Sportster 1200
2003 Harley Davidson XLH883 Sportster 883
2003 Harley Davidson XLH883H Sportster 883 Hugger
2004 Harley Davidson XL1200C Sportster 1200 Custom
2004 Harley Davidson XL1200R Roadster
2004 Harley Davidson XL883 Sportster 883
2004 Harley Davidson XL883C Sportster 883 Custom
2005 Harley Davidson XL1200C Sportster 1200 Custom
2005 Harley Davidson XL1200R Roadster
2005 Harley Davidson XL883 Sportster 883
2005 Harley Davidson XL883C Sportster 883 Custom
2005 Harley Davidson XL883L Super Low
2005 Harley Davidson XL883R 883 Roadster
2006 Harley Davidson XL1200C Sportster 1200 Custom
2006 Harley Davidson XL1200L Sportster 1200 Low
2006 Harley Davidson XL1200R Roadster
2006 Harley Davidson XL883 Sportster 883
2006 Harley Davidson XL883C Sportster 883 Custom
2006 Harley Davidson XL883L Super Low
2006 Harley Davidson XL883R 883 Roadster
2007 Harley Davidson XL1200C Sportster 1200 Custom
2007 Harley Davidson XL1200L Sportster 1200 Low
2007 Harley Davidson XL1200N Nightster
2007 Harley Davidson XL1200R Roadster
2007 Harley Davidson XL883 Sportster 883
2007 Harley Davidson XL883C Sportster 883 Custom
2007 Harley Davidson XL883L Super Low
2007 Harley Davidson XL883R 883 Roadster
2008 Harley Davidson XL1200C Sportster 1200 Custom
2008 Harley Davidson XL1200L Sportster 1200 Low
2008 Harley Davidson XL1200N Nightster
2008 Harley Davidson XL1200R Roadster
2008 Harley Davidson XL883 Sportster 883
2008 Harley Davidson XL883C Sportster 883 Custom
2008 Harley Davidson XL883L Super Low
2009 Harley Davidson XL1200C Sportster 1200 Custom
2009 Harley Davidson XL1200L Sportster 1200 Low
2009 Harley Davidson XL1200N Nightster
2009 Harley Davidson XL883C Sportster 883 Custom
2009 Harley Davidson XL883L Super Low
2009 Harley Davidson XL883N Iron 883
2009 Harley Davidson XR1200
2010 Harley Davidson XL1200C Sportster 1200 Custom
2010 Harley Davidson XL1200L Sportster 1200 Low
2010 Harley Davidson XL1200N Nightster
2010 Harley Davidson XL1200X Forty-Eight
2010 Harley Davidson XL883L Super Low
2010 Harley Davidson XL883N Iron 883
2010 Harley Davidson XR1200
2011 Harley Davidson XL1200C Sportster 1200 Custom
2011 Harley Davidson XL1200L Sportster 1200 Low
2011 Harley Davidson XL1200N Nightster
2011 Harley Davidson XL1200X Forty-Eight
2011 Harley Davidson XL883L Super Low
2011 Harley Davidson XL883N Iron 883
2011 Harley Davidson XR1200X
2012 Harley Davidson XL1200C Sportster 1200 Custom
2012 Harley Davidson XL1200N Nightster
2012 Harley Davidson XL1200V Seventy Two
2012 Harley Davidson XL1200X Forty-Eight
2012 Harley Davidson XL883L Super Low
2012 Harley Davidson XL883N Iron 883
2012 Harley Davidson XR1200X
2013 Harley Davidson XL1200C Sportster 1200 Custom
2013 Harley Davidson XL1200V Seventy Two
2013 Harley Davidson XL1200X Forty-Eight
2013 Harley Davidson XL883L Super Low
2013 Harley Davidson XL883N Iron 883
2014 Harley Davidson XL1200C Sportster 1200 Custom
2014 Harley Davidson XL1200T Super Low Touring
2014 Harley Davidson XL1200V Seventy Two
2014 Harley Davidson XL1200X Forty-Eight
2014 Harley Davidson XL883L Super Low
2014 Harley Davidson XL883N Iron 883
2015 Harley Davidson XL1200C Sportster 1200 Custom
2015 Harley Davidson XL1200T Super Low Touring
2015 Harley Davidson XL1200V Seventy Two
2015 Harley Davidson XL1200X Forty-Eight
2015 Harley Davidson XL883L Super Low
2015 Harley Davidson XL883N Iron 883
2016 Harley Davidson XL1200C Sportster 1200 Custom
2016 Harley Davidson XL1200CX Roadster
2016 Harley Davidson XL1200T Super Low Touring
2016 Harley Davidson XL1200V Seventy Two
2016 Harley Davidson XL1200X Forty-Eight
2016 Harley Davidson XL883L Super Low
2016 Harley Davidson XL883N Iron 883
2017 Harley Davidson XL1200C Sportster 1200 Custom
2017 Harley Davidson XL1200CX Roadster
2017 Harley Davidson XL1200T Super Low Touring
2017 Harley Davidson XL1200X Forty-Eight
2017 Harley Davidson XL883L Super Low
2017 Harley Davidson XL883N Iron 883
2018 Harley Davidson XL1200C Sportster 1200 Custom
2018 Harley Davidson XL1200CX Roadster
2018 Harley Davidson XL1200NS Iron 1200
2018 Harley Davidson XL1200X Forty-Eight
2018 Harley Davidson XL1200XS Forty Eight Special
2018 Harley Davidson XL883L Super Low
2018 Harley Davidson XL883N Iron 883
2019 Harley Davidson XL1200C Sportster 1200 Custom
2019 Harley Davidson XL1200CX Roadster
2019 Harley Davidson XL1200NS Iron 1200
2019 Harley Davidson XL1200X Forty-Eight
2019 Harley Davidson XL1200XS Forty Eight Special
2019 Harley Davidson XL883L Super Low
2019 Harley Davidson XL883N Iron 883
2020 Harley Davidson XL1200CX Roadster
2020 Harley Davidson XL1200NS Iron 1200
2020 Harley Davidson XL1200X Forty-Eight
2020 Harley Davidson XL883N Iron 883
