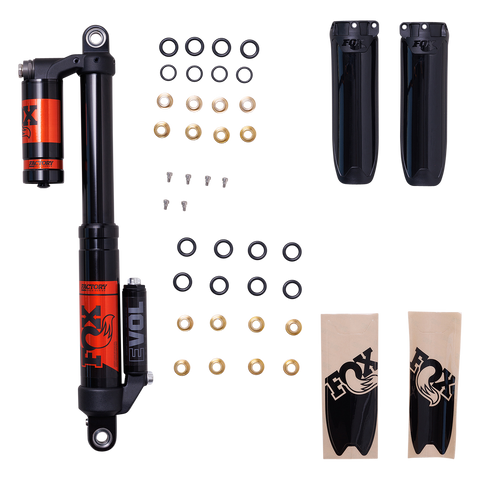

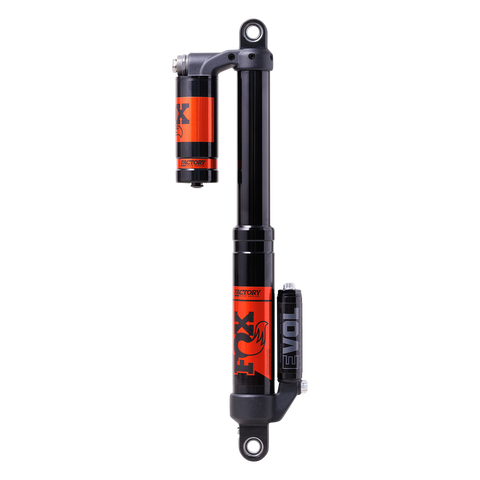

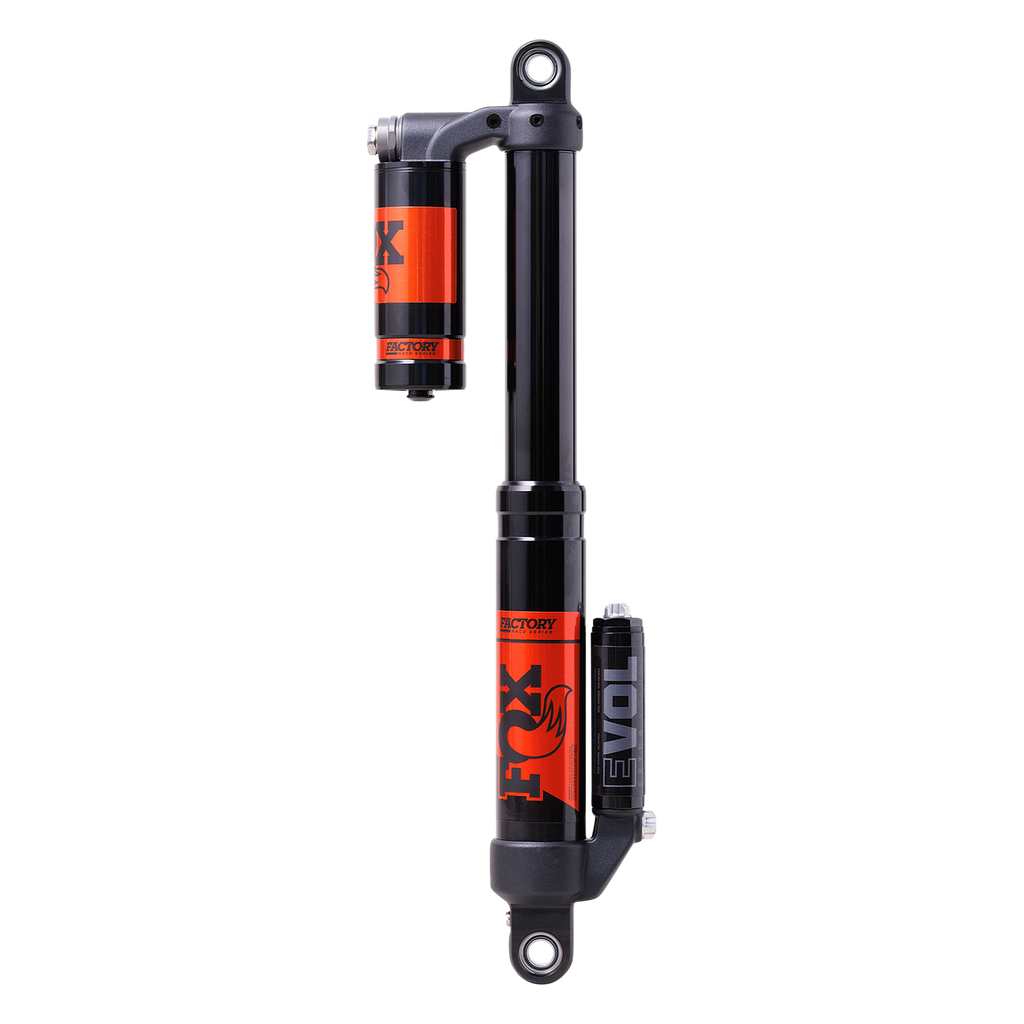

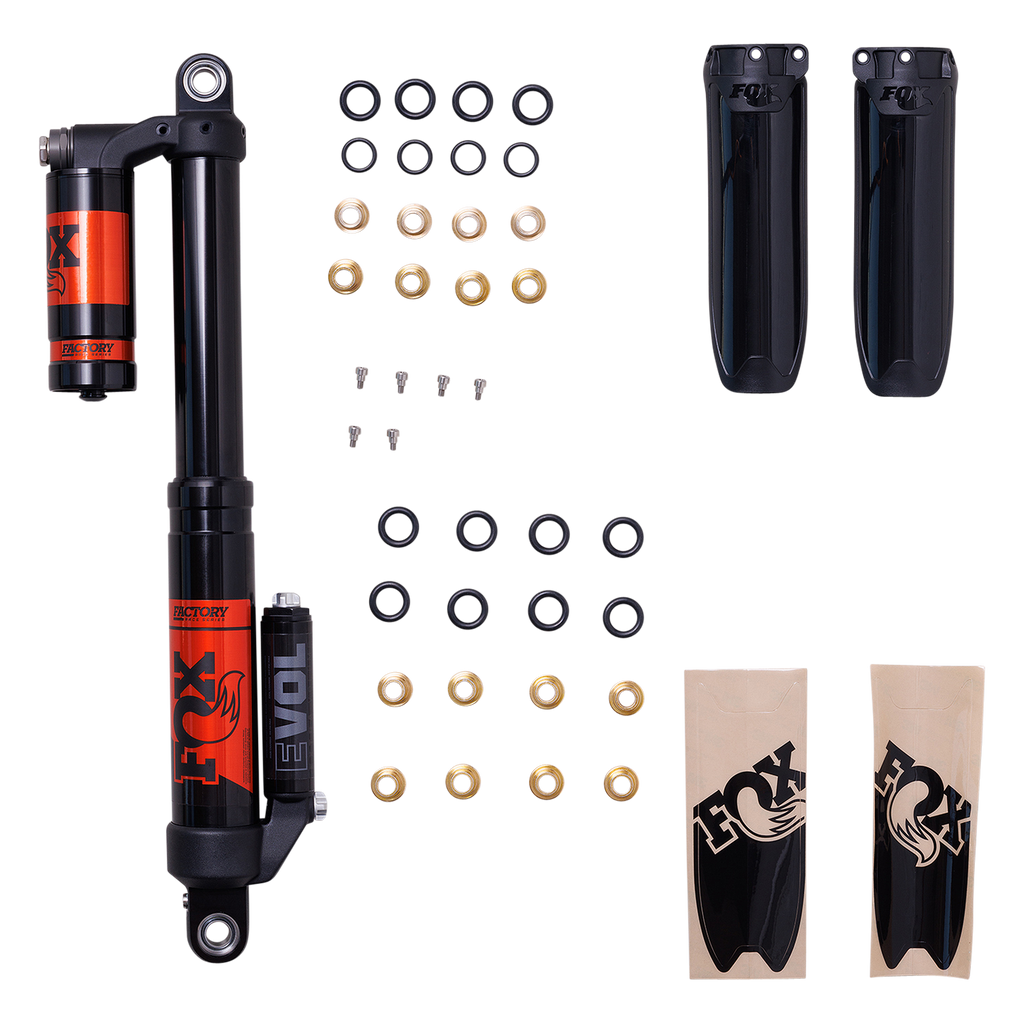

Upgrade the front suspension of your sport ATV with the FOX Float 3 EVOL RC2 Shock Kit, manufacturer part number 830-24-237 and vendor part number 535-9432. Designed for race and sport applications, this lightweight air-sprung system is built specifically for the 2007–2016 Yamaha YFM700RSE Raptor SE. Its adjustable performance helps riders optimize handling, control, and bottoming resistance across changing terrain and riding conditions.
The FOX Float 3 EVOL RC2 features external rebound adjustment along with high- and low-speed compression adjustment for precise suspension tuning. The independently adjustable MAIN and EVOL air chambers allow riders to control spring rate through the stroke, fine-tune roll and cornering response, and manage bottom-out resistance. Race-proven velocity-sensitive damping technology is custom-tuned for the intended application, while the chrome-silicon negative spring improves compliance over small, repetitive impacts.
Built for durability and serviceability, the shock kit uses precision-manufactured damping pistons, aerospace-grade PTFE-lined spherical bearings, and anodized internal floating piston and bearing housing components. The 6061-T6 aluminum bodies, air sleeves, reservoirs, and piggyback caps help reduce weight, while genuine Kashima coating provides a smooth operating feel and excellent wear resistance. FOX Samurai Sealing System technology helps keep dirt, mud, and debris away from the seals while maintaining low friction. The shocks are fully rebuildable and serviceable for long-term use.
Fitment includes 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, and 2016 Yamaha YFM700RSE Raptor SE models. This FOX front shock kit is an application-specific replacement and performance upgrade for riders seeking adjustable, race-ready suspension performance.
Features:
- ATV Type: Sport and race applications
- Fitment: 2007–2016 Yamaha YFM700RSE Raptor SE
- Spring Type: Adjustable air spring system
- Suspension Adjustment: External rebound adjustment for controlled shock return
- Compression Adjustment: High- and low-speed compression adjuster with an expanded tuning range
- Air Chambers: Adjustable MAIN and EVOL chambers for progressive spring rate and bottom-out control
- Negative Spring: Chrome-silicon design for improved small-bump compliance
- Damping Technology: Race-proven velocity-sensitive damping with application-specific valving
- Construction: 6061-T6 aluminum bodies, air sleeves, reservoir components, and piggyback caps
- Coating: Genuine Kashima coating for smooth operation and enhanced durability
- Sealing: FOX Samurai Sealing System helps reduce friction and protect against dirt and debris
- Bearings: Aerospace-grade PTFE-lined spherical bearings
- Serviceability: Fully rebuildable and serviceable
- Brand: FOX
- Manufacturer Part Number: 830-24-237
- Vendor Part Number: 535-9432
Fitment:
2001 Yamaha YFM660R Raptor
2002 Yamaha YFM660R Raptor
2003 Yamaha YFM660R Raptor
2004 Yamaha YFM660R Raptor
2004 Yamaha YFZ450
2005 Yamaha YFM660R Raptor
2005 Yamaha YFZ450
2006 Yamaha YFM700R Raptor
2006 Yamaha YFZ450
2006 Yamaha YFZ450 Bill Balance Edition
2007 Yamaha YFM700R Raptor
2007 Yamaha YFM700RSE Raptor SE
2007 Yamaha YFM700RY Raptor GYTR Edition
2007 Yamaha YFZ450
2007 Yamaha YFZ450 Bill Balance Edition
2007 Yamaha YFZ450 SE
2008 Yamaha YFM700R Raptor
2008 Yamaha YFM700RSE Raptor SE
2008 Yamaha YFZ450
2008 Yamaha YFZ450 SE
2009 Yamaha YFM700R Raptor
2009 Yamaha YFM700RSE Raptor SE
2010 Yamaha YFM700RSE Raptor SE
2011 Yamaha YFM700R Raptor
2011 Yamaha YFM700RSE Raptor SE
2012 Yamaha YFM700R Raptor
2012 Yamaha YFM700RSE Raptor SE
2012 Yamaha YFZ450
2013 Yamaha YFM700R Raptor
2013 Yamaha YFM700RSE Raptor SE
2013 Yamaha YFZ450
2014 Yamaha YFM700R Raptor
2014 Yamaha YFM700RSE Raptor SE
2015 Yamaha YFM700R Raptor
2015 Yamaha YFM700RSE Raptor SE
2016 Yamaha YFM700R Raptor
2016 Yamaha YFM700RSE Raptor SE
2017 Yamaha YFM700R Raptor
2017 Yamaha YFM700RSE Raptor SE
2018 Yamaha YFM700R Raptor
2018 Yamaha YFM700RSE Raptor SE
