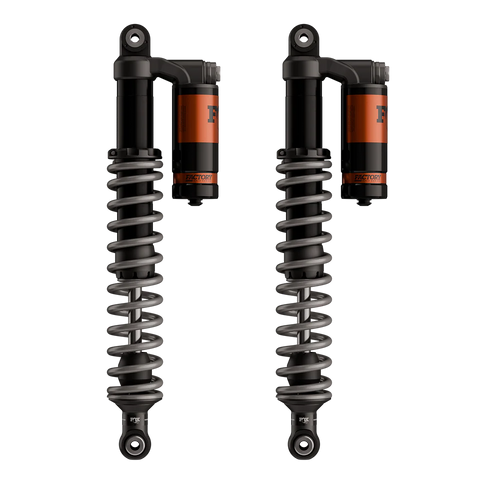

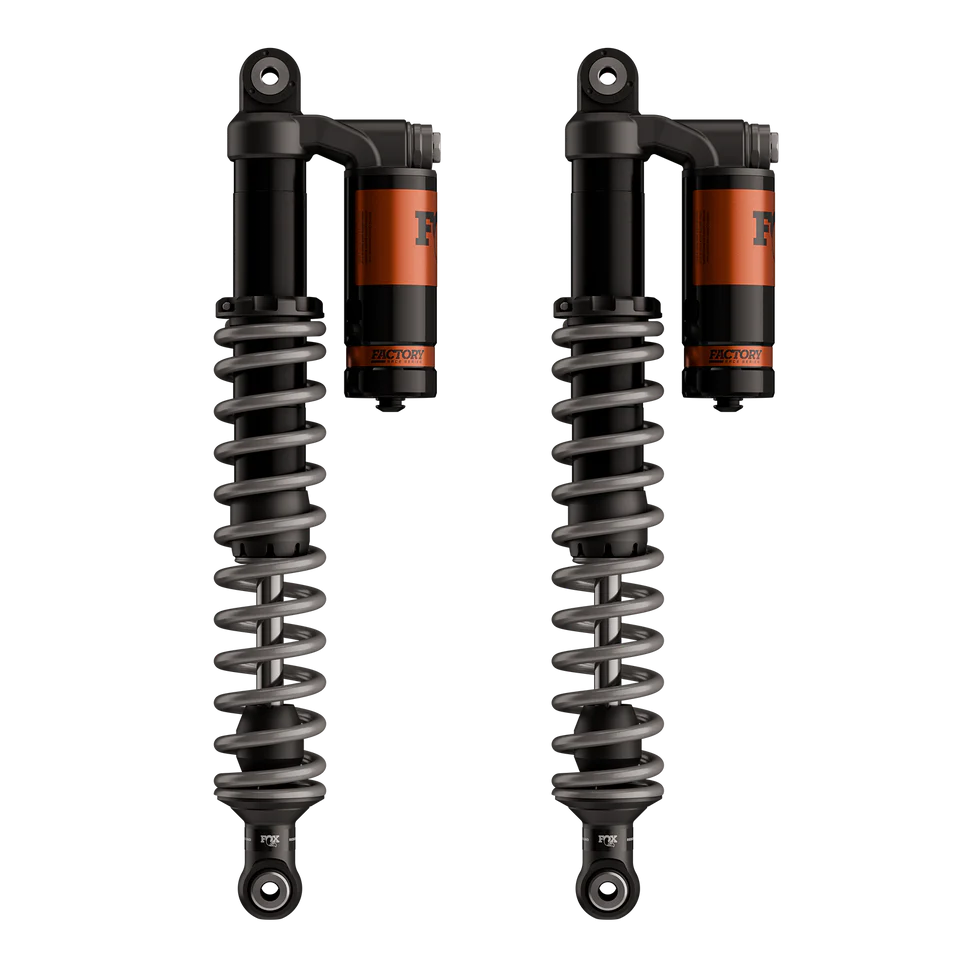

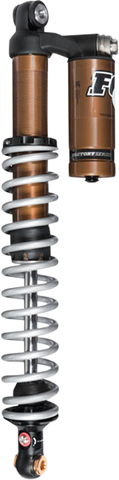

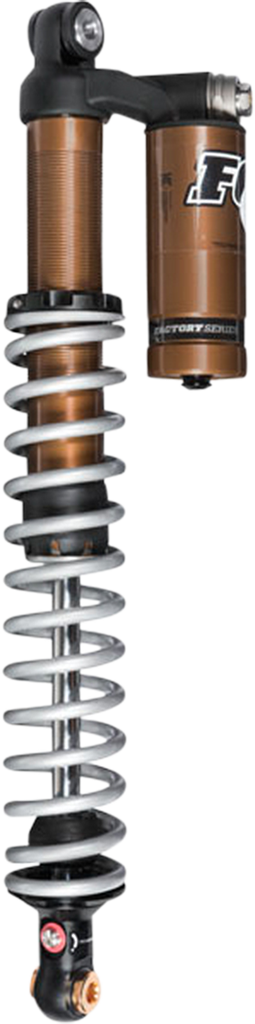

The FOX 1.5 Podium RC2 Utility ATV Shock is a high-performance suspension upgrade engineered for select 2017 Can-Am Outlander models with independent rear suspension. Manufacturer part number 831-27-117 and vendor part number 831-27-117 identify this FOX shock assembly, which is designed to improve control, ride quality, and damping consistency across demanding utility, trail, and recreational applications. The shock features a 2.0-inch Kashima-coated 6061-T6 aluminum body, a 5/8-inch hard-chromed shaft, and a remote oil reservoir for reliable performance during extended use.
FOX combines advanced high-flow, velocity-sensitive damping with precision-manufactured damping pistons to provide consistent oil flow and controlled suspension movement. The new high- and low-speed compression adjuster offers an expanded adjustment range, allowing riders to fine-tune the shock for terrain, load, and riding style. A custom spring rate is selected based on rider weight and riding category, while application-specific position-sensitive damping adds comfort near the end of the travel. The 2.25-inch inside-diameter lightweight race spring is available in a dual- or single-rate configuration according to application requirements.
Durability-focused components include aerospace-grade PTFE-lined spherical bearings, anodized internal floating piston and bearing housing components, 6061-T6 forged aluminum body caps and eyelets, a hard-chromed shaft, and an ultra-durable bottom-out bumper. The genuine Kashima coating supports a smooth operating feel and helps resist wear. The shock is fully rebuildable and serviceable, and its new swivel hose design improves oil flow while simplifying installation.
Fitment includes 2017 Can-Am Outlander 1000 6X6 XT with IRS, Outlander 1000 DPS with IRS, Outlander 1000 XMR with IRS, Outlander 1000 XT with IRS, Outlander 1000 XT-P with IRS, Outlander 650 with IRS, Outlander 650 6x6 DPS with IRS, Outlander 650 DPS with IRS, Outlander 650 XMR with IRS, and Outlander 650 XT with IRS. Verify the model and suspension configuration before installation.
Features:
- Aerospace-grade PTFE-lined spherical bearings maximize durability and reduce friction at the mounting points.
- Anodized internal floating piston and bearing housing help prevent oil contamination and extend seal service life.
- Advanced high-flow, velocity-sensitive damping improves suspension control and response.
- Custom spring rate is selected for rider weight and riding category.
- Fully rebuildable and serviceable design supports long-term maintenance.
- High- and low-speed compression adjuster provides an expanded tuning range.
- Precision-manufactured damping pistons promote consistent damping and optimized oil flow.
- Genuine Kashima coating delivers a smooth operating feel and high wear resistance.
- 6061-T6 forged aluminum body caps and eyelets provide lightweight structural strength.
- Ultra-durable bottom-out bumper helps control harsh end-of-travel impacts.
- 2.0-inch Kashima-coated 6061-T6 aluminum body balances durability and weight.
- 5/8-inch hard-chromed shaft resists wear and corrosion.
- 2.25-inch inside-diameter lightweight race spring is available in application-specific dual- or single-rate configurations.
- Application-specific position-sensitive damping adds comfort near the end of the travel.
- Swivel hose design improves oil flow and simplifies installation.
- Remote oil reservoir helps manage damping performance during extended riding.
Fitment:
2013 Can-Am Outlander 1000 DPS [IRS]
2013 Can-Am Outlander 1000 XMR [IRS]
2013 Can-Am Outlander 1000 XT [IRS]
2013 Can-Am Outlander 1000 XT-P [IRS]
2013 Can-Am Outlander 500
2013 Can-Am Outlander 500 DPS
2013 Can-Am Outlander 500 XT
2013 Can-Am Outlander 650 DPS [IRS]
2013 Can-Am Outlander 650 XMR [IRS]
2013 Can-Am Outlander 650 XT [IRS]
2013 Can-Am Outlander 650 [IRS]
2013 Can-Am Renegade 1000 XXC [IRS]
2013 Can-Am Renegade 1000 [IRS]
2013 Can-Am Renegade 500 [IRS]
2014 Can-Am Outlander 1000 DPS [IRS]
2014 Can-Am Outlander 1000 XMR [IRS]
2014 Can-Am Outlander 1000 XT [IRS]
2014 Can-Am Outlander 1000 XT-P [IRS]
2014 Can-Am Outlander 500
2014 Can-Am Outlander 500 DPS
2014 Can-Am Outlander 500 XT
2014 Can-Am Outlander 650 DPS [IRS]
2014 Can-Am Outlander 650 XMR [IRS]
2014 Can-Am Outlander 650 XT [IRS]
2014 Can-Am Outlander 650 [IRS]
2014 Can-Am Renegade 1000 XXC [IRS]
2014 Can-Am Renegade 1000 [IRS]
2014 Can-Am Renegade 500 [IRS]
2015 Can-Am Outlander 1000 6X6 XT [IRS]
2015 Can-Am Outlander 1000 DPS [IRS]
2015 Can-Am Outlander 1000 XMR [IRS]
2015 Can-Am Outlander 1000 XT [IRS]
2015 Can-Am Outlander 1000 XT-P [IRS]
2015 Can-Am Outlander 500 DPS
2015 Can-Am Outlander 500 XT
2015 Can-Am Outlander 650 6X6 XT [IRS]
2015 Can-Am Outlander 650 DPS [IRS]
2015 Can-Am Outlander 650 XMR [IRS]
2015 Can-Am Outlander 650 XT [IRS]
2015 Can-Am Outlander 650 [IRS]
2015 Can-Am Renegade 1000 XXC [IRS]
2015 Can-Am Renegade 1000 [IRS]
2015 Can-Am Renegade 500 [IRS]
2016 Can-Am Outlander 1000 6X6 XT [IRS]
2016 Can-Am Outlander 1000 DPS [IRS]
2016 Can-Am Outlander 1000 XMR [IRS]
2016 Can-Am Outlander 1000 XT [IRS]
2016 Can-Am Outlander 1000 XT-P [IRS]
2016 Can-Am Outlander 650 6X6 XT [IRS]
2016 Can-Am Outlander 650 DPS [IRS]
2016 Can-Am Outlander 650 XMR [IRS]
2016 Can-Am Outlander 650 XT [IRS]
2016 Can-Am Outlander 650 [IRS]
2016 Can-Am Outlander 850 DPS [IRS]
2016 Can-Am Outlander 850 XMR [IRS]
2016 Can-Am Outlander 850 XT [IRS]
2016 Can-Am Outlander 850 XT-P [IRS]
2016 Can-Am Renegade 1000 XXC [IRS]
2016 Can-Am Renegade 1000 [IRS]
2016 Can-Am Renegade 1000R XMR [IRS]
2016 Can-Am Renegade 850 XXC [IRS]
2016 Can-Am Renegade 850 [IRS]
2017 Can-Am Outlander 1000 6X6 XT [IRS]
2017 Can-Am Outlander 1000 DPS [IRS]
2017 Can-Am Outlander 1000 XMR [IRS]
2017 Can-Am Outlander 1000 XT [IRS]
2017 Can-Am Outlander 1000 XT-P [IRS]
2017 Can-Am Outlander 1000R Mossy Oak Hunting Edition
2017 Can-Am Outlander 650 6x6 DPS [IRS]
2017 Can-Am Outlander 650 DPS [IRS]
2017 Can-Am Outlander 650 XMR [IRS]
2017 Can-Am Outlander 650 XT [IRS]
2017 Can-Am Outlander 650 [IRS]
2017 Can-Am Outlander 850 DPS [IRS]
2017 Can-Am Outlander 850 XMR [IRS]
2017 Can-Am Outlander 850 XT [IRS]
2017 Can-Am Outlander 850 XT-P [IRS]
2017 Can-Am Renegade 1000 XXC [IRS]
2017 Can-Am Renegade 1000 [IRS]
2017 Can-Am Renegade 1000R XMR [IRS]
2017 Can-Am Renegade 850 XXC [IRS]
2017 Can-Am Renegade 850 [IRS]
2018 Can-Am Outlander 1000 6X6 XT [IRS]
2018 Can-Am Outlander 1000 DPS [IRS]
2018 Can-Am Outlander 1000 XMR [IRS]
2018 Can-Am Outlander 1000 XT [IRS]
2018 Can-Am Outlander 1000 XT-P [IRS]
2018 Can-Am Outlander 1000R Mossy Oak Hunting Edition
2018 Can-Am Outlander 1000R XXC [IRS]
2018 Can-Am Outlander 650 6x6 DPS [IRS]
2018 Can-Am Outlander 650 DPS [IRS]
2018 Can-Am Outlander 650 North Edition [IRS]
2018 Can-Am Outlander 650 XMR [IRS]
2018 Can-Am Outlander 650 XT [IRS]
2018 Can-Am Outlander 650 [IRS]
2018 Can-Am Outlander 850 DPS [IRS]
2018 Can-Am Outlander 850 North Edition [IRS]
2018 Can-Am Outlander 850 XMR [IRS]
2018 Can-Am Outlander 850 XT [IRS]
2018 Can-Am Outlander 850 XT-P [IRS]
2018 Can-Am Renegade 1000 XXC [IRS]
2018 Can-Am Renegade 1000 [IRS]
2018 Can-Am Renegade 1000R XMR [IRS]
2018 Can-Am Renegade 850 XXC [IRS]
2018 Can-Am Renegade 850 [IRS]
