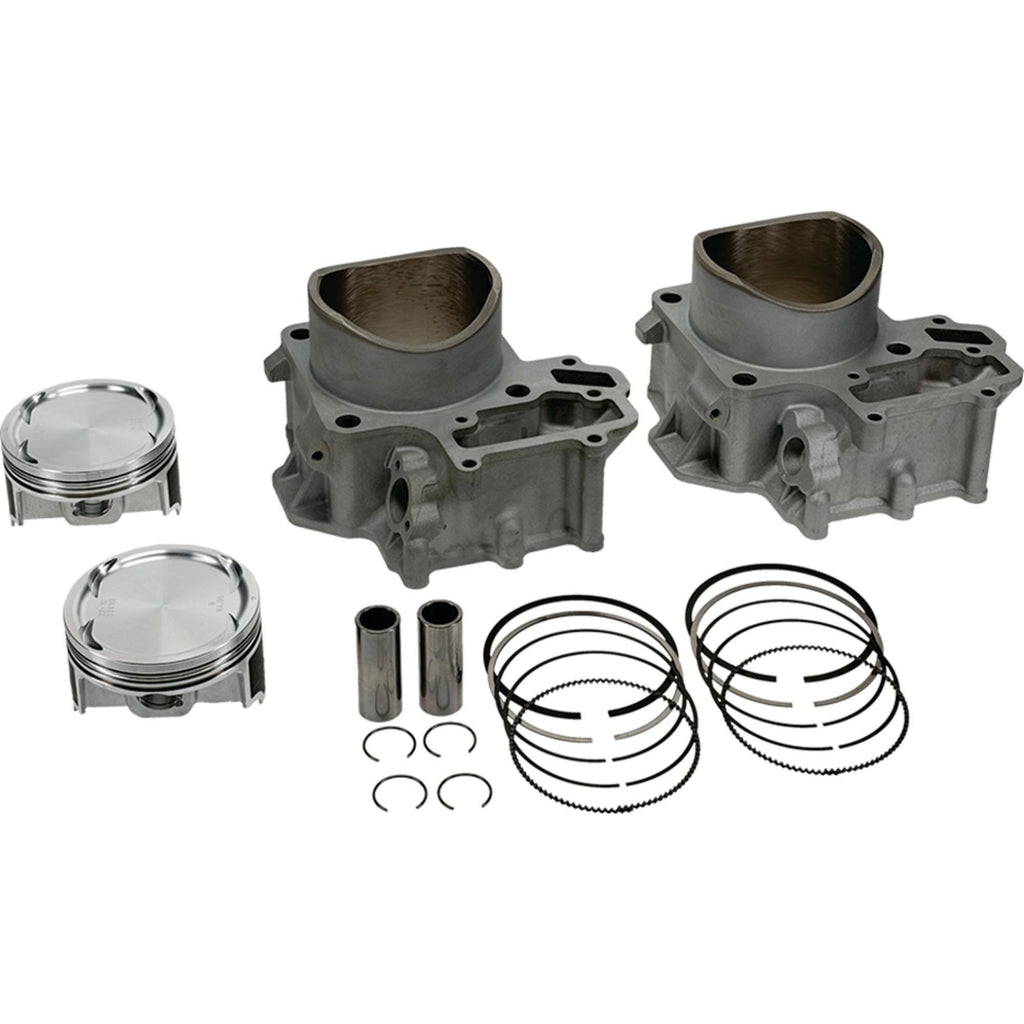

Upgrade the top end of your Kawasaki KRT 750 Teryx4 with the Cylinder Works CW30013K04HC high-compression cylinder kit. Designed as a standard-bore replacement for select 2012–2013 Kawasaki Teryx4 750 models, this complete kit includes the cylinder, matched piston kit, and required gaskets for a streamlined installation. The 11.5:1 compression ratio is engineered to support strong engine performance while maintaining dependable operation for recreational and utility use.
The Cylinder Works cylinder is designed to retain a stock-style appearance while using nickel silicon carbide plating for improved durability, heat control, and extended service life. The included Vertex piston is matched to the cylinder to promote consistent performance, long-term reliability, and reduced engine noise. Because this is a standard-bore replacement kit, no machine work is required when the engine is within the appropriate specifications and installation procedures are followed.
Fitment includes 2012 and 2013 Kawasaki KRT 750 Teryx4 4X4, Teryx4 4X4 EPS, and Teryx4 4X4 EPS LE models. The top-end gasket kit is included but does not contain valve stem seals. Replacement pistons, gaskets, and ring sets are available separately for future servicing. Verify the vehicle model, engine condition, and compression requirements before installation. Manufacturer part number: CW30013K04HC. Vendor part number: 422-30013KH4.
Features:
- Complete standard-bore high-compression cylinder kit
- 11.5:1 compression ratio for enhanced engine performance
- Includes cylinder, matched Vertex piston kit, and gaskets
- Nickel silicon carbide-plated cylinder supports long service life and durability
- Stock-style cylinder appearance
- Standard-bore replacement requires no machine work when engine specifications are suitable
- Matched piston and cylinder help promote longevity, performance, and reduced engine noise
- Replacement pistons, gaskets, and ring sets are available separately
- Top-end gasket kit does not include valve stem seals
- Fits 2012–2013 Kawasaki KRT 750 Teryx4 4X4, 4X4 EPS, and 4X4 EPS LE models
Fitment:
2012 Kawasaki KRT 750 Teryx4 4X4
2012 Kawasaki KRT 750 Teryx4 4X4 EPS
2012 Kawasaki KRT 750 Teryx4 4X4 EPS LE
2013 Kawasaki KRT 750 Teryx4 4X4
2013 Kawasaki KRT 750 Teryx4 4X4 EPS
2013 Kawasaki KRT 750 Teryx4 4X4 EPS LE
