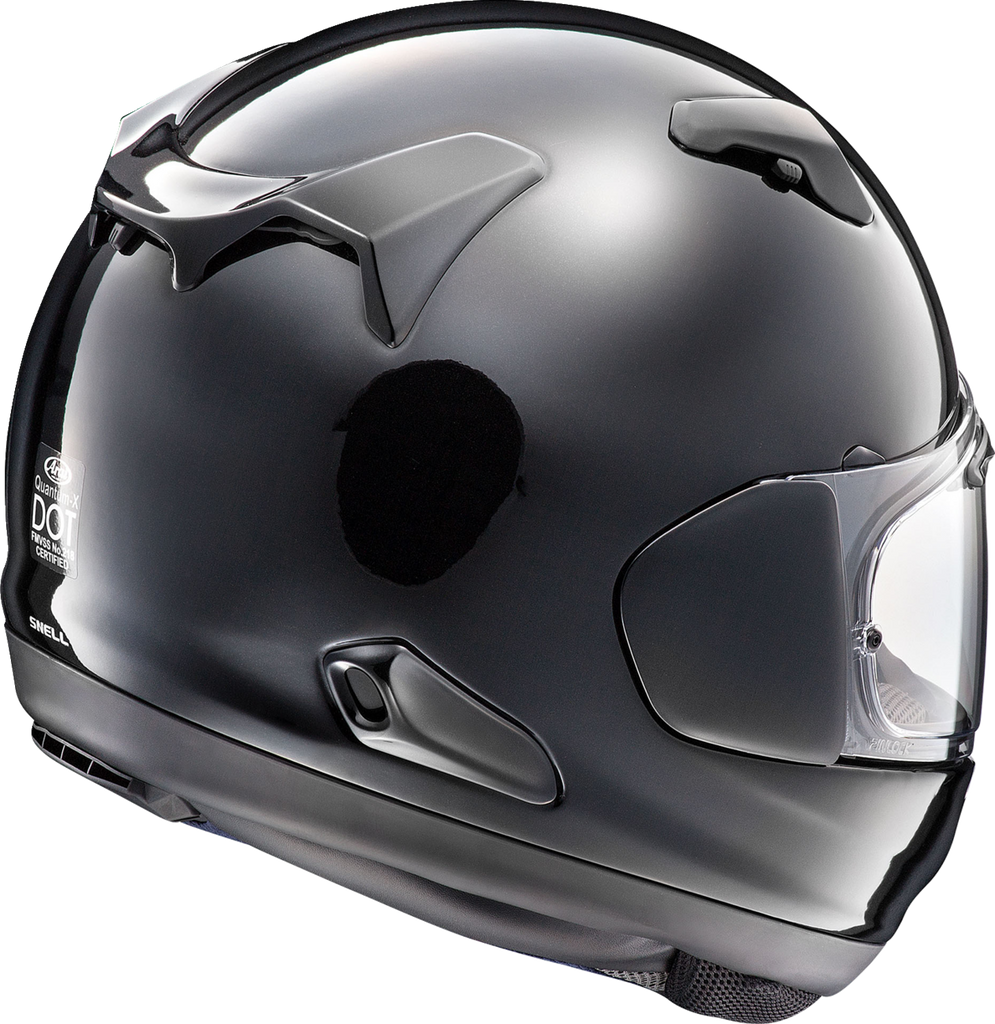

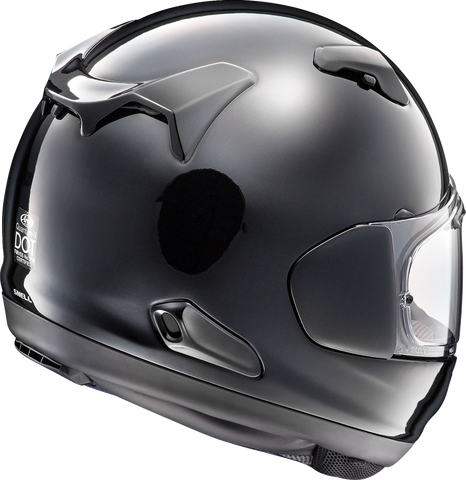

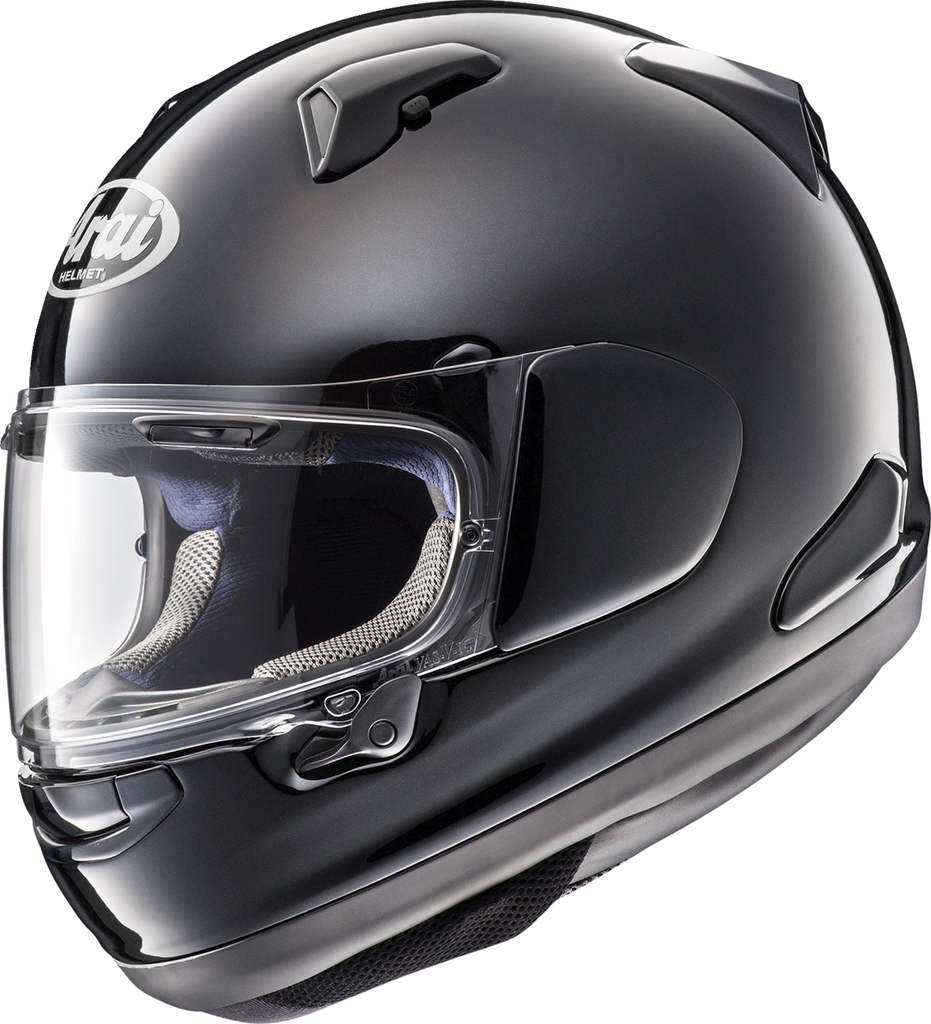

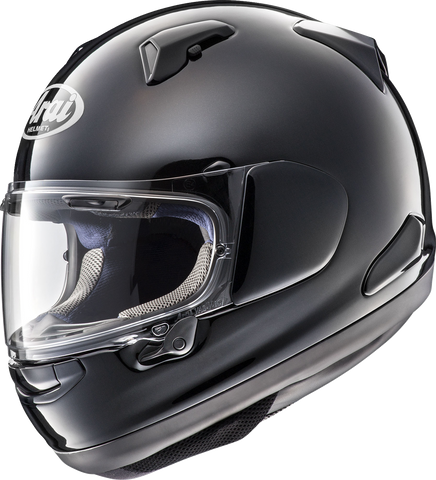

The ARAI HELMETS Quantum-X Helmet in Diamond Black, size 2XL, features a round-oval shape designed for riders whose heads are slightly wider rather than elongated. Its interior head liner uses thicker front and rear pads with thinner side pads to support this head shape. Manufacturer part number: 0101-18174. Vendor part number: 0101-18174.
The helmet uses ARAI’s Variable Axis System (VAS) shield system, which lowers the shield pivot point by an average of 24 mm to create a smoother shell surface in the temple area. The VAS latch securely holds the shield closed and supports intuitive shield operation, including the de-mist function. The VAS-Max Vision shield accepts a VAS-MV Pinlock lens, and a Pinlock 120 MaxVision lens is included.

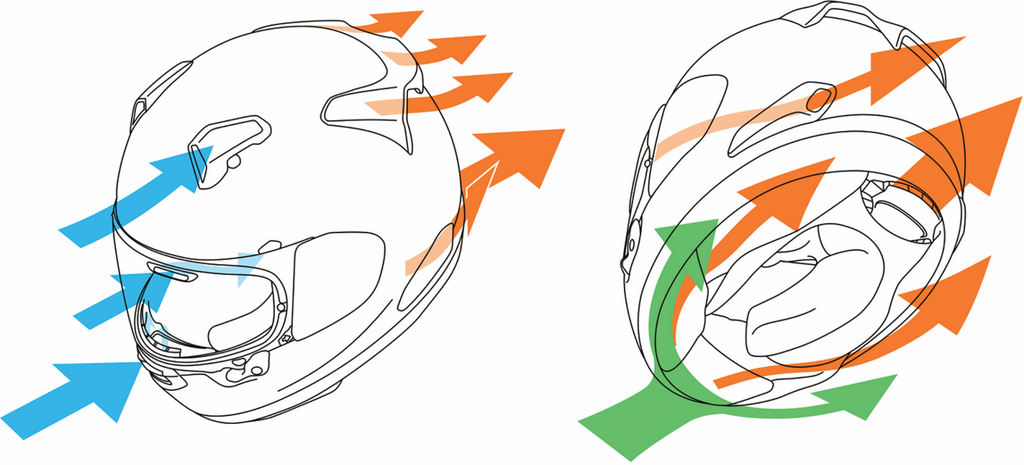

QVF three-position intake and QVR exhaust ducts provide air intake and exhaust performance while riding. The side vent continues to serve as an exhaust vent when the front shutter on the top duct is closed. FCS cheek pads use contoured shaping and multiple foam densities supported by a foam spring to cradle the face, help block wind noise and make putting the helmet on and removing it easier.
A water-repellent ES chin cover comes installed to enhance the helmet’s egg shape, smooth airflow, increase exhaust from the mouth area and reduce wind noise from below. The PB-SCLC shell combines multiple materials and construction techniques for the helmet’s shell design. This product is listed in size 2XL and Diamond Black, with manufacturer and vendor part number 0101-18174.
Features:
- Brand: ARAI HELMETS
- Model: Quantum-X
- Size: 2XL
- Color: Diamond Black
- Part Number: 0101-18174
- Head Shape: Round-oval interior shape designed for heads that are slightly wider rather than elongated
- Shield System: VAS shield system with a lower pivot point and improved shield latch
- Shield: VAS-Max Vision shield accepting a VAS-MV Pinlock lens
- Included Lens: Pinlock 120 MaxVision lens
- Ventilation: QVF three-position intake and QVR exhaust ducts
- Cheek Pads: FCS cheek pads with contoured shaping and multiple foam densities
- Chin Cover: Installed water-repellent ES chin cover
- Shell Construction: Peripherally Belted Super Complex Laminate Construction (PB-SCLC)
