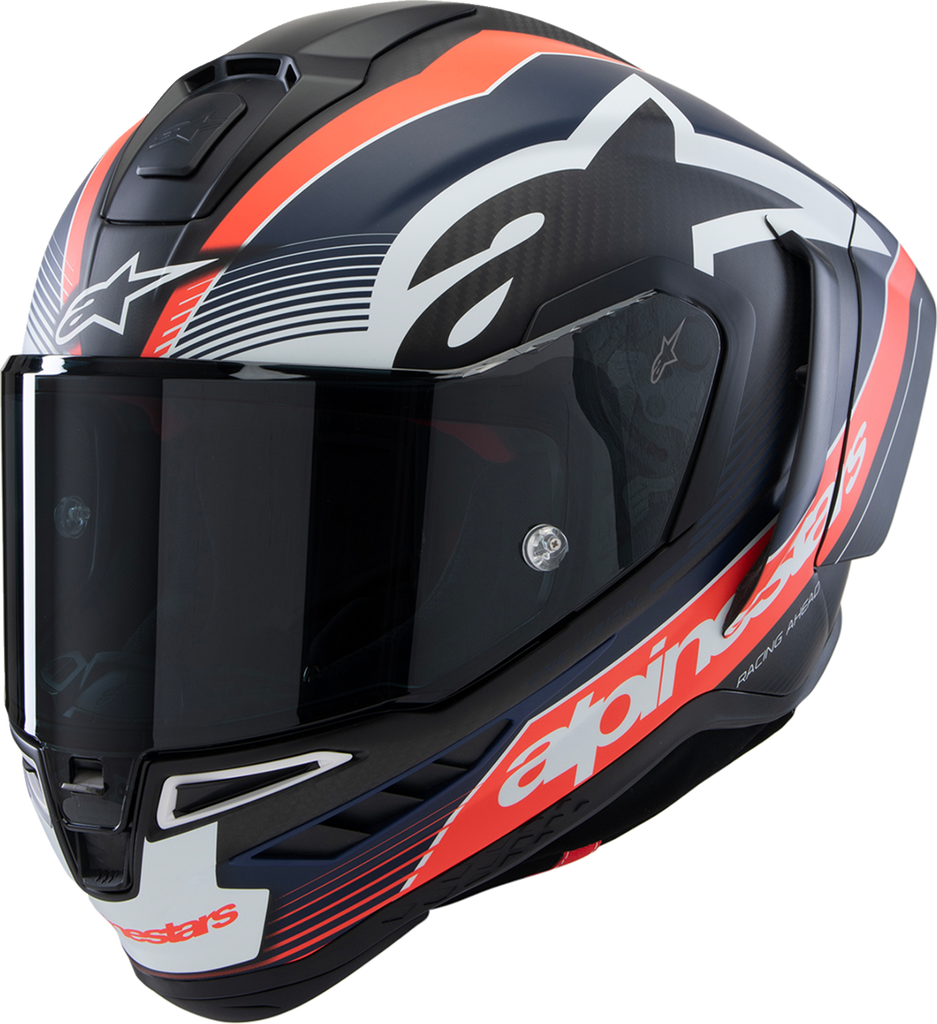

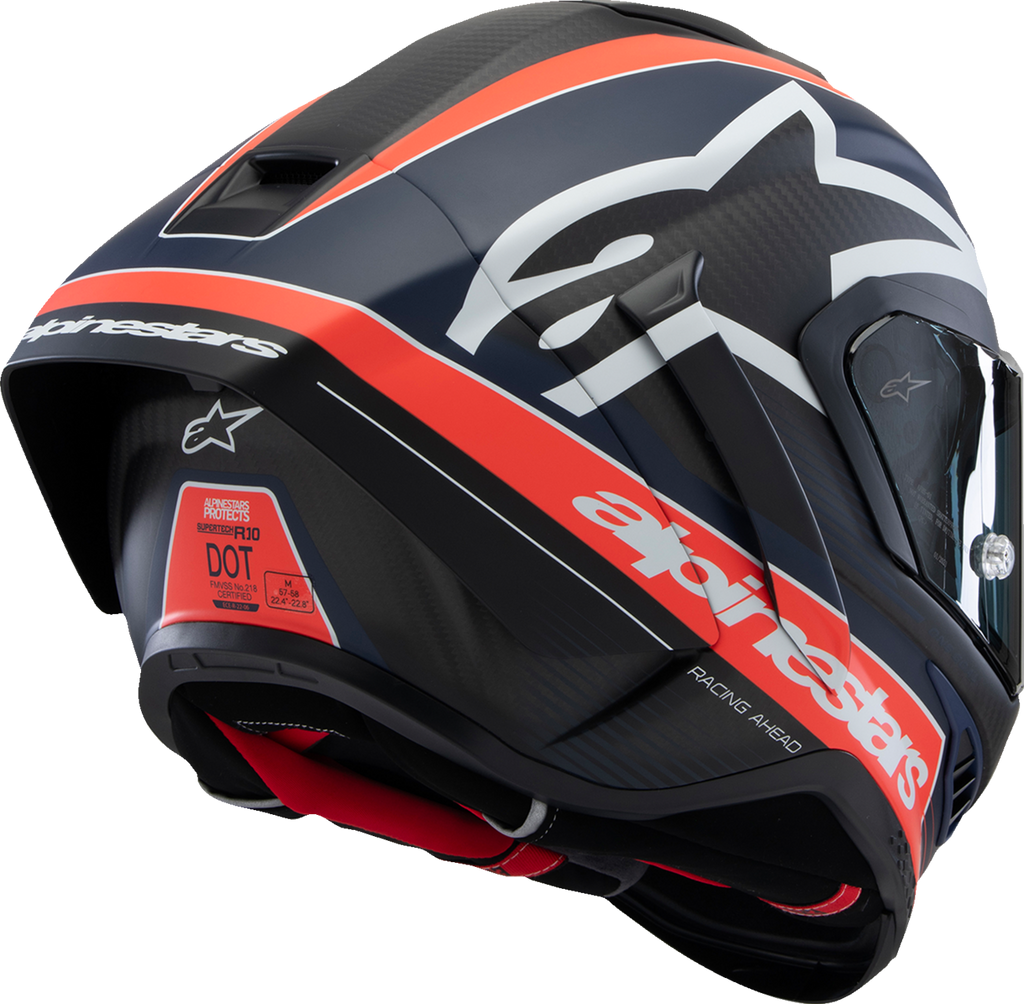

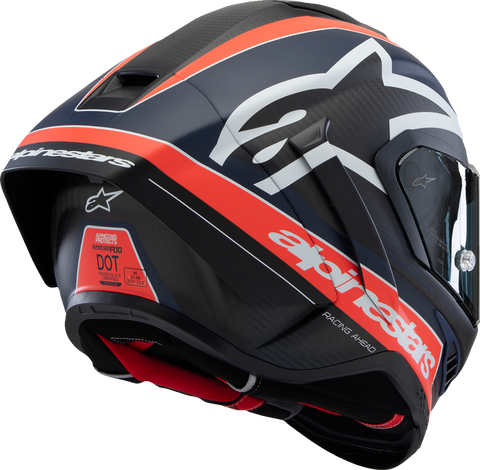

The Alpinestars Supertech R10 Helmet combines advanced composite construction, precise fit adjustment, and race-developed aerodynamics for riders who demand high levels of protection and performance. Part Number 8200224-1383-M identifies this Team edition in Matte Black, Carbon Red Fluo, and Blue, sized Medium. Its outer shell uses a multi-composite structure with a 3K high-density carbon outer layer, unidirectional carbon composite, aramid fiber, and fiberglass bonded with pre-preg epoxy resin. This construction helps optimize strength, weight, energy dissipation, and shell deflection during an impact.
The interior features four individually optimized inner shells and an eight-piece, multi-density EPS liner incorporating six strategically positioned densities. This design supports a close, comfortable fit while helping manage energy across different impact zones. The polished, low-friction EPS surface is engineered to help manage linear and oblique forces by allowing the comfort liner and rider's head to move more independently inside the helmet. This can help reduce forces transferred to the head, neck, brain, and spine during an oblique impact. The A-Head Fitment System allows riders to fine-tune both the height and angle of the helmet for a personalized position.
Developed through computational fluid dynamics simulations, wind-tunnel testing, and track validation, the Supertech R10 is designed for aerodynamic stability and reduced drag. It includes standard and longer race spoilers with elastic joints that help the spoiler detach under a significant impact, regardless of angle, to help reduce rotational energy. Lateral winglets further support stability, while visor turbulators improve aero-acoustic performance. The ventilation system uses 11 dedicated ventilation points, including seven intakes and four exhausts, with integrated channels directing airflow through the EPS liner and around the rider's head.
A large top vent slider channels fresh air toward the crown and helps extract hot air from the forehead when open. Rear extractor vents discharge warm air beneath the spoiler, while chin bar vents direct airflow along the inside of the shield to help reduce fogging and misting. The chin vents can also extract humid air from inside the helmet. Together, these features make the Alpinestars Supertech R10 Helmet a refined choice for track-focused riding and high-performance street use.
Features:
- Outer Shell: Multi-composite construction combines a 3K high-density carbon outer layer, unidirectional carbon composite, aramid fiber, and fiberglass with pre-preg epoxy resin for strength, energy management, and reduced shell deflection.
- Inner Shell: Four optimized inner shells help improve fit, comfort, impact performance, and overall weight.
- EPS Liner: Eight-piece, multi-density EPS liner uses six specific densities positioned across key zones for targeted energy absorption and a close fit.
- Impact Management: Smooth, low-friction EPS surface helps manage linear and oblique forces by allowing controlled movement between the comfort liner and EPS.
- A-Head Fitment System: Adjusts helmet height and tilt angle to help riders achieve a personalized fit.
- Aerodynamics: CFD-developed and wind-tunnel-validated shell profile is designed for low drag and aerodynamic stability.
- Spoilers: Includes standard and longer race spoilers with elastic joints designed to detach during significant impacts to help reduce rotational energy.
- Ventilation: Eleven dedicated ventilation points, integrated air channels, and multiple exhausts promote airflow around the head and help remove heat and humidity.
- Visor Airflow: Chin vents direct air along the inner shield surface to help reduce fogging and misting.
- Color and Size: Team finish in Matte Black, Carbon Red Fluo, and Blue, Medium.
- Brand and Part Number: Alpinestars Supertech R10 Helmet, Part Number 8200224-1383-M.
