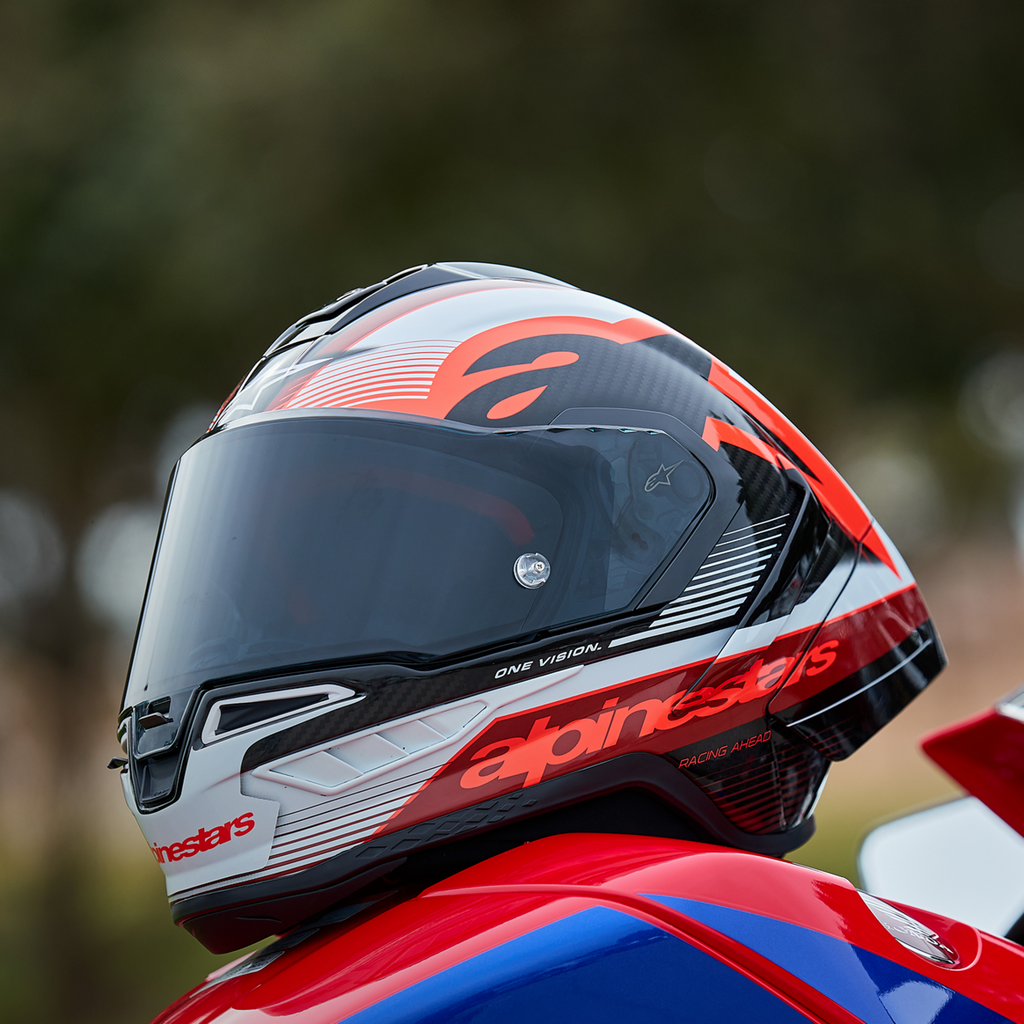

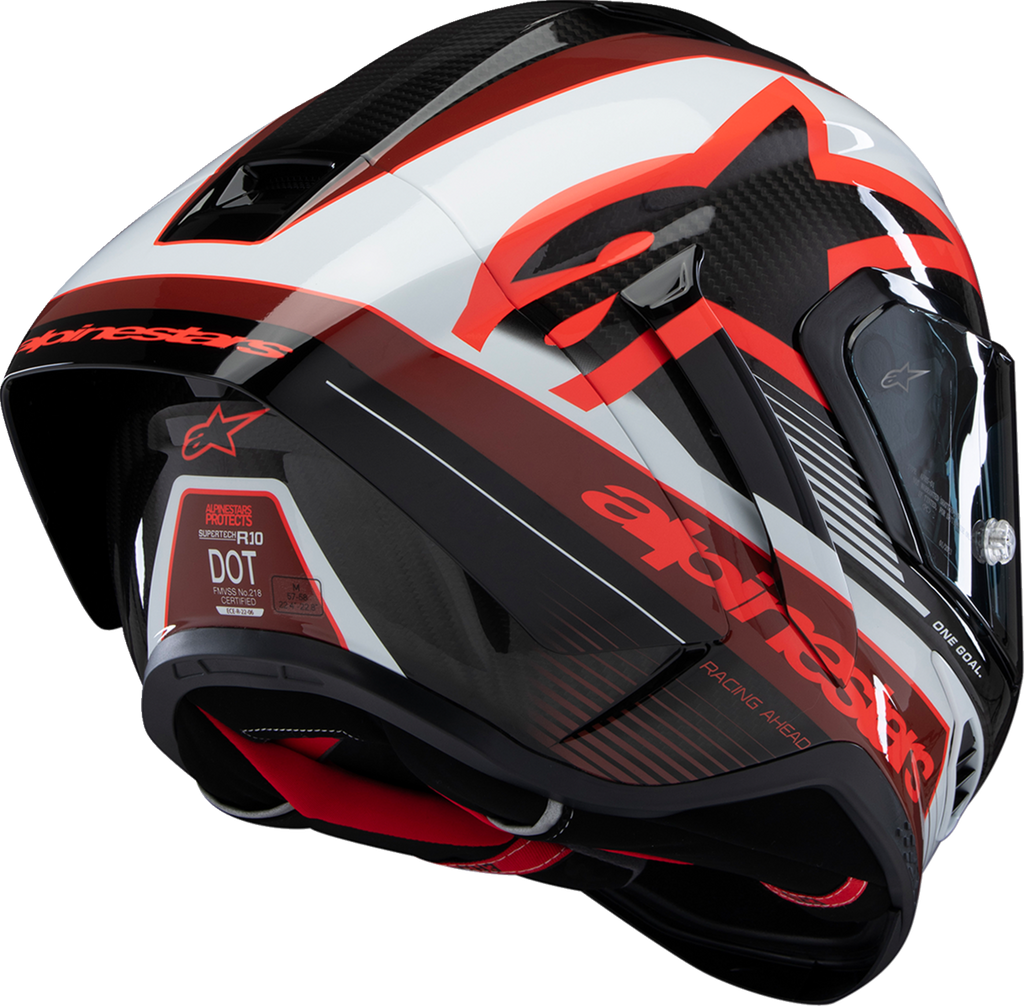

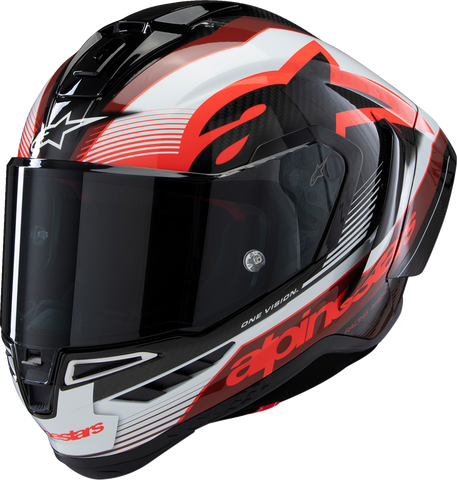

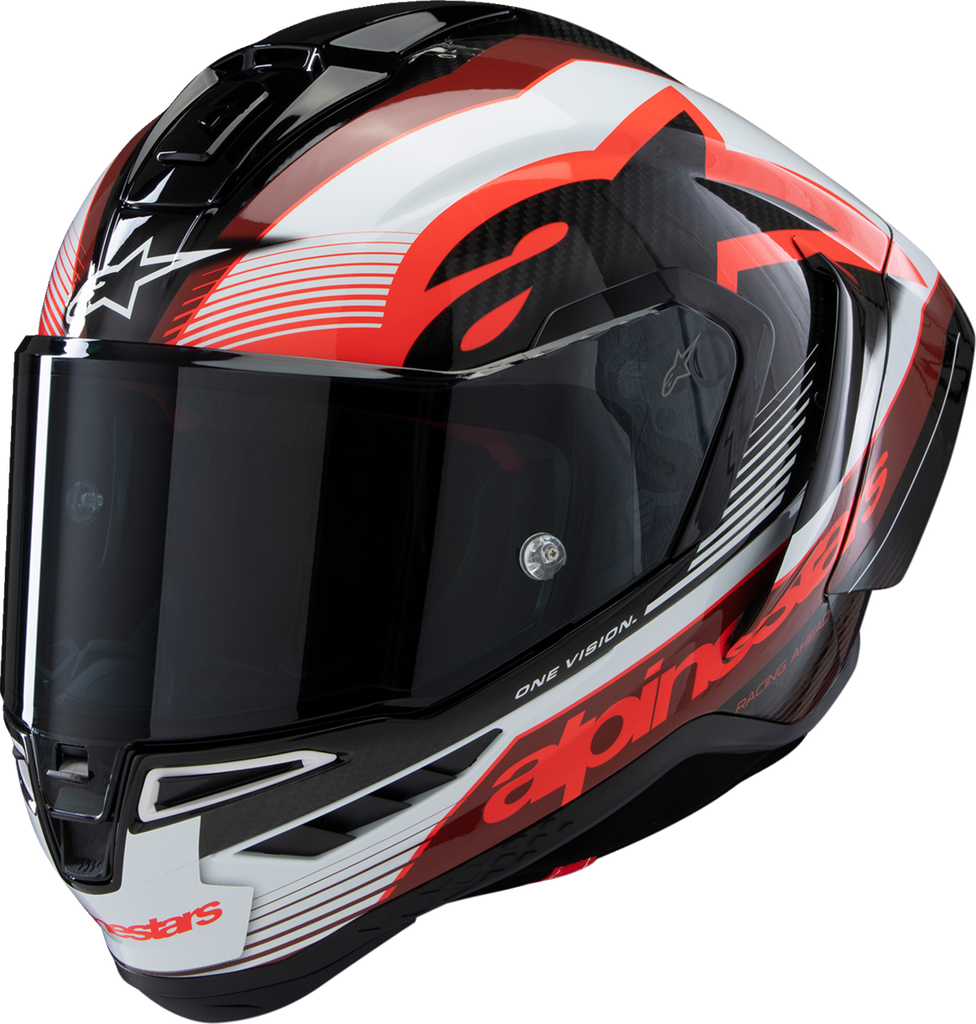

The Alpinestars Supertech R10 Helmet is a high-performance full-face motorcycle racing helmet engineered for advanced protection, aerodynamic stability, ventilation, and rider comfort. This Team edition features a black, carbon red, and gloss white finish in an XL fit. Part number 8200224-1352-XL identifies this configuration for riders seeking premium track-focused performance from the Alpinestars Supertech R10 platform.
The outer shell uses a multi-composite construction combining a 3K high-density carbon outer layer, a uni-directional carbon composite layer, aramid fiber, and fiberglass. These materials are bonded with pre-preg fiber and epoxy resin to help optimize the resin-to-fiber ratio, strength, mechanical performance, and weight. The eight-piece, multi-density EPS liner uses six strategically positioned densities to absorb impact energy while maintaining a close, comfortable fit. Its smooth, low-friction inner surface helps manage linear and oblique forces by allowing the comfort liner to move relative to the EPS, helping reduce force transferred to the head, neck, brain, and spine during an oblique impact. The A-Head Fitment System allows riders to adjust the helmet's height and tilt for a personalized setup.
Aerodynamic performance was developed through CFD simulations and validated in wind-tunnel and track testing. The helmet includes standard and extended race spoilers with elastic joints designed to detach during a significant impact, along with lateral winglets for added stability and reduced drag. Visor turbulators support improved aero-acoustic performance. Eleven ventilation points, including seven intakes and four exhausts, connect to internal air channels that direct airflow across the head and out the rear. A central top slider controls airflow over the crown and supports hot-air extraction, while rear extractor vents help release heat. Chin-bar vents direct air toward the shield to help limit fogging and also remove humid air from inside the helmet. The result is a race-ready helmet designed to deliver dependable protection, precise fit, efficient airflow, and stable performance at speed.
Features:
- Multi-composite outer shell: Combines 3K high-density carbon, uni-directional carbon composite, aramid fiber, and fiberglass for strength and controlled energy management.
- Eight-piece multi-density EPS liner: Uses six strategically positioned densities to help absorb impact forces and support a close, comfortable fit.
- Low-friction EPS surface: Helps manage rotational, oblique, and linear forces by allowing controlled movement between the comfort liner and EPS.
- A-Head Fitment System: Adjusts helmet height and tilt angle to help riders achieve a personalized fit.
- CFD-developed aerodynamics: Designed and validated for low drag, aerodynamic stability, and race-focused performance.
- Interchangeable spoilers: Includes standard and extended race spoilers with elastic joints designed to detach during significant impacts.
- Lateral winglets: Support aerodynamic stability and help improve drag performance.
- Visor turbulators: Help enhance aero-acoustic performance around the shield.
- Eleven-point ventilation: Provides seven intake ports and four exhaust ports connected through internal EPS air channels.
- Adjustable airflow control: A central top slider directs air over the crown and supports hot-air extraction.
- Chin-bar ventilation: Directs airflow toward the shield to help reduce fogging while extracting humid air.
- Team colorway: Finished in black, carbon red, and gloss white.
- Helmet size: XL.
- Part number: 8200224-1352-XL.
