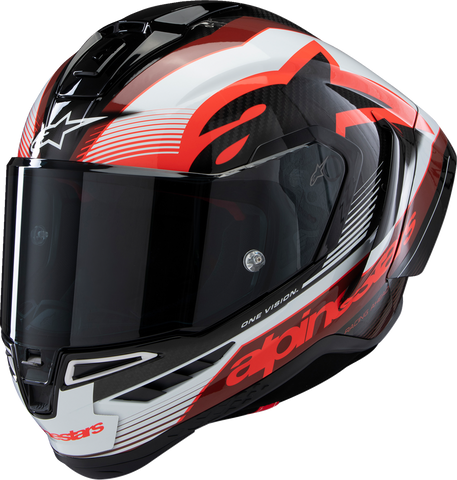

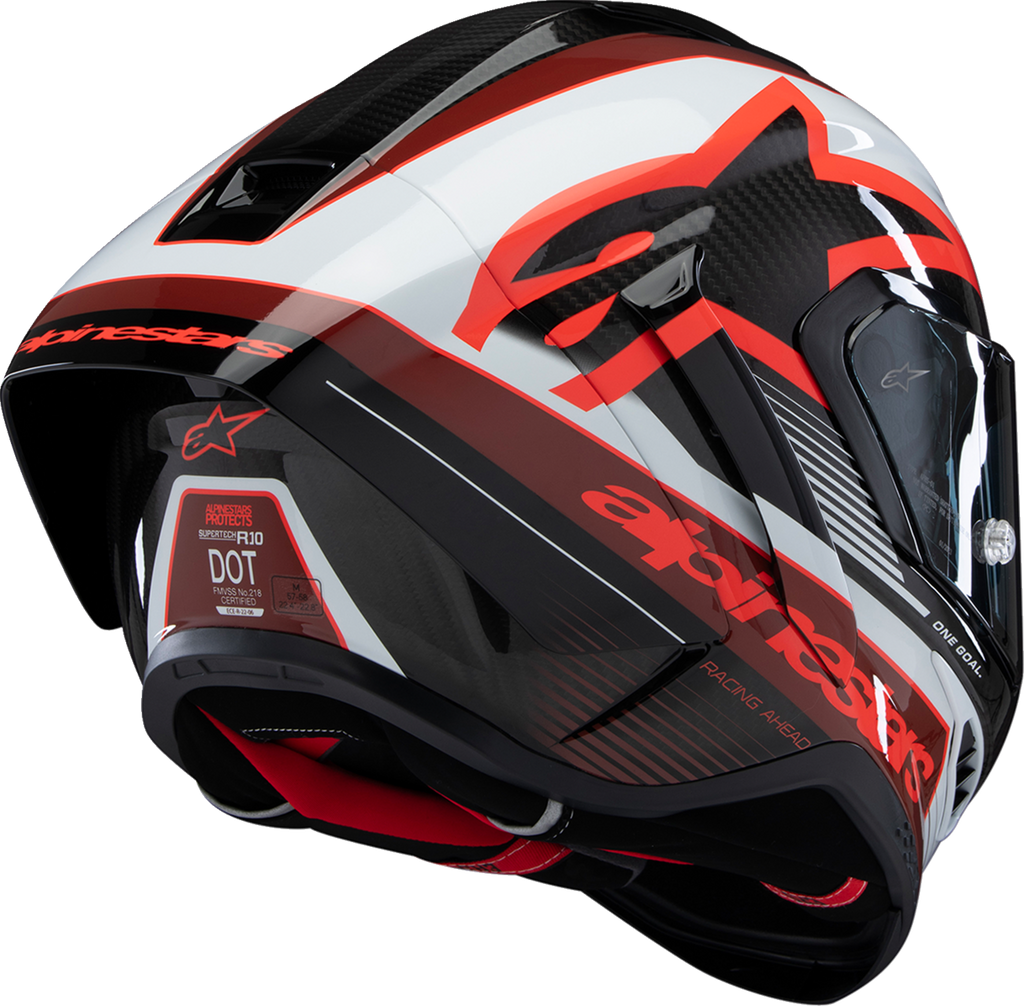

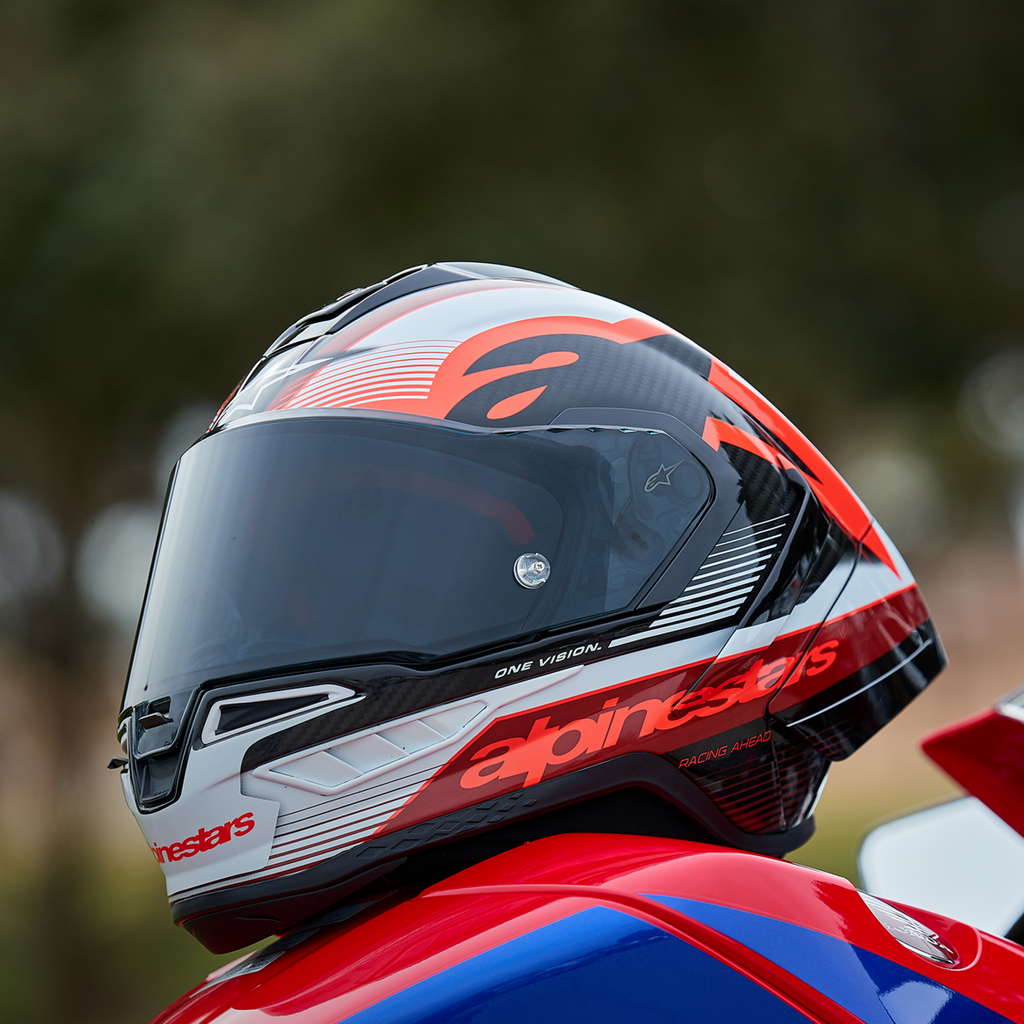

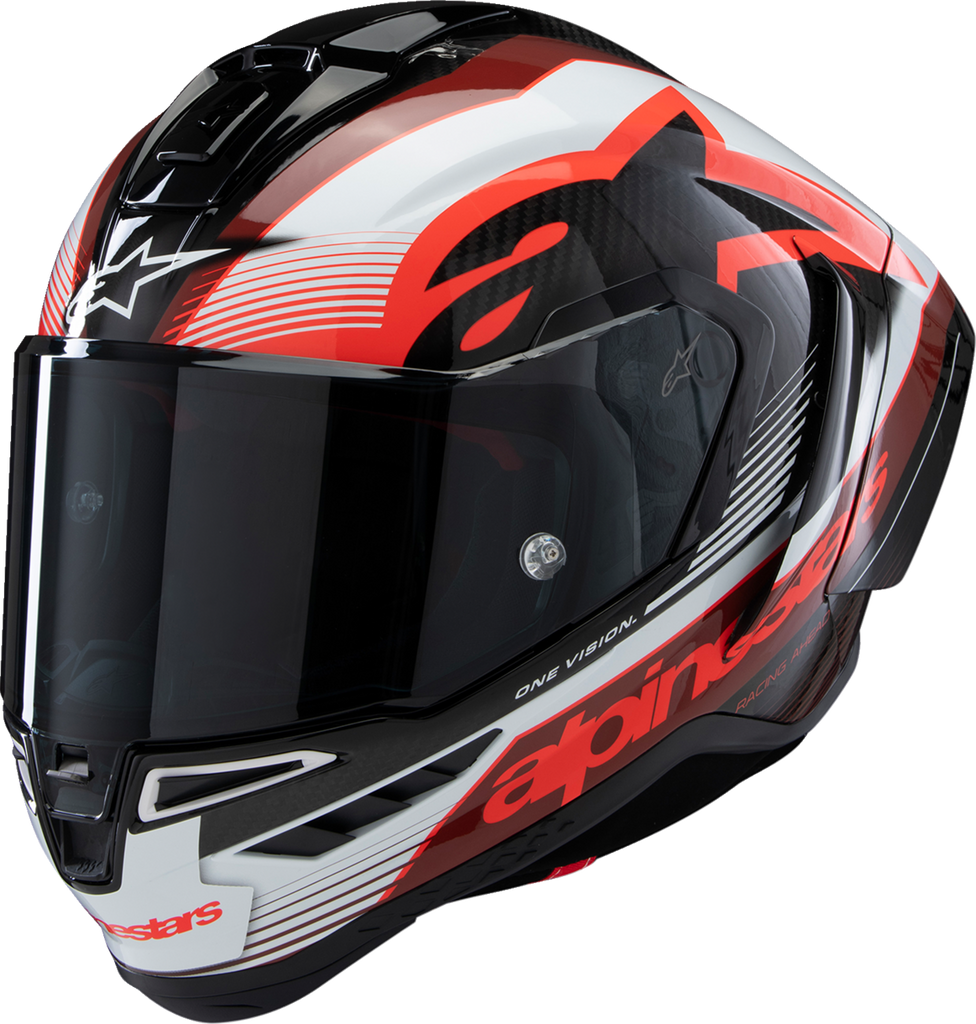

The Alpinestars Supertech R10 Helmet combines advanced composite construction, race-developed aerodynamics, and multi-density impact management for demanding motorcycle riding. This Team edition features a Black, Carbon Red, and Gloss White finish in a Large fit. Part number 8200224-1352-L identifies this performance-focused helmet, which is engineered to balance strength, lightweight performance, comfort, and stability at speed.
The outer shell uses a multi-composite construction incorporating a 3K high-density carbon outer layer, uni-directional carbon composite, aramid fiber, and fiberglass. These layers are bonded with pre-preg epoxy resin to optimize the ratio of resin to fiber, helping maximize mechanical performance and energy dissipation. The construction is designed to limit shell deflection and distribute impact energy across the EPS liner. Inside, four separately developed shell sections and an eight-piece, multi-density EPS liner help provide a precise fit while strategically managing energy across different impact zones.
The Supertech R10 uses a smooth, low-friction EPS surface to support management of linear and oblique impact forces. The polished and specially coated surface allows the comfort liner to move relative to the EPS, helping the rider’s head move more independently within the helmet during an oblique impact. Its A-Head Fitment System allows riders to adjust the helmet’s height and angle for a more personalized position, supporting both comfort and proper helmet placement.
Aerodynamic performance was developed through CFD simulations and validated in wind-tunnel and track testing. The helmet includes standard and longer race spoilers with elastic joints designed to detach during a significant impact, along with lateral winglets for added stability and drag management. Eleven ventilation points, integrated air channels, a top slider, chin vents, and rear exhaust ports promote airflow around the head while helping remove heat and moisture. Chin-bar airflow is directed toward the shield to help reduce fogging and misting, while rear extractors assist with hot-air evacuation during intense riding.
Features:
- Multi-composite outer shell: Combines 3K high-density carbon, uni-directional carbon composite, aramid fiber, and fiberglass for strength, energy dissipation, and controlled shell deflection.
- Pre-preg construction: Uses epoxy resin applied to the pre-preg fibers to optimize resin-to-fiber proportions and support consistent mechanical performance.
- Multi-density EPS liner: Eight-piece liner with six strategically positioned densities helps manage impact energy while supporting a close, comfortable fit.
- Low-friction EPS surface: Smooth, specially coated inner surface helps manage rotational, oblique, and linear forces by allowing controlled movement between the comfort liner and EPS.
- A-Head Fitment System: Adjusts helmet height and tilt angle to help riders achieve a personalized fit and preferred riding position.
- Race-developed aerodynamics: CFD-optimized design, wind-tunnel validation, two interchangeable spoilers, elastic spoiler joints, and lateral winglets support stability and drag management.
- Integrated ventilation: Eleven ventilation points, internal air channels, top slider, chin vents, and rear exhausts promote airflow and help remove heat and humidity.
- Anti-fog airflow design: Chin vents direct air along the inner shield surface to help reduce fogging and misting during riding.
