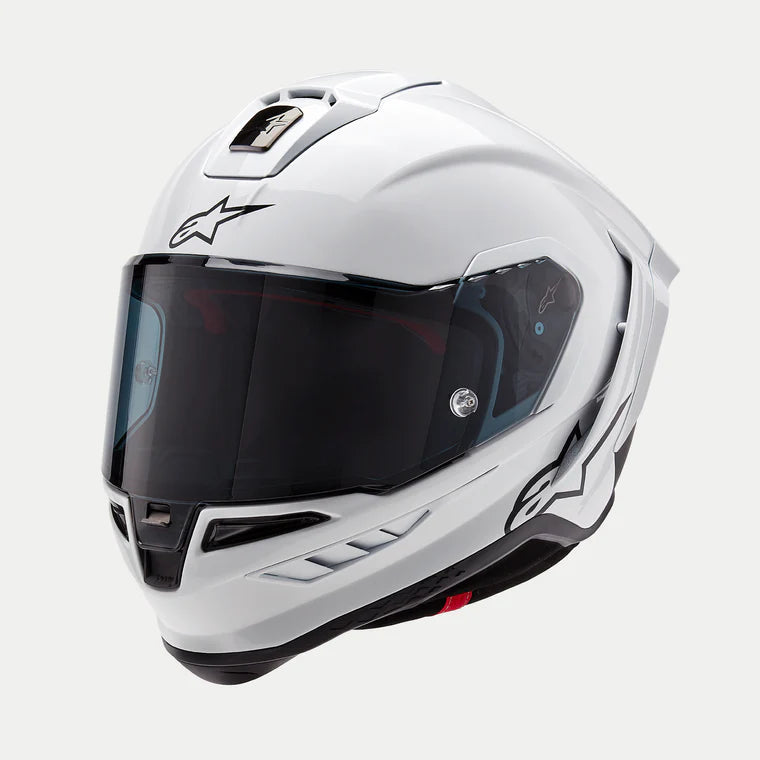

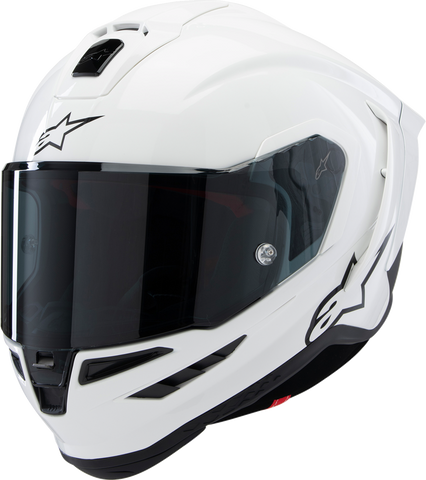

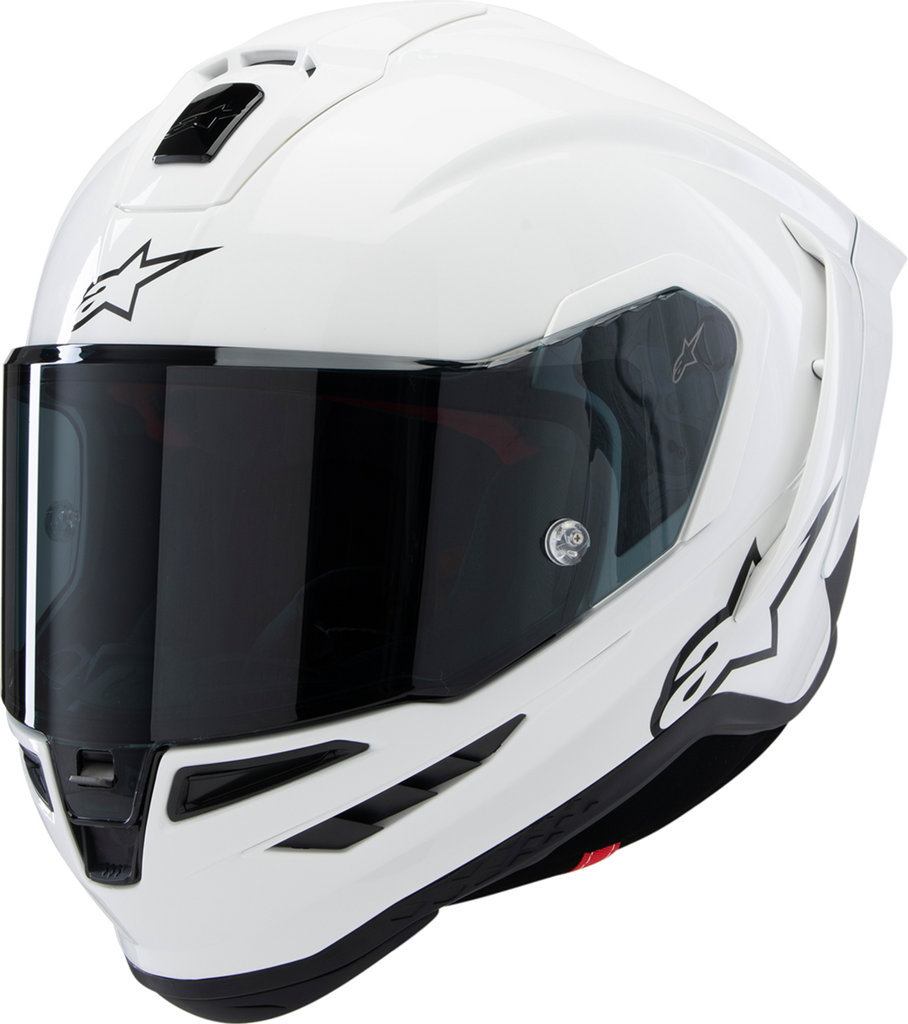

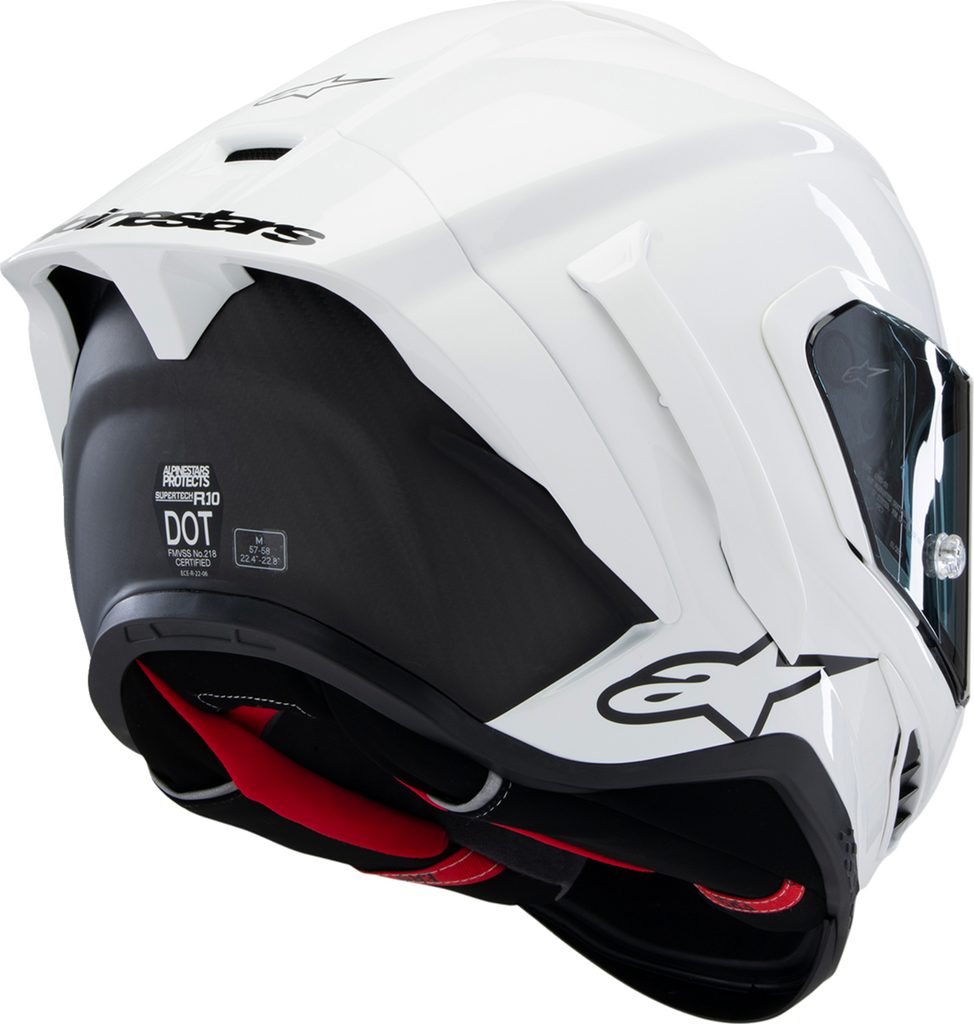

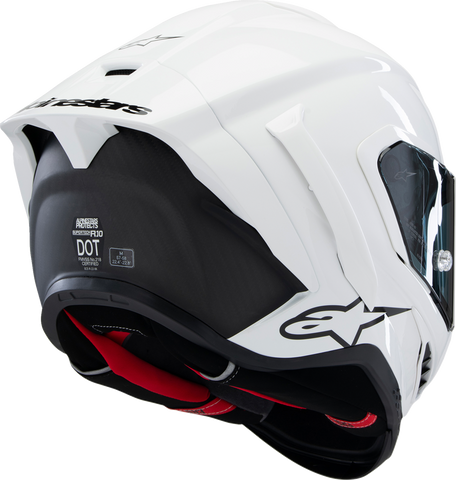

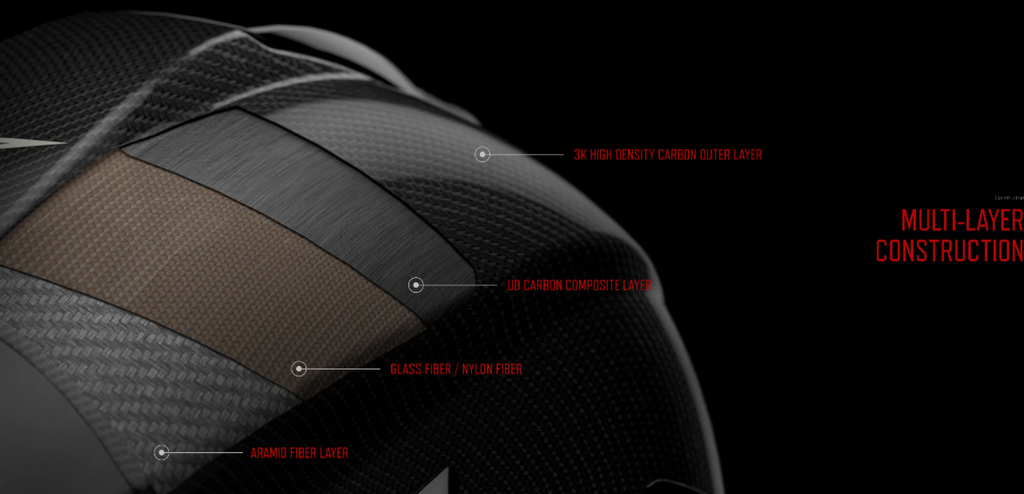

The Alpinestars Supertech R10 Helmet combines advanced composite construction, precise fit adjustment, aerodynamic stability, and race-focused ventilation in a premium full-face design. Part number 8200124-2170-M identifies this Solid Gloss White, Medium configuration. Its outer shell uses a multi-composite structure featuring a 3K high-density carbon outer layer, unidirectional carbon composite, aramid fiber, and fiberglass bonded with pre-preg epoxy resin. This construction helps optimize the resin-to-fiber ratio for strength, mechanical performance, lightweight efficiency, and controlled shell deflection during an impact.
The helmet features four inner shell sizes and an eight-piece, multi-density EPS liner incorporating six strategically positioned densities. This arrangement is designed to support a close, comfortable fit while managing energy across multiple impact zones. A smooth, specially treated low-friction EPS surface helps manage linear and oblique forces by allowing the comfort liner and rider’s head to move more independently within the helmet. The A-Head Fitment System allows riders to adjust the helmet’s height and angle for a more personalized position, helping improve comfort, stability, and impact-management performance.

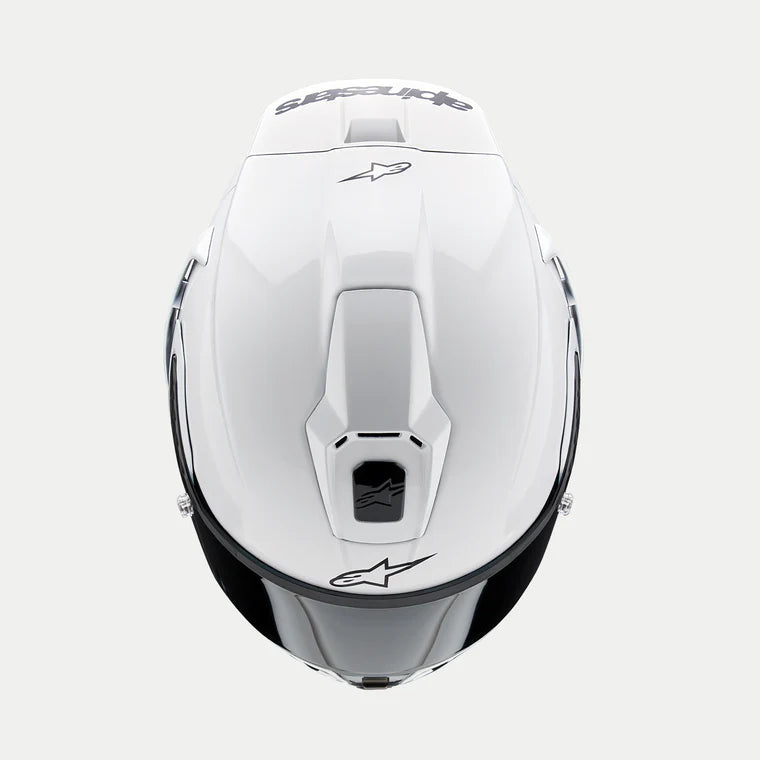

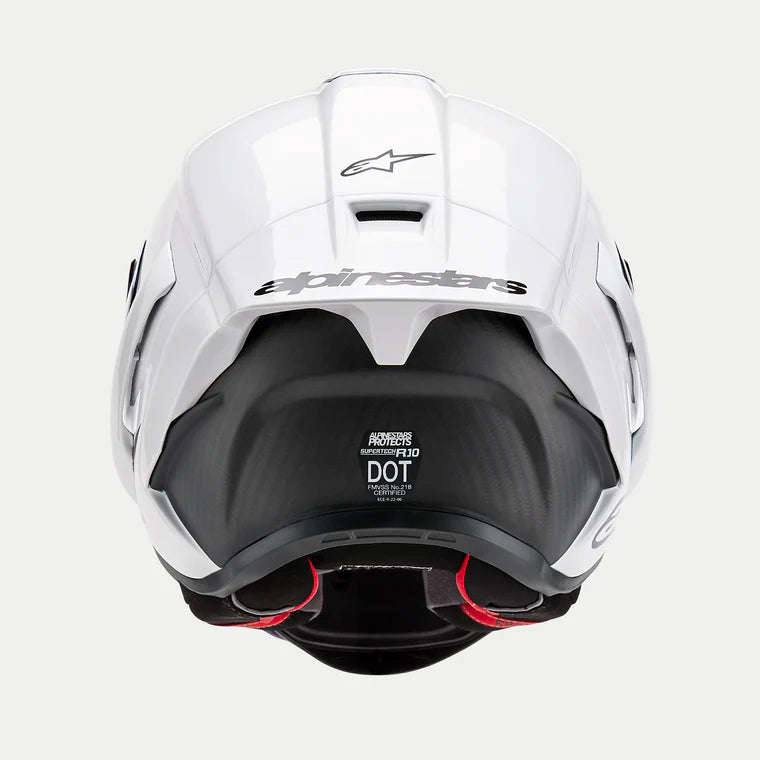

Developed using computational fluid dynamics simulations and validated in wind-tunnel and track testing, the Supertech R10 is engineered for low drag and aerodynamic stability. Lateral winglets support stability, while visor turbulators help improve aero-acoustic performance. The ventilation system uses 11 dedicated ports, including seven intakes and four exhausts, with integrated channels through the EPS liner to circulate air around the rider’s head and extract heat. A large top vent slider directs airflow toward the crown and assists forehead heat extraction, while rear exhausts release warm air beneath the spoiler. Chin-bar vents help channel airflow toward the shield area to reduce fogging and remove humid air from inside the helmet.
Features:
- Multi-Composite Outer Shell: Combines 3K high-density carbon, unidirectional carbon composite, aramid fiber, and fiberglass for strength, controlled deflection, and efficient energy management.
- Pre-Preg Epoxy Construction: Controls the resin-to-fiber ratio to support structural performance and lightweight efficiency.
- Four Inner Shells: Optimizes fit across helmet sizes to improve comfort, reduce weight, and support impact-management performance.
- Eight-Piece Multi-Density EPS Liner: Uses six strategically positioned densities to absorb and dissipate impact energy while maintaining a close fit.
- Low-Friction EPS Surface: Helps manage rotational, oblique, and linear forces by allowing the comfort liner to move more independently inside the helmet.
- A-Head Fitment System: Adjusts the helmet’s height and forward or rearward angle for a personalized fit and riding position.
- Aerodynamic Development: CFD simulation, wind-tunnel testing, and track validation support low drag and aerodynamic stability.

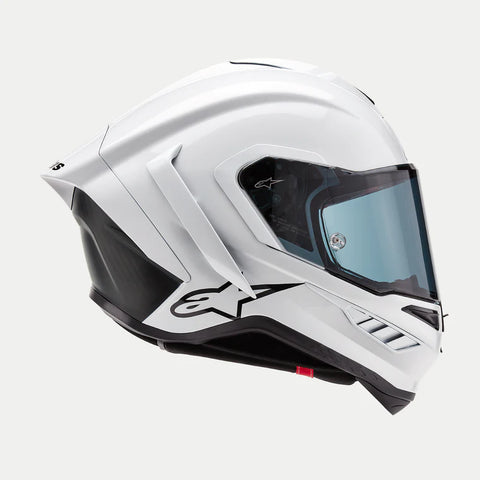

- Lateral Winglets and Visor Turbulators: Enhance stability and help improve aerodynamic and acoustic performance.
- Integrated Ventilation System: Uses 11 ventilation points with dedicated intake, airflow-channeling, and exhaust functions.

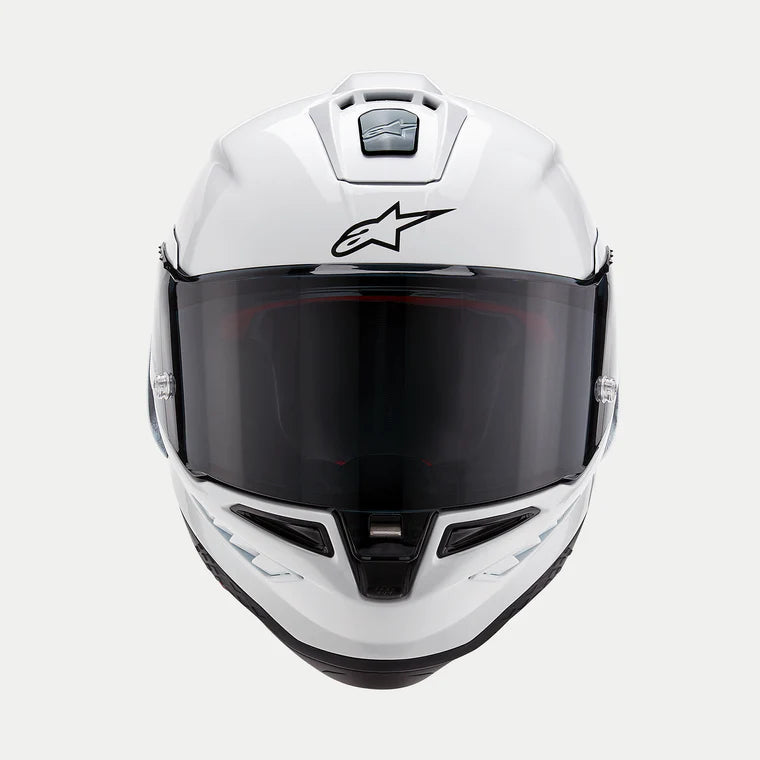

- Chin, Top, and Rear Vents: Direct cooling airflow around the rider’s head, reduce shield fogging, and remove warm, humid air.
