Developed through computational fluid dynamics simulations, wind-tunnel testing, and track validation, the Supertech R10 is optimized for aerodynamic stability and low drag. Lateral winglets further support stability, while visor turbulators help improve aero-acoustic performance. The ventilation system uses 11 dedicated ventilation points, including seven intakes and four exhausts, with air channels integrated through the EPS liner. A large top vent slider directs airflow over the rider’s head, while rear extractors release hot air. Chin-bar vents channel air toward the shield to help reduce fogging and misting, and can also exhaust humid air from inside the helmet. The result is a race-oriented helmet that combines advanced impact management, adjustable fit, aerodynamic performance, and effective airflow control.
Features:

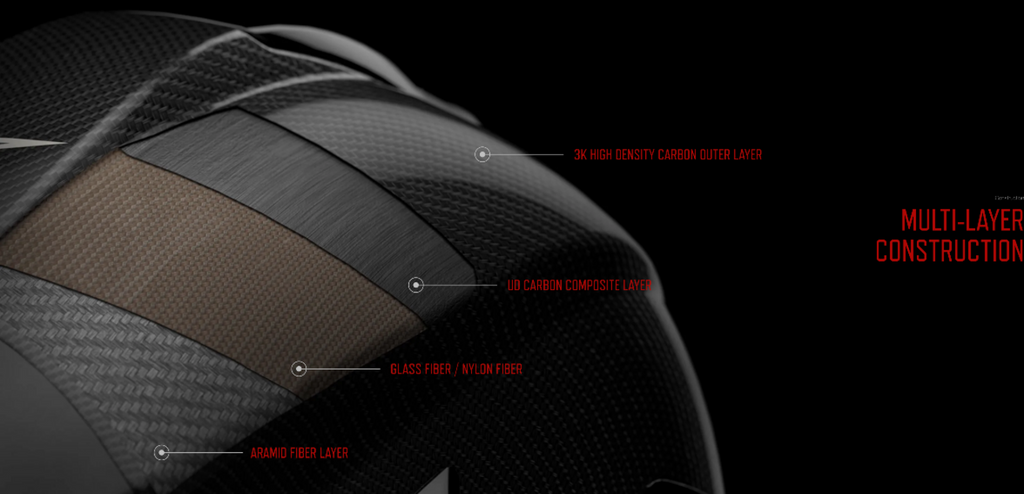

- Outer Shell: Multi-composite construction combines 3K high-density carbon, unidirectional carbon composite, aramid fiber, and fiberglass for strength and efficient energy management.
- Resin Technology: Pre-preg fiber and epoxy resin construction precisely controls the resin-to-fiber ratio to support lightweight performance and structural consistency.
- Inner Shell: Four inner shell sizes help optimize fit, comfort, overall weight, and impact performance.
- EPS Liner: Eight-piece, multi-density EPS liner uses six strategically positioned densities to absorb and dissipate impact energy.
- Oblique Impact Management: Smooth, low-friction EPS surfaces allow the comfort liner to move independently during an oblique impact, helping reduce transmitted forces.
- A-Head Fitment System: Adjustable height and tilt settings allow riders to tune how the helmet sits on the head.
- Aerodynamics: CFD development, wind-tunnel testing, track validation, lateral winglets, and visor turbulators support low drag and aerodynamic stability.
- Ventilation: Eleven ventilation points, internal air channels, top airflow control, and rear exhaust ports promote effective airflow management.
- Chin-Bar Airflow: Chin vents direct air toward the shield to help limit fogging while providing humid-air extraction.

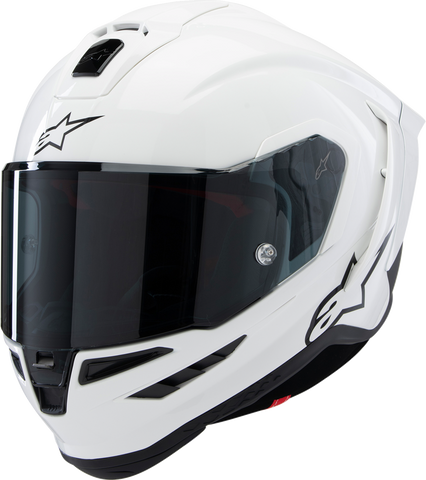

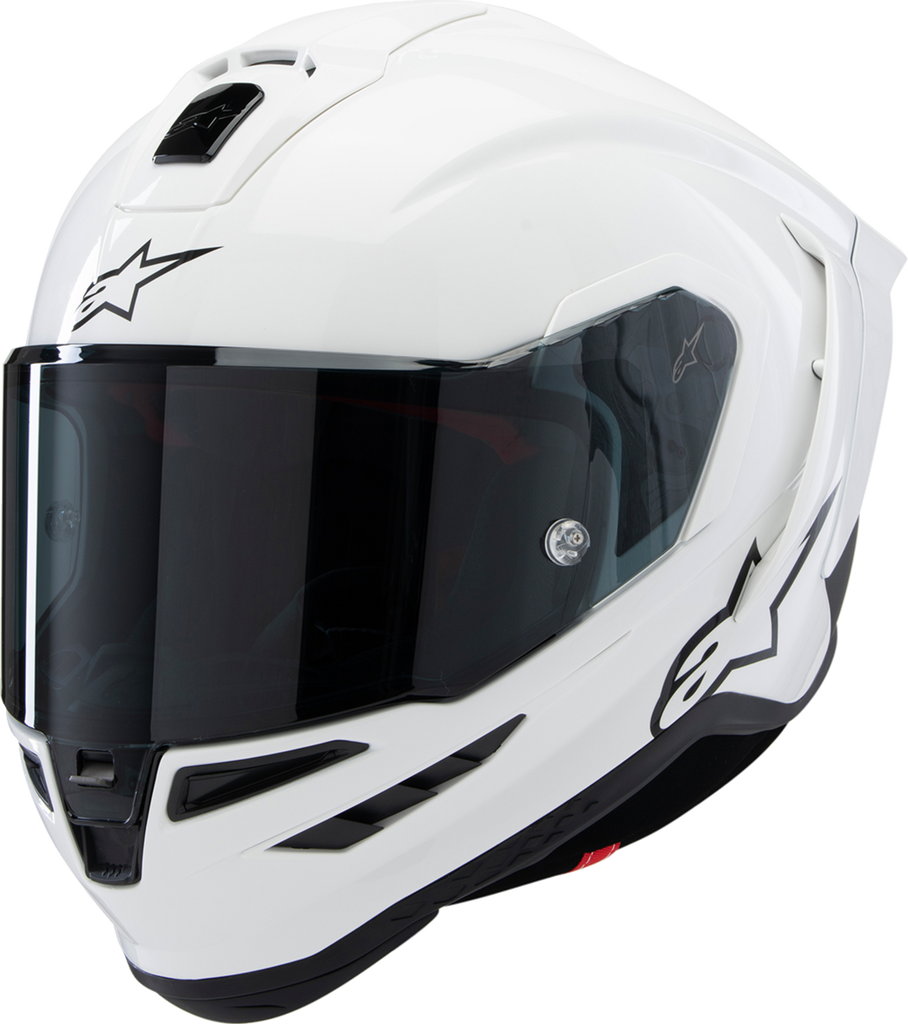

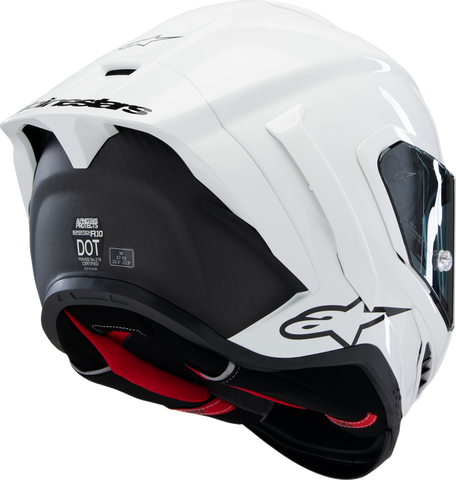

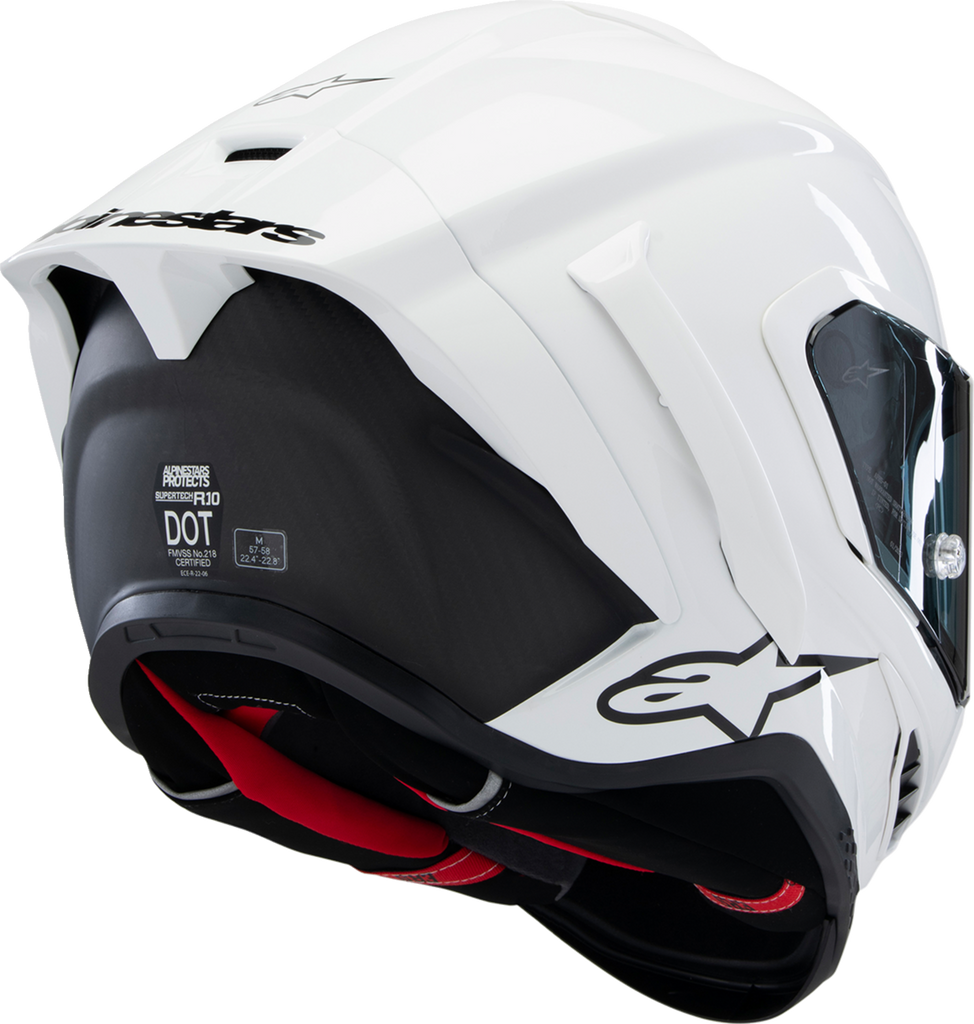

- Finish and Size: Solid gloss white finish in size 2XL.
