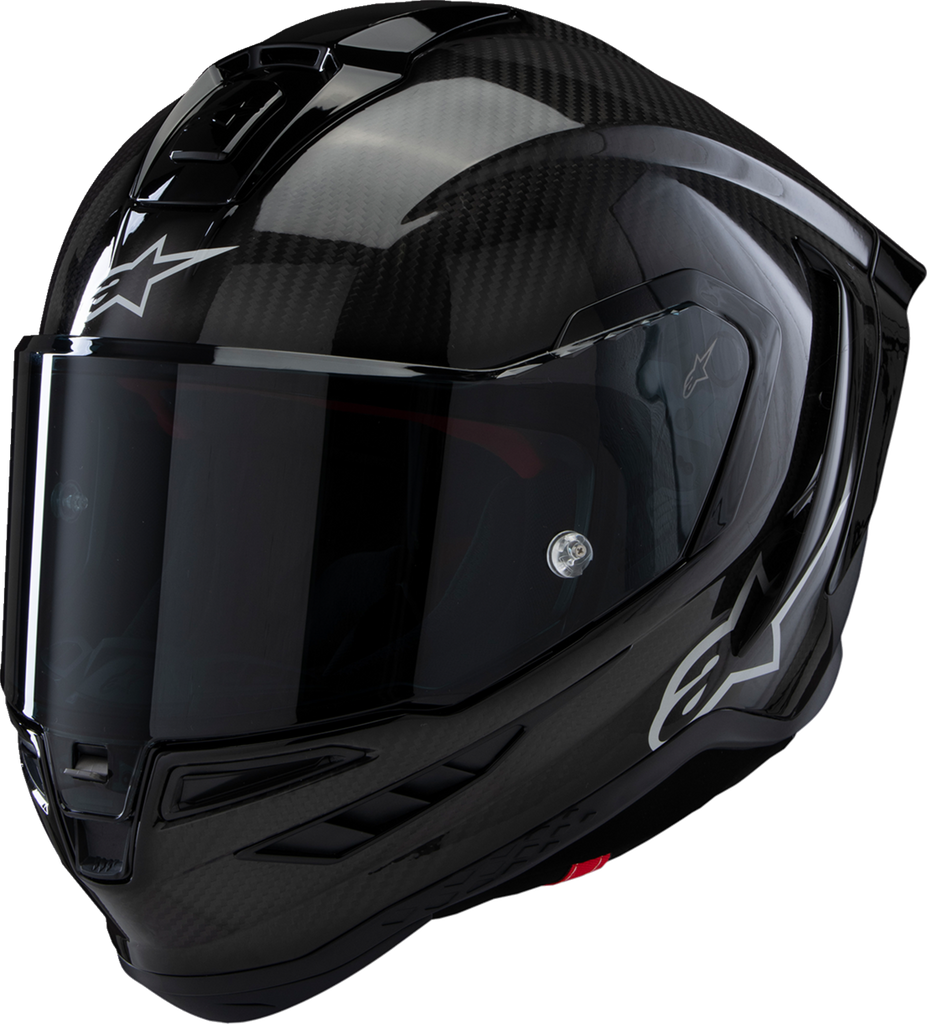

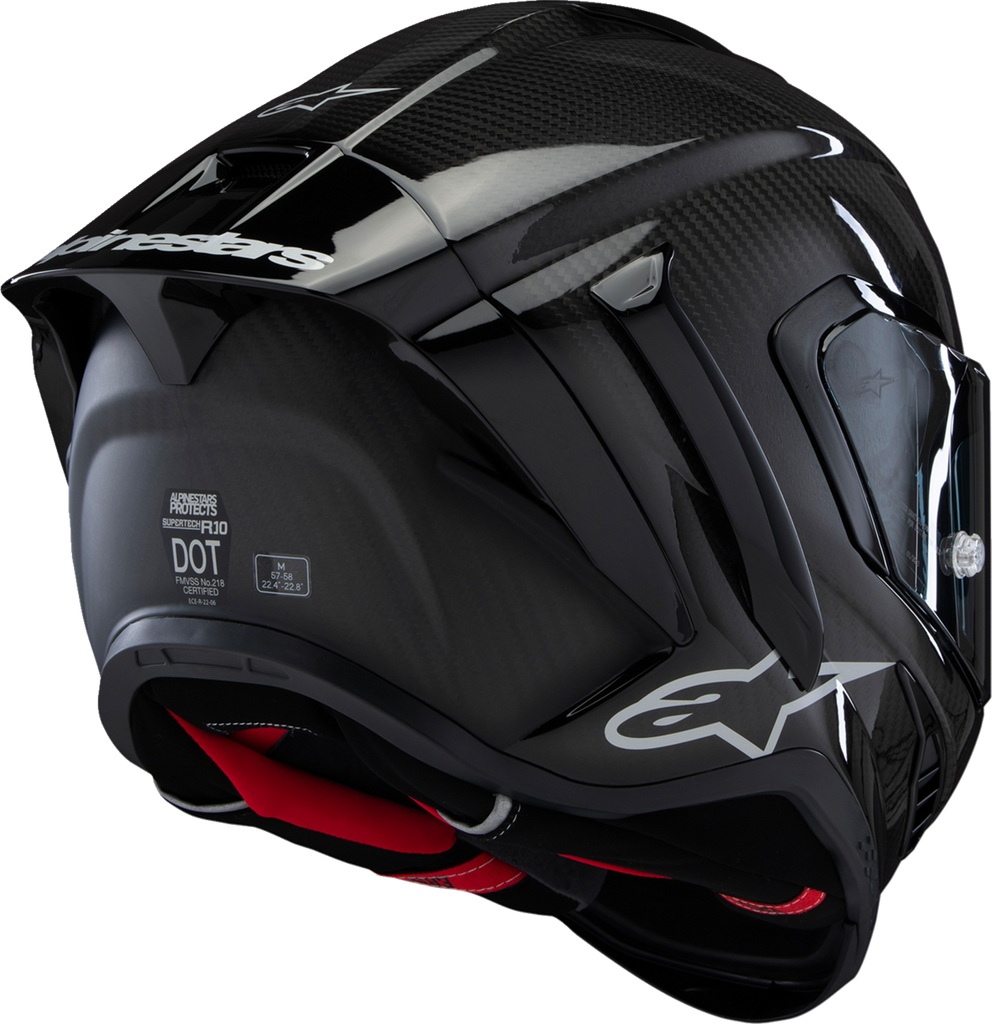

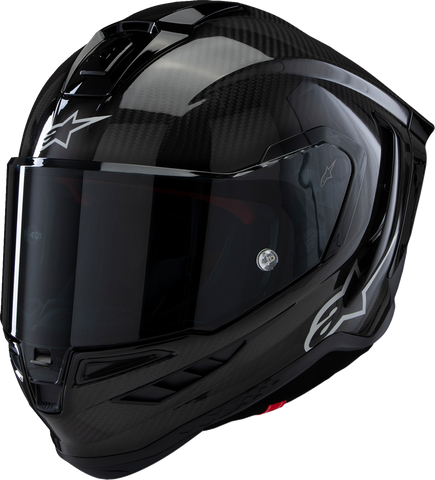

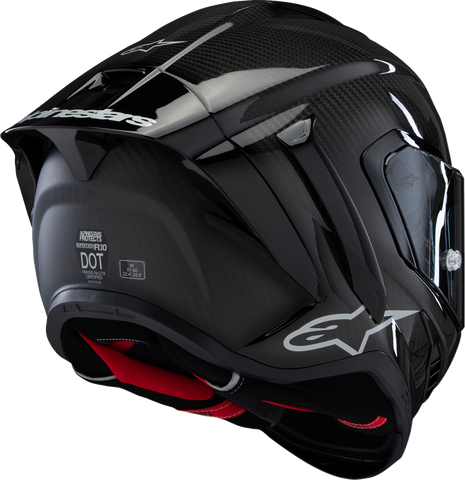

The Alpinestars Supertech R10 Helmet combines advanced composite construction, aerodynamic stability, and impact-management technology for demanding motorcycle riders. Its outer shell uses a multi-composite structure with a 3K high-density carbon outer layer, unidirectional carbon composite, aramid fiber, and fiberglass bonded with pre-preg epoxy resin. This construction helps optimize the resin-to-fiber ratio for strength, mechanical performance, lightweight efficiency, and controlled shell deflection, allowing impact energy to spread across the shell and be absorbed more effectively by the EPS liner. This Solid Carbon Black, Medium helmet is identified by part number 8200124-1902-M.
The inner shell features four optimized shell sizes and an eight-piece, multi-density EPS liner incorporating six targeted densities for a close, comfortable fit and controlled energy absorption. A smooth, low-friction EPS surface helps manage linear and oblique forces by allowing the comfort liner to move independently from the helmet during an impact. This design can reduce the forces transmitted to the rider’s head, neck, brain, and spine. The A-Head Fitment System allows riders to adjust the helmet’s height and angle for a more personalized position, helping improve both comfort and impact performance.
Developed through computational fluid dynamics simulations and validated in wind-tunnel and track testing, the Supertech R10 is designed for low drag and aerodynamic stability. Lateral winglets support stability, while visor turbulators help improve aero-acoustic performance. Eleven ventilation points, excluding the eye port, include chin and crown intakes plus rear and chin-bar exhausts. Integrated air channels direct airflow over the rider’s head, assist hot-air extraction, and help reduce shield fogging by routing air along the inner shield surface. The large central crown-vent slider provides adjustable airflow, while rear extractor ports help release heat and humidity during extended rides.
Features:
- Composite Outer Shell: Uses 3K high-density carbon, unidirectional carbon composite, aramid fiber, and fiberglass layers bonded with pre-preg epoxy resin for strength, energy management, and reduced shell deflection.
- Multi-Density EPS Liner: Eight-piece liner with six targeted densities helps absorb impact energy while supporting a close and comfortable fit.
- Low-Friction Impact Management: Smooth, specially coated EPS surfaces help manage linear, oblique, and rotational impact forces by allowing the comfort liner to move independently.
- A-Head Fitment System: Adjusts helmet height and angle to help riders achieve a personalized fit and preferred riding position.
- Aerodynamic Stability: CFD-developed design, wind-tunnel validation, lateral winglets, and visor turbulators support low drag, stability, and improved aero-acoustic performance.
- Ventilation System: Eleven ventilation points, integrated air ducts, crown airflow channels, and rear exhausts help circulate air and remove heat.
- Anti-Fog Airflow: Chin-bar vents direct air along the inner shield surface to help prevent fogging and misting.
- Product Identification: Alpinestars Supertech R10 Helmet in Solid Carbon Black, Medium, part number 8200124-1902-M.
