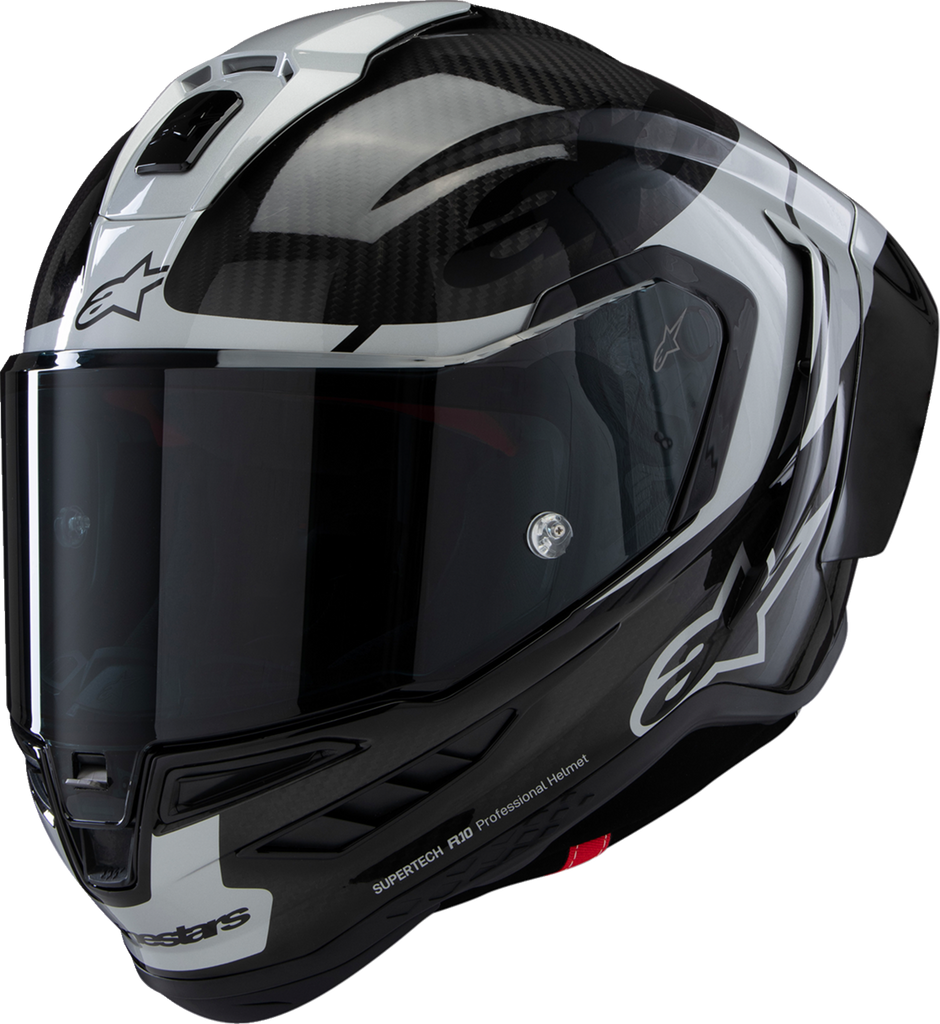

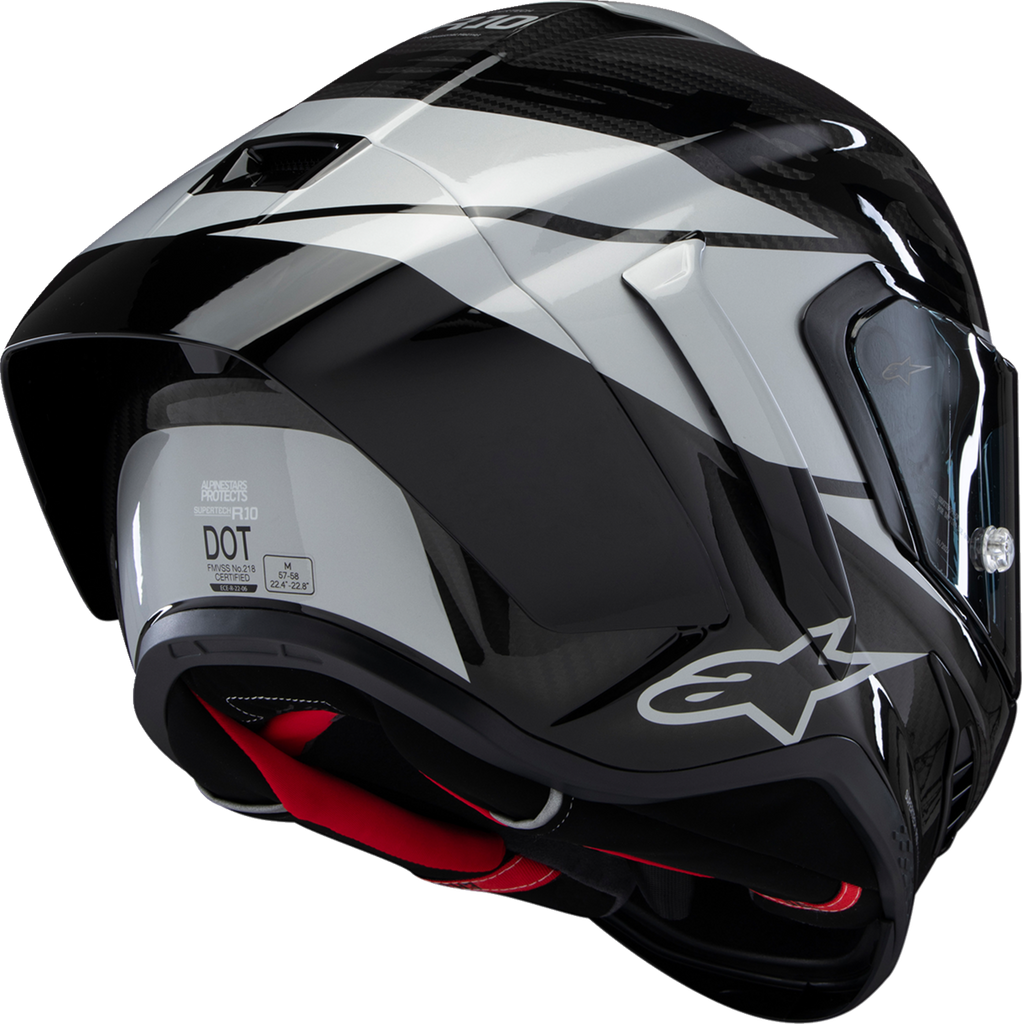

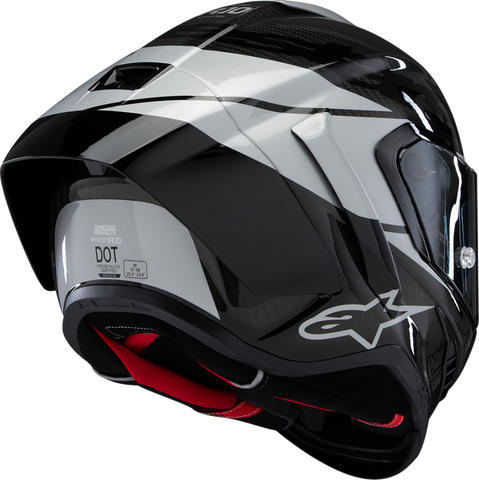

The Alpinestars Supertech R10 Helmet - Element combines advanced composite construction, race-developed aerodynamics, and a precision fit system for demanding motorcycle riding. Its multi-composite outer shell uses a 3K high-density carbon outer layer, unidirectional carbon composite, aramid fiber, and fiberglass bonded with pre-preg epoxy resin. This construction helps optimize the resin-to-fiber ratio for improved strength, mechanical performance, weight management, and energy dissipation. The shell is designed to limit deflection and distribute impact energy more effectively to the EPS liner.
The inner shell features an eight-piece, multi-density EPS liner with six strategically positioned densities to support energy absorption and rider comfort. Four inner shell configurations help provide a more precise fit while reducing unnecessary weight. A smooth, low-friction EPS surface is designed to help manage linear and oblique forces by allowing the comfort liner to move independently from the rider's head during certain impacts. The A-Head Fitment System allows riders to adjust the helmet's height and angle for a customized position, helping improve comfort, stability, and overall fit effectiveness.
Aerodynamic performance was developed through computational fluid dynamics simulations, wind-tunnel testing, and track validation. The helmet includes standard and extended race spoilers with elastic joints designed to detach during a significant impact, along with lateral winglets that support stability and drag management. Visor turbulators help improve aero-acoustic performance. Eleven ventilation points, including seven intakes and four exhausts, connect with internal EPS air channels to circulate cooling airflow and remove heat. The top vent uses a central slider to direct air toward the crown and assist forehead heat extraction, while rear exhausts release hot air. Chin-bar vents channel airflow toward the shield to help reduce fogging and also provide humid-air extraction. The Alpinestars Supertech R10 Element is finished in Carbon/Silver/Black and is supplied in Small, part number 8200324-1368-S.
Features:
- Outer Shell: Multi-composite construction combines a 3K high-density carbon outer layer, unidirectional carbon composite, aramid fiber, and fiberglass for strength and controlled energy management.
- Epoxy Resin Bonding: Pre-preg fiber technology helps control the resin-to-fiber ratio to support mechanical performance, lightweight construction, and limited shell deflection.
- EPS Liner: Eight-piece, multi-density EPS construction uses six specific densities positioned throughout the helmet for impact absorption and a close, comfortable fit.
- Low-Friction Impact Management: A smooth, specially coated EPS surface allows the comfort liner to move independently during oblique impacts to help reduce transmitted forces.
- A-Head Fitment System: Adjusts the helmet's height and angle for a personalized fit and preferred riding position.
- Aerodynamics: CFD development, wind-tunnel validation, race spoilers, lateral winglets, and visor turbulators support aerodynamic stability and reduced drag.
- Ventilation: Eleven ventilation points and integrated EPS air channels circulate airflow, extract heat, and help reduce shield fogging.
- Chin-Bar Airflow: Front vents direct laminated airflow toward the shield while separate extraction paths help remove humid air.
