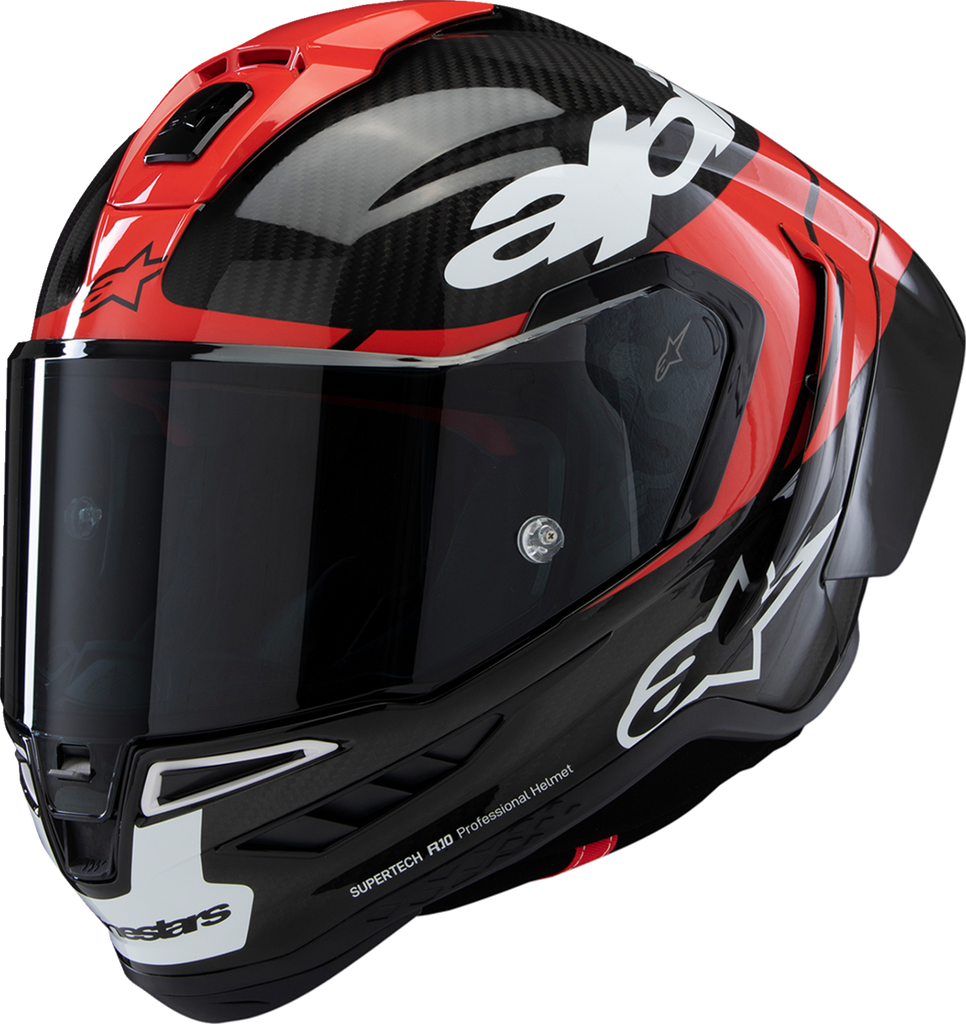

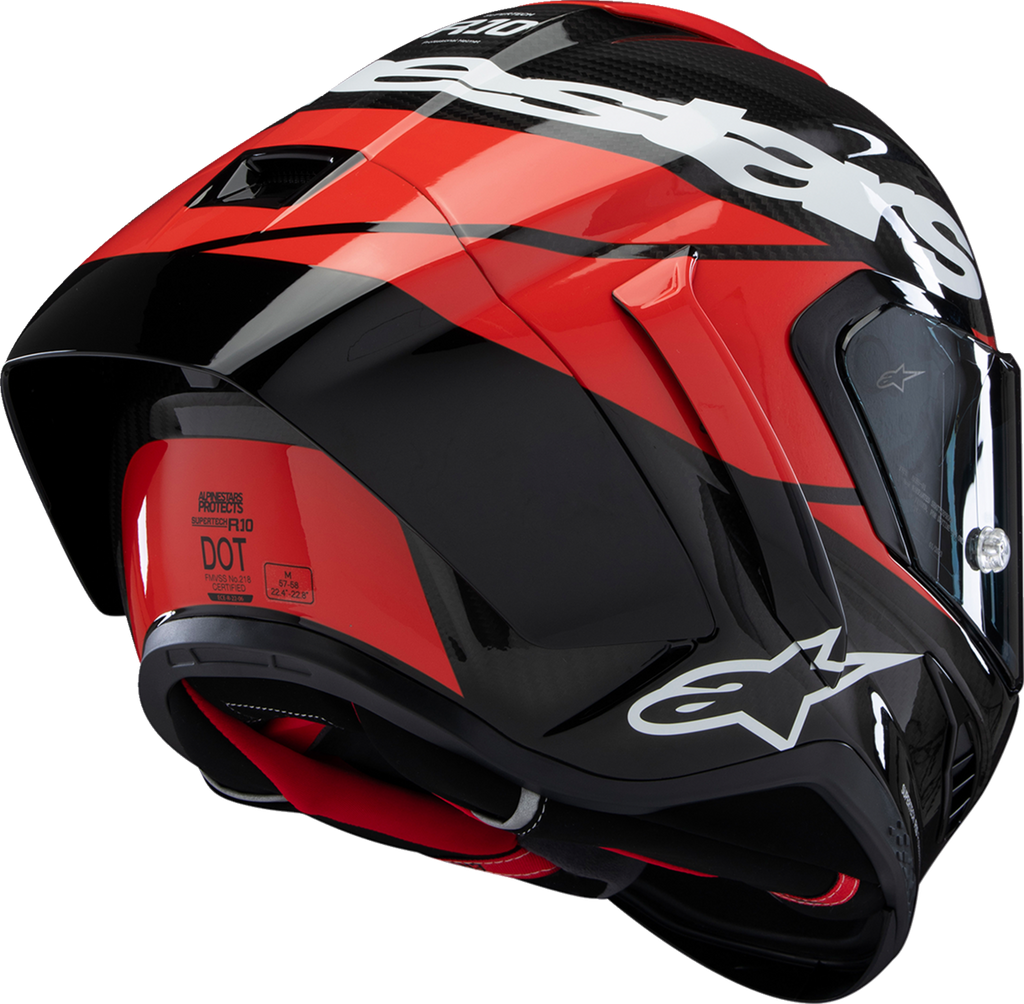

The Alpinestars Supertech R10 Helmet in Element Carbon/Red/White is a premium racing helmet engineered for advanced protection, aerodynamic stability, and rider comfort. Part Number 8200324-1363-XS features a multi-composite outer shell constructed from a 3K high-density carbon outer layer, unidirectional carbon composite, aramid fiber, and fiberglass. These materials are bonded with pre-preg epoxy resin to optimize the balance of resin and fiber, helping maximize strength, mechanical performance, and lightweight efficiency while supporting controlled energy dissipation and reduced shell deflection.
The inner shell uses an eight-piece, multi-density EPS liner with six strategically positioned densities to manage impact forces across different zones and provide a secure, comfortable fit. Four inner shell configurations help optimize fit and helmet effectiveness for different riders. A polished, low-friction EPS surface is designed to help manage linear and oblique forces by allowing the comfort liner to move relative to the EPS, helping reduce force transmission during an angled impact. The A-Head Fitment System allows riders to adjust the helmet's height and angle for a personalized position and improved fit.
Developed using CFD simulations, wind-tunnel testing, and track validation, the Supertech R10 is optimized for low drag and aerodynamic stability. It includes standard and longer race spoilers with elastic joints designed to detach under significant impact, along with lateral winglets and visor turbulators that support stability and aero-acoustic performance. The ventilation system includes 11 dedicated ventilation points, with intake ports in the chin guard and helmet crown and exhaust ports at the chin bar and rear. Integrated air channels direct airflow around the rider's head, while the top slider and rear extractors help manage heat. Chin vents channel air toward the shield to help reduce fogging and remove humid air from the helmet.
Features:
- Outer Shell: Multi-composite construction combines 3K high-density carbon, unidirectional carbon composite, aramid fiber, and fiberglass for strength, energy management, and reduced shell deflection.
- EPS Liner: Eight-piece, multi-density EPS liner uses six targeted densities to help absorb impact energy and provide a close, comfortable fit.
- Low-Friction EPS Surface: Smooth, specially coated inner surfaces help manage rotational, oblique, and linear impact forces.
- A-Head Fitment System: Adjusts helmet height and angle to help riders achieve a personalized fit and position.
- Aerodynamics: CFD-developed design with wind-tunnel and track validation supports low drag and aerodynamic stability.
- Spoilers: Includes standard and longer race spoilers with elastic joints designed to detach during significant impacts.
- Ventilation: Eleven dedicated ventilation points and integrated EPS air channels promote airflow, heat extraction, and comfort.
- Anti-Fog Airflow: Chin vents direct air toward the shield to help reduce fogging and misting.
