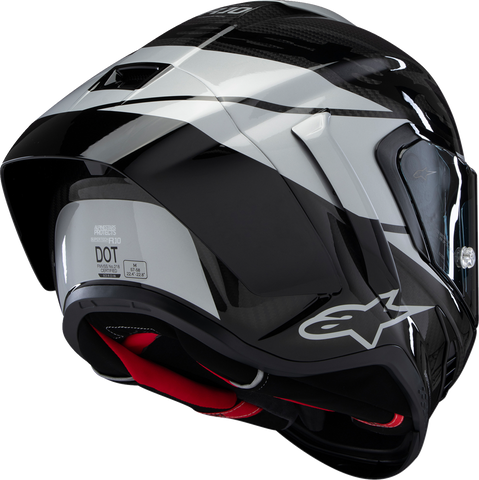

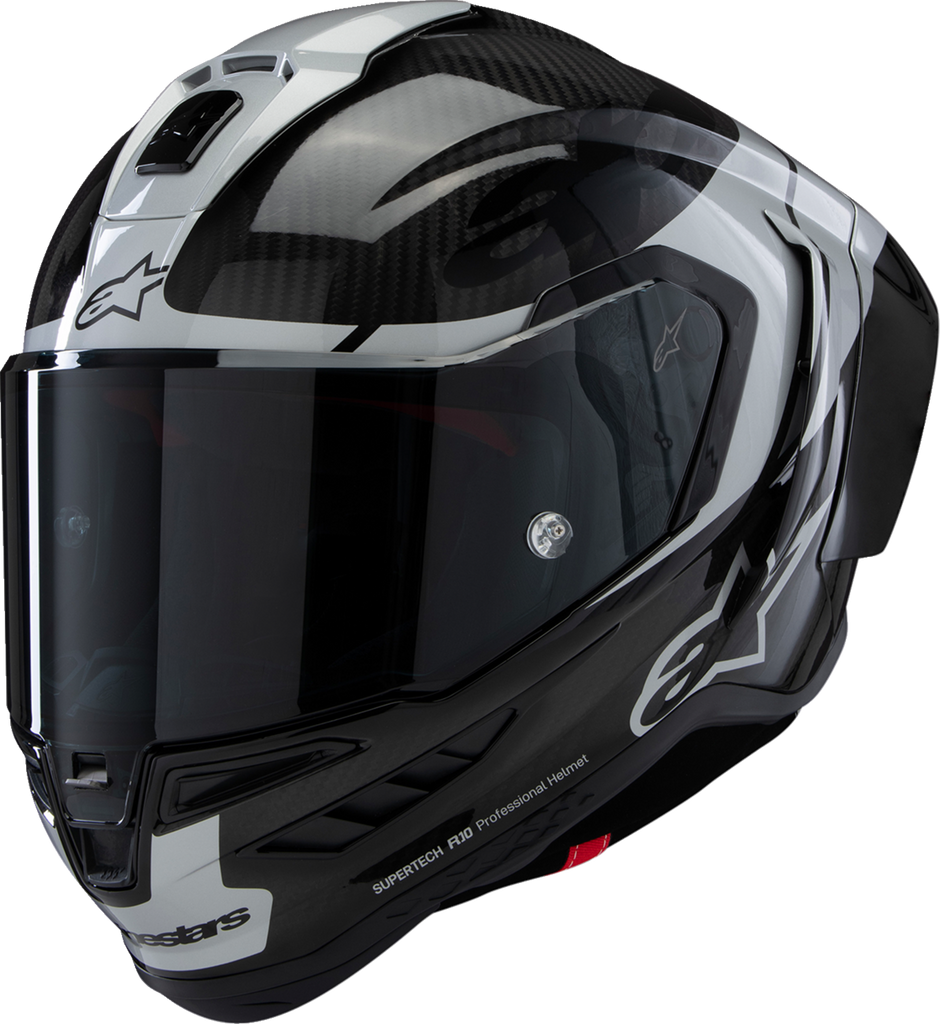

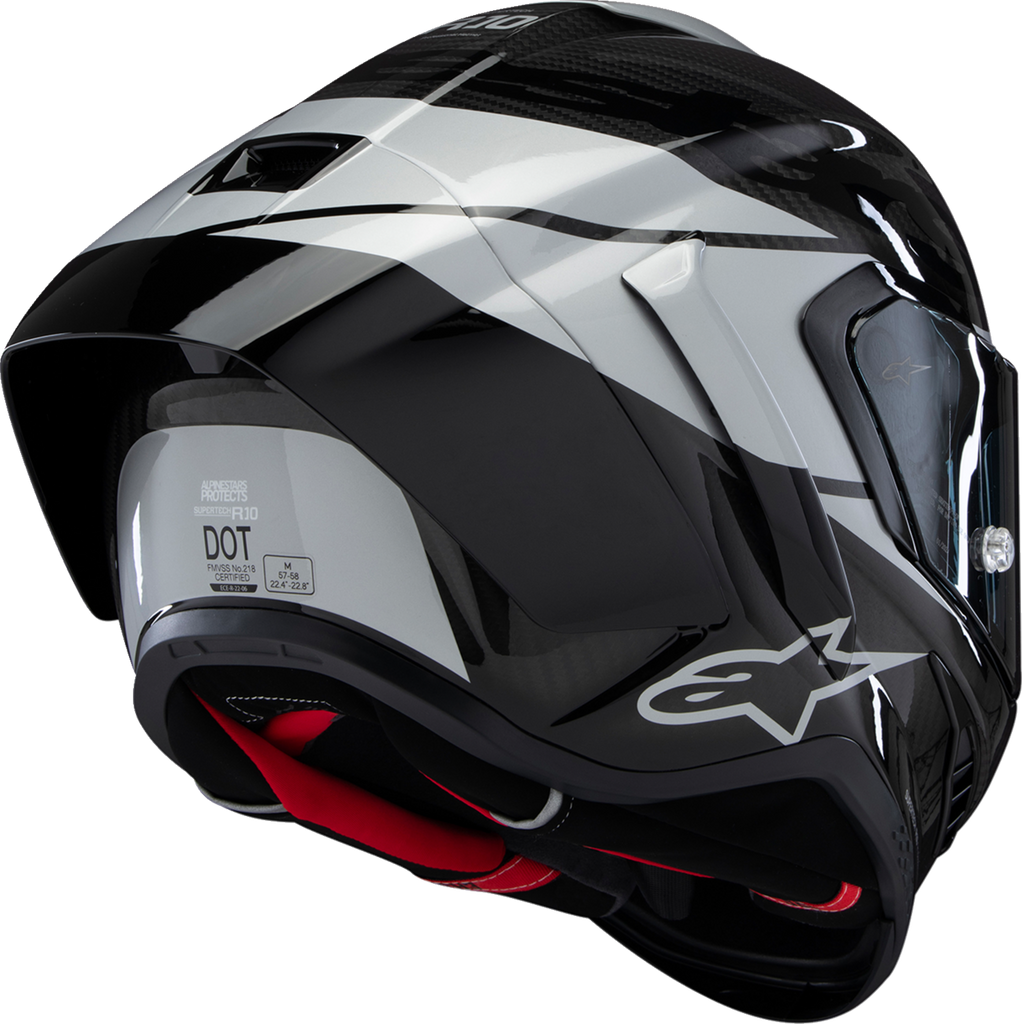

The Alpinestars Supertech R10 Element Helmet combines advanced multi-composite construction with race-developed protection and performance. Its outer shell uses a 3K high-density carbon outer layer, a unidirectional carbon composite layer, aramid fiber, and fiberglass bonded with pre-preg epoxy resin. This construction helps optimize the resin-to-fiber ratio for strength, mechanical performance, and reduced weight while limiting shell deflection and spreading impact energy more effectively across the EPS liner. The Carbon/Silver/Black finish delivers a distinctive appearance suited to riders seeking premium track and street equipment.
The inner shell features an eight-piece, multi-density EPS liner with six strategically positioned densities designed to manage impact forces across different zones. Four inner shell configurations help provide a precise, comfortable fit while supporting reduced overall weight and improved helmet performance during an impact. The polished, low-friction EPS surface works with the comfort liner to help manage linear and oblique forces, allowing the rider's head to move more independently inside the helmet. This design can help reduce force transmission to the head, neck, brain, and spine during an oblique impact.
The integrated A-Head Fitment System allows riders to adjust the helmet's height and angle for a personalized setup. Aerodynamic performance was developed through CFD simulation, wind tunnel validation, and track testing to support low drag and stable performance. The helmet includes standard and longer race spoilers with elastic joints designed to detach under significant impact, along with lateral winglets for additional stability. Visor turbulators help improve aero-acoustic performance while supporting a smoother airflow profile.
Ventilation is supported by seven intake ports and four exhaust ports, with airflow directed through channels in the EPS liner and around the rider's head. The top vent uses a large central slider to direct air toward the crown and assist with hot-air extraction. Rear exhaust vents help remove heat, while the chin bar vents channel air toward the inner shield to help prevent fogging and misting. The Alpinestars Supertech R10 Element Helmet is offered here in XL with part number 8200324-1368-XL.
Features:
- Multi-composite outer shell: Combines 3K high-density carbon, unidirectional carbon composite, aramid fiber, and fiberglass for advanced strength and energy management.
- Pre-preg epoxy construction: Controls the resin-to-fiber ratio to support mechanical performance, durability, and reduced weight.
- Multi-density EPS liner: Uses eight pieces and six specific densities to manage impact energy and provide a close, comfortable fit.
- Low-friction EPS surface: Helps manage rotational, oblique, and linear forces by allowing controlled movement between the comfort liner and EPS.
- A-Head Fitment System: Adjusts helmet height and angle to help riders achieve a personalized fit.
- Race-developed aerodynamics: CFD simulations, wind tunnel testing, and track validation support low drag and aerodynamic stability.
- Dual aerodynamic spoilers: Includes standard and longer race versions with elastic joints designed to detach during significant impacts.
- Advanced ventilation: Seven intake ports, four exhaust ports, and integrated EPS air channels promote airflow and heat removal.
- Anti-fog airflow design: Chin bar vents direct air along the inner shield to help reduce fogging and misting.
- Element colorway: Features a Carbon/Silver/Black finish and XL fit with part number 8200324-1368-XL.
