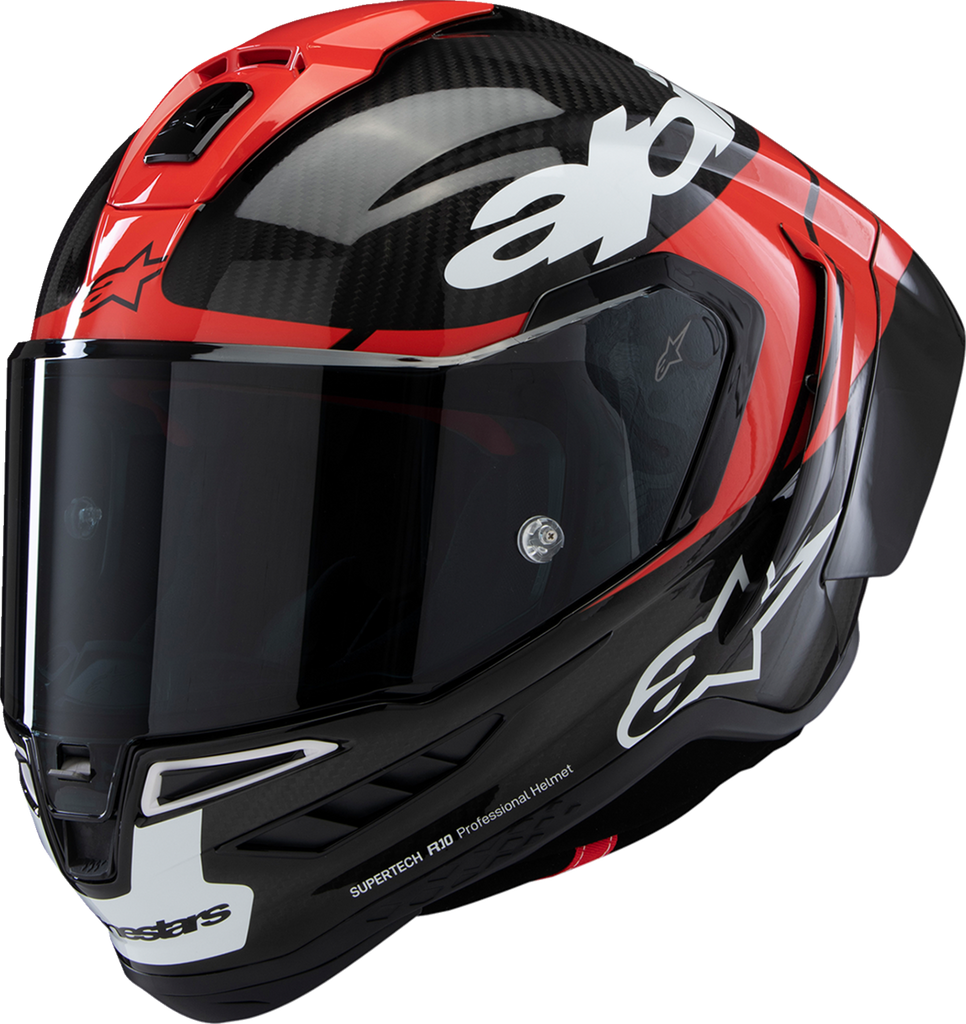

Supertech R10 Helmet - Element - Carbon/Red/White - XL
The Alpinestars Supertech R10 Element helmet combines advanced composite construction, race-developed aerodynamics, and adaptable impact protection for demanding street and track riding. Part number 8200324-1363-XL identifies this Carbon/Red/White helmet in XL sizing. Its outer shell uses a multi-composite structure with a 3K high-density carbon outer layer, uni-directional carbon composite, aramid fiber, and fiberglass bonded with epoxy resin. This pre-preg construction precisely controls the resin-to-fiber ratio to support high strength, efficient energy dissipation, reduced shell deflection, and improved energy management through the EPS liner.
Features:
- Outer Shell: Multi-composite shell combines 3K high-density carbon, uni-directional carbon composite, aramid fiber, and fiberglass for strength, lightweight performance, and controlled energy dissipation.
- Impact Protection: Eight-piece multi-density EPS liner uses six strategically positioned densities to absorb impact forces and support a secure, comfortable fit.
- Fit System: A-Head Fitment System adjusts the helmet’s height and fore-aft angle to help riders achieve a personalized position and improved protective performance.
- Oblique Impact Management: Smooth, specially coated EPS surfaces create a low-friction interface that allows the comfort liner to move independently during oblique impacts, helping reduce transmitted forces.
- Aerodynamics: CFD simulations, wind-tunnel testing, and track validation support low-drag performance and aerodynamic stability.

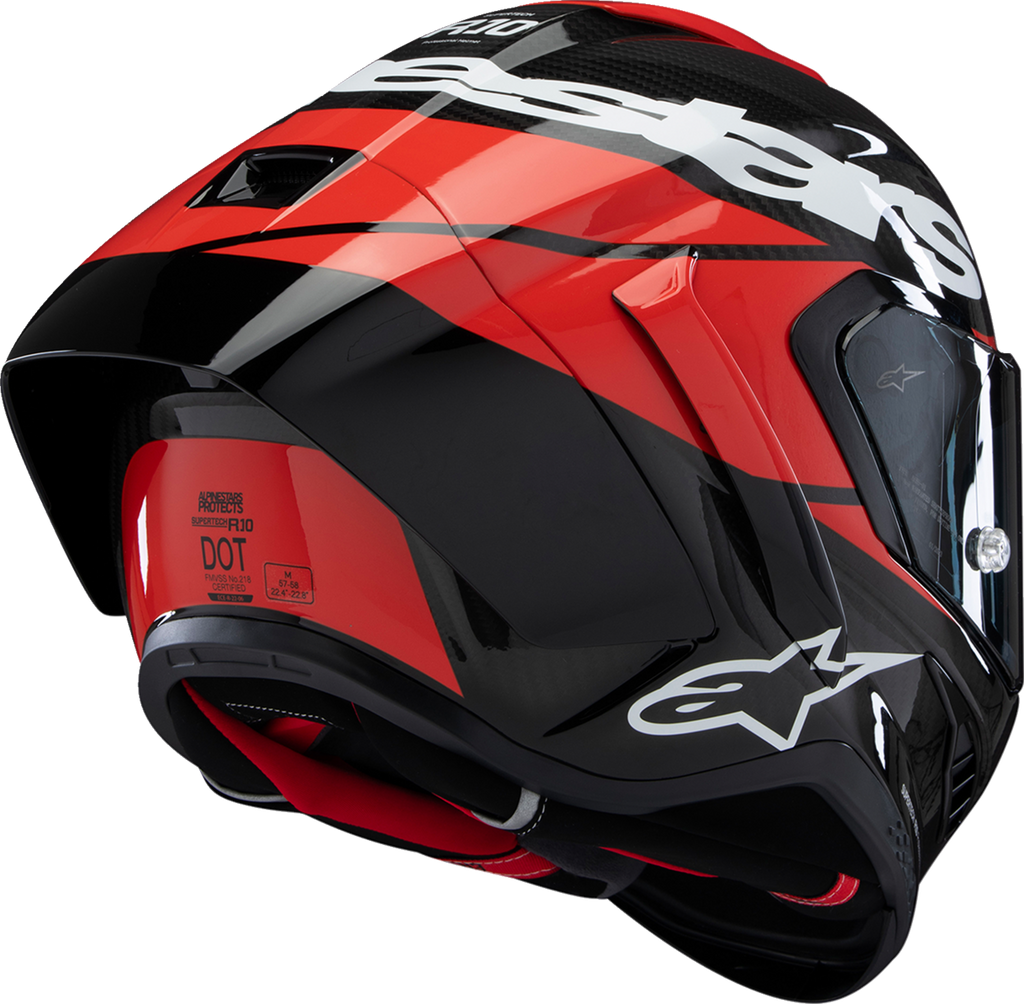

- Race Spoilers: Includes standard and extended race spoilers with elastic joints designed to detach during significant impacts to help reduce rotational energy.
- Lateral Stability: Winglets support aerodynamic stability and help improve drag performance at speed.
- Visor Design: Integrated turbulators improve aero-acoustic performance.
- Ventilation: Eleven ventilation points, including seven intakes and four exhausts, provide airflow through channels integrated with the EPS liner.
- Chin Ventilation: Front chin vents direct air toward the shield to help prevent fogging while also allowing humid air to escape.
- Top Ventilation: A large central slider channels air toward the crown and provides forehead heat extraction when open.
- Rear Exhausts: Two extractor vents beneath the rear spoiler help remove hot air from inside the helmet.
