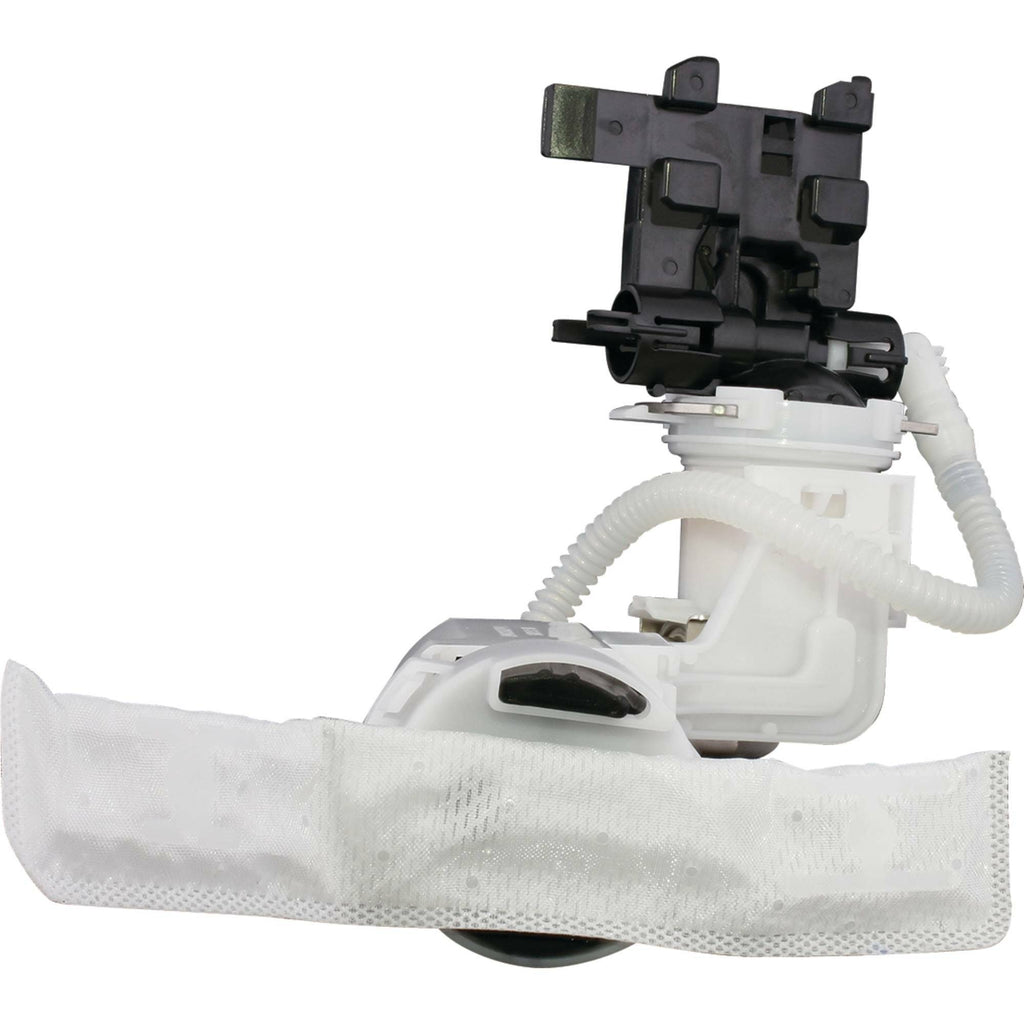

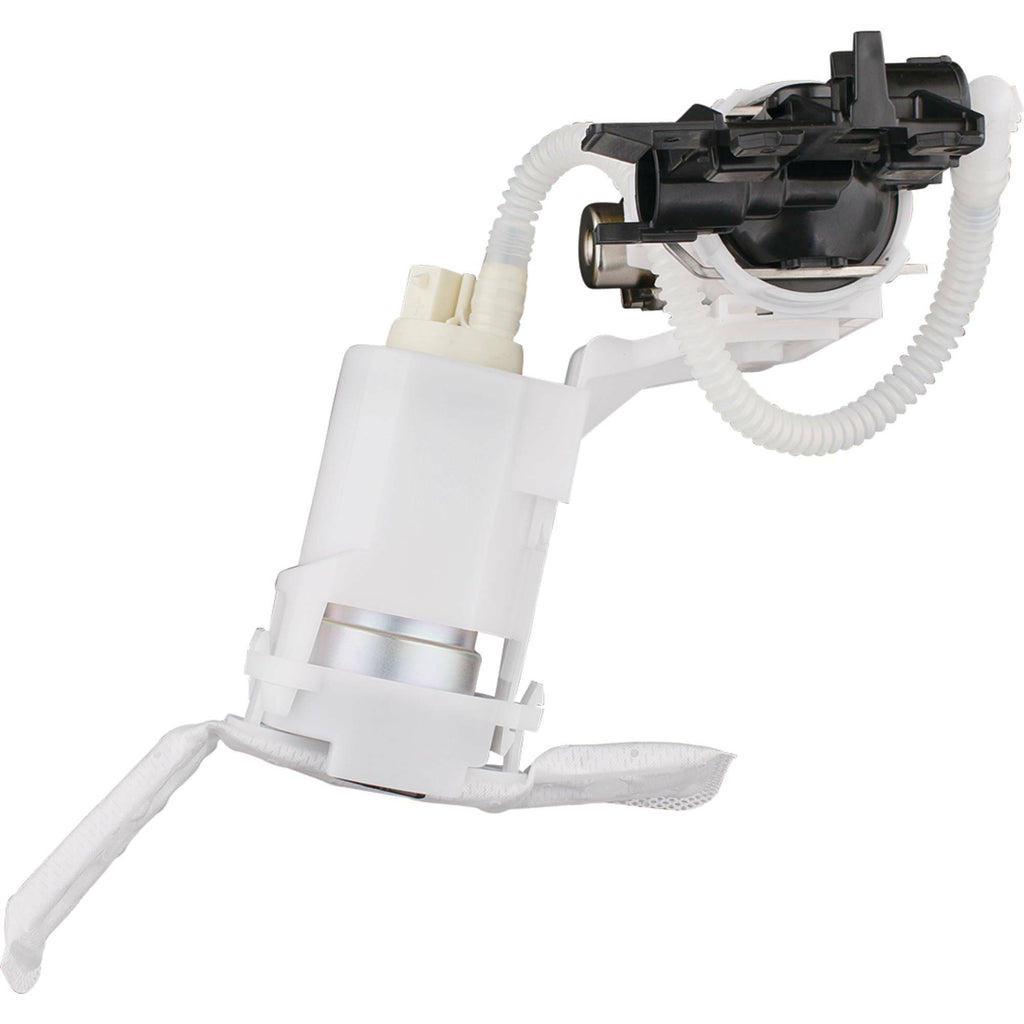

Restore reliable fuel delivery with the All Balls Fuel Pump Module Kit, manufacturer part number 47-1097 and vendor part number 24-71097. Designed, built, and verified to meet or exceed OEM standards, this replacement module is engineered to provide dependable performance for select Harley-Davidson Dyna motorcycles. The pump draws the same current as the original equipment unit, helping maintain proper electrical operation and reducing the risk of fuel pump-related error codes.

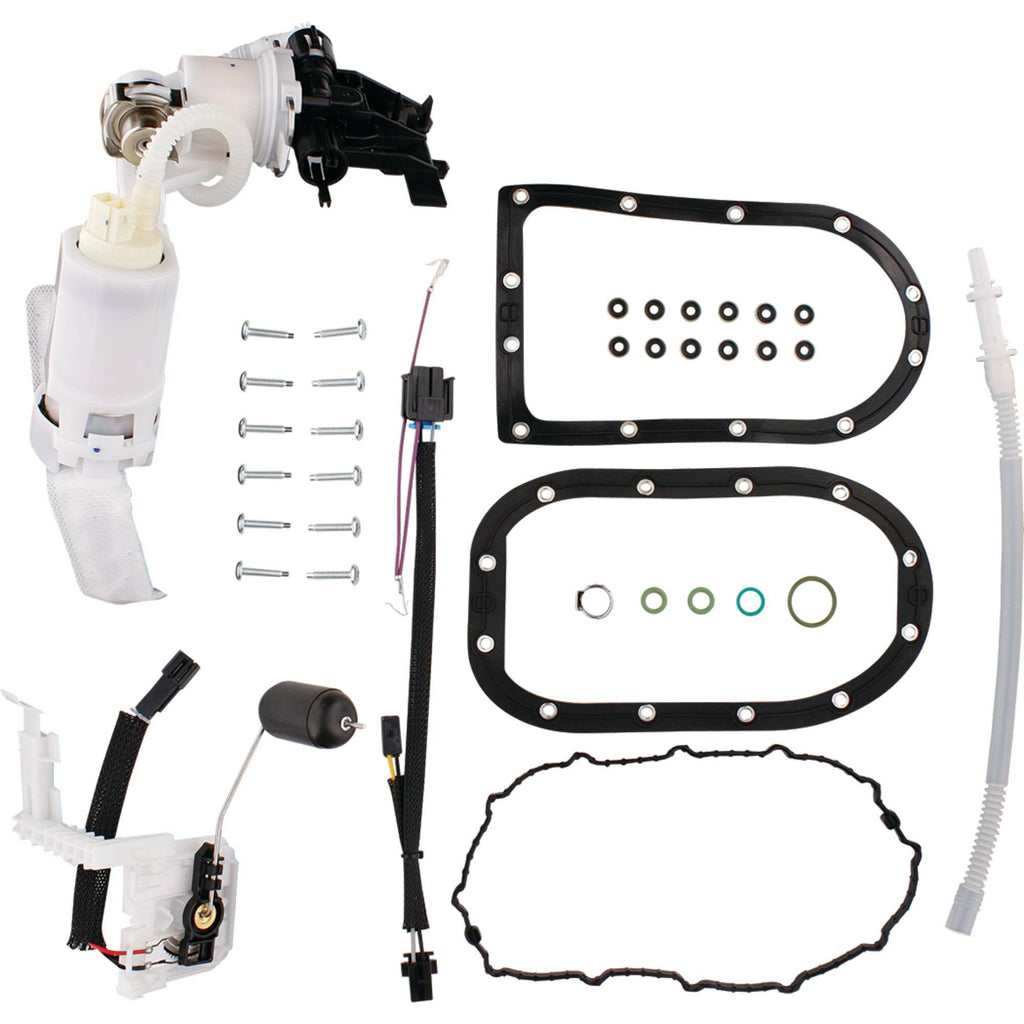

This fuel pump module kit includes the sending unit, O-ring kit for resealing the dry-break connector, replacement fuel line from the quick connector to the module, tank gasket, installation hardware with seals, and a locking ring when applicable. Twin Cam kits also include a wiring harness for updating the connector to the late-model version. The complete design helps restore lost fuel system performance while providing the components needed for a thorough installation.
Fitment includes the 2017 Harley-Davidson FXDLS Dyna Low Rider S; 2009 and 2010 FXDFSE CVO Dyna Fat Bob; 2009 and 2010 FXD Dyna Super Glide; and 2009 through 2013 FXDB Dyna Street Bob. Verify the motorcycle model, year, and existing connector configuration before ordering. The All Balls Fuel Pump Module Kit 47-1097 is backed by a limited lifetime warranty for added confidence in long-term replacement performance.
Features:
- OEM-Standard Design: Designed, built, and verified to meet or exceed OEM standards.
- Consistent Electrical Demand: Draws the same current as the OEM fuel pump to help prevent error codes.
- Performance Restoration: Provides an economical solution for restoring lost fuel delivery performance.
- Complete Installation Kit: Includes the sending unit, O-ring kit, replacement fuel line, tank gasket, hardware with seals, and locking ring when applicable.
- Twin Cam Compatibility: Includes a wiring harness for updating the connector to the late-model version on applicable Twin Cam kits.
- Warranty Coverage: Backed by a limited lifetime warranty.
Fitment:
2009 Harley Davidson FXD Dyna Super Glide
2009 Harley Davidson FXDB Dyna Street Bob
2009 Harley Davidson FXDC Dyna Super Glide Custom
2009 Harley Davidson FXDF Dyna Fat Bob
2009 Harley Davidson FXDFSE CVO Dyna Fat Bob
2009 Harley Davidson FXDL Dyna Low Rider
2010 Harley Davidson FXD Dyna Super Glide
2010 Harley Davidson FXDB Dyna Street Bob
2010 Harley Davidson FXDC Dyna Super Glide Custom
2010 Harley Davidson FXDF Dyna Fat Bob
2010 Harley Davidson FXDFSE CVO Dyna Fat Bob
2010 Harley Davidson FXDWG Dyna Wide Glide
2011 Harley Davidson FXDB Dyna Street Bob
2011 Harley Davidson FXDC Dyna Super Glide Custom
2011 Harley Davidson FXDF Dyna Fat Bob
2011 Harley Davidson FXDWG Dyna Wide Glide
2012 Harley Davidson FLD Dyna Switchback
2012 Harley Davidson FXDB Dyna Street Bob
2012 Harley Davidson FXDC Dyna Super Glide Custom
2012 Harley Davidson FXDF Dyna Fat Bob
2012 Harley Davidson FXDWG Dyna Wide Glide
2013 Harley Davidson FLD Dyna Switchback
2013 Harley Davidson FXDB Dyna Street Bob
2013 Harley Davidson FXDC Dyna Super Glide Custom
2013 Harley Davidson FXDF Dyna Fat Bob
2013 Harley Davidson FXDWG Dyna Wide Glide
2014 Harley Davidson FLD Dyna Switchback
2014 Harley Davidson FXDB Dyna Street Bob
2014 Harley Davidson FXDC Dyna Super Glide Custom
2014 Harley Davidson FXDF Dyna Fat Bob
2014 Harley Davidson FXDL Dyna Low Rider
2014 Harley Davidson FXDWG Dyna Wide Glide
2015 Harley Davidson FLD Dyna Switchback
2015 Harley Davidson FXDB Dyna Street Bob
2015 Harley Davidson FXDF Dyna Fat Bob
2015 Harley Davidson FXDL Dyna Low Rider
2015 Harley Davidson FXDWG Dyna Wide Glide
2016 Harley Davidson FLD Dyna Switchback
2016 Harley Davidson FXDB Dyna Street Bob
2016 Harley Davidson FXDF Dyna Fat Bob
2016 Harley Davidson FXDL Dyna Low Rider
2016 Harley Davidson FXDWG Dyna Wide Glide
2017 Harley Davidson FXDB Dyna Street Bob
2017 Harley Davidson FXDF Dyna Fat Bob
2017 Harley Davidson FXDL Dyna Low Rider
2017 Harley Davidson FXDLS Dyna Low Rider S
2017 Harley Davidson FXDWG Dyna Wide Glide
