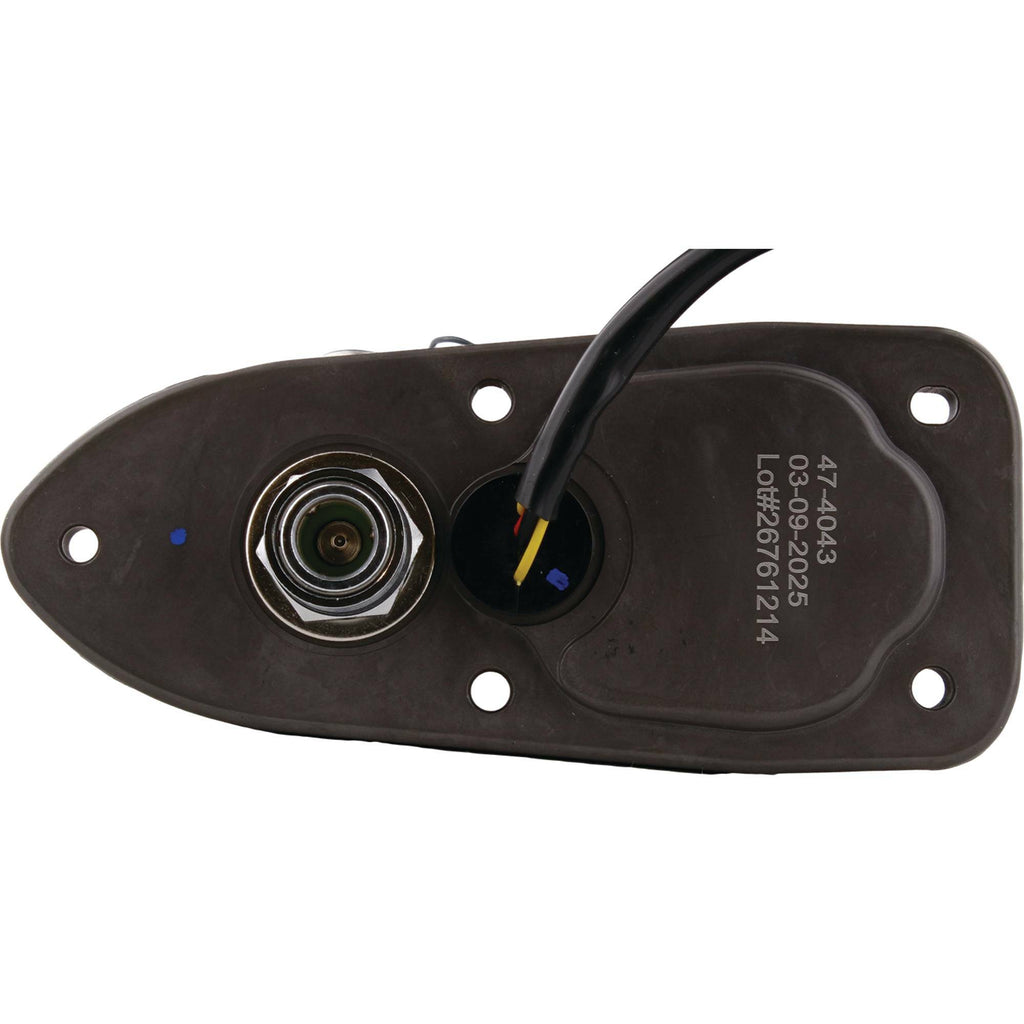

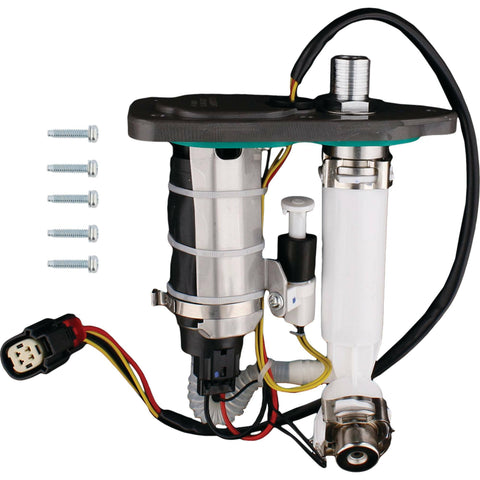

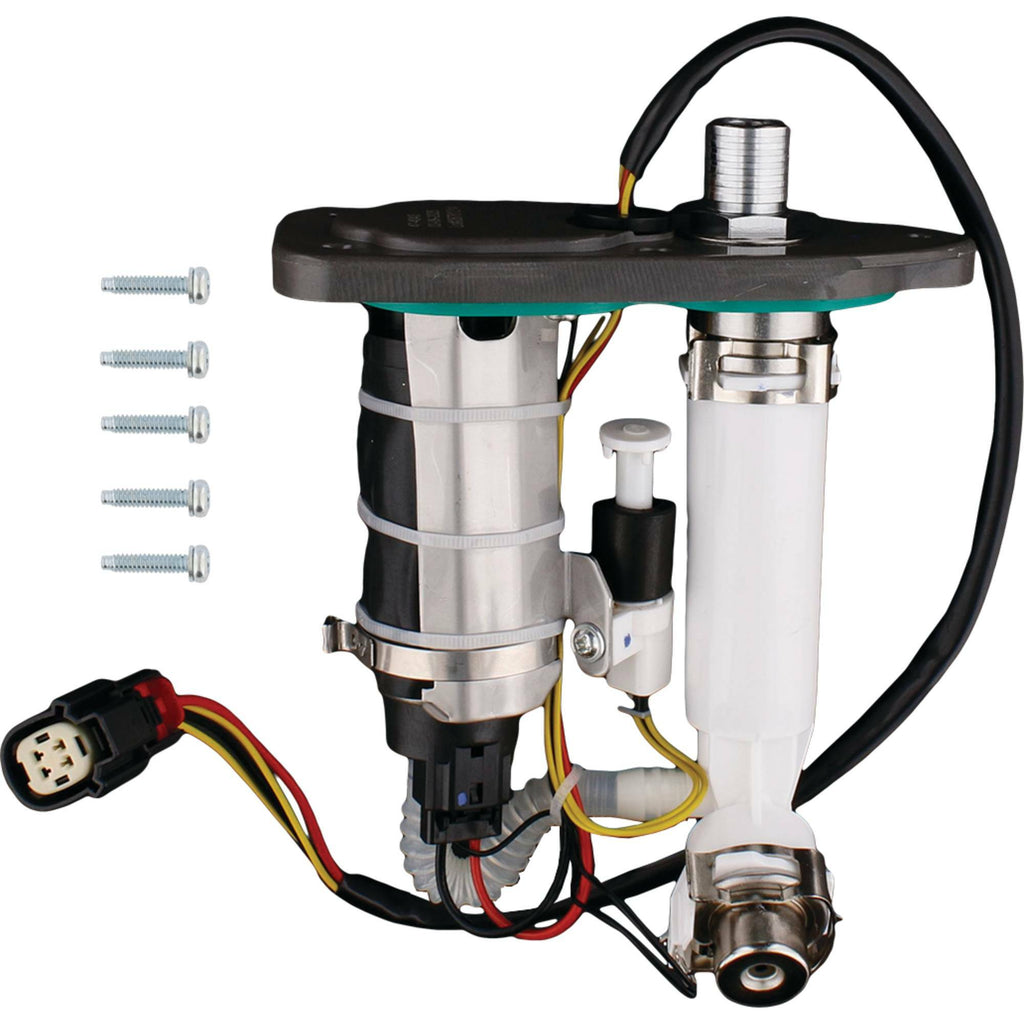

Restore reliable fuel delivery with the All Balls Fuel Pump Module Kit, manufacturer part number 47-1062 and vendor part number 24-71062. This replacement fuel pump module is designed, built, and verified to meet or exceed OEM standards, providing an economical solution for recovering lost performance on compatible Harley-Davidson Sportster motorcycles.
The pump draws the same current as the original equipment unit, helping maintain proper electrical performance and reducing the likelihood of replacement-related error codes. The kit includes the sending unit, an O-ring kit for resealing the dry-break connector, replacement fuel line from the quick connector to the module, tank gasket, installation hardware with seals, and a locking ring when applicable. Twin Cam applications also include a wiring harness for updating the connector to the late-model version.
Fitment includes the 2017 Harley-Davidson XL1200CX Roadster and Harley-Davidson XL883N Iron 883 models from 2009 through 2017. Confirm the motorcycle model and year before installation to ensure compatibility. The All Balls Fuel Pump Module Kit is backed by a limited lifetime warranty for added confidence in long-term replacement performance.
Features:
- OEM-Standard Design: Designed, built, and verified to meet or exceed original equipment standards.
- Matching Electrical Demand: Draws the same current as the OEM pump to help prevent replacement-related error codes.
- Performance Restoration: Provides an economical way to restore lost fuel delivery performance.
- Complete Installation Kit: Includes the sending unit, O-ring kit, replacement fuel line, tank gasket, hardware with seals, and locking ring when applicable.
- Connector Update: Twin Cam kits include a wiring harness for updating the connector to the late-model version.
- Warranty Coverage: Backed by a limited lifetime warranty.
- Fitment: Fits the 2017 Harley-Davidson XL1200CX Roadster and 2009–2017 Harley-Davidson XL883N Iron 883.
Fitment:
2007 Harley Davidson XL1200C Sportster 1200 Custom
2007 Harley Davidson XL1200L Sportster 1200 Low
2007 Harley Davidson XL1200R Roadster
2007 Harley Davidson XL883 Sportster 883
2007 Harley Davidson XL883C Sportster 883 Custom
2007 Harley Davidson XL883L Super Low
2007 Harley Davidson XL883R 883 Roadster
2008 Harley Davidson XL1200C Sportster 1200 Custom
2008 Harley Davidson XL1200L Sportster 1200 Low
2008 Harley Davidson XL1200N Nightster
2008 Harley Davidson XL1200R Roadster
2008 Harley Davidson XL883 Sportster 883
2008 Harley Davidson XL883C Sportster 883 Custom
2008 Harley Davidson XL883L Super Low
2009 Harley Davidson XL1200C Sportster 1200 Custom
2009 Harley Davidson XL1200L Sportster 1200 Low
2009 Harley Davidson XL1200N Nightster
2009 Harley Davidson XL883C Sportster 883 Custom
2009 Harley Davidson XL883L Super Low
2009 Harley Davidson XL883N Iron 883
2009 Harley Davidson XR1200
2010 Harley Davidson XL1200C Sportster 1200 Custom
2010 Harley Davidson XL1200L Sportster 1200 Low
2010 Harley Davidson XL1200N Nightster
2010 Harley Davidson XL883L Super Low
2010 Harley Davidson XL883N Iron 883
2010 Harley Davidson XR1200
2011 Harley Davidson XL1200C Sportster 1200 Custom
2011 Harley Davidson XL1200L Sportster 1200 Low
2011 Harley Davidson XL1200N Nightster
2011 Harley Davidson XL1200X Forty-Eight
2011 Harley Davidson XL883L Super Low
2011 Harley Davidson XL883N Iron 883
2012 Harley Davidson XL1200C Sportster 1200 Custom
2012 Harley Davidson XL1200N Nightster
2012 Harley Davidson XL1200X Forty-Eight
2012 Harley Davidson XL883L Super Low
2012 Harley Davidson XL883N Iron 883
2013 Harley Davidson XL1200C Sportster 1200 Custom
2013 Harley Davidson XL1200V Seventy Two
2013 Harley Davidson XL1200X Forty-Eight
2013 Harley Davidson XL883L Super Low
2013 Harley Davidson XL883N Iron 883
2014 Harley Davidson XL1200C Sportster 1200 Custom
2014 Harley Davidson XL1200V Seventy Two
2014 Harley Davidson XL1200X Forty-Eight
2014 Harley Davidson XL883L Super Low
2014 Harley Davidson XL883N Iron 883
2015 Harley Davidson XL1200C Sportster 1200 Custom
2015 Harley Davidson XL1200T Super Low Touring
2015 Harley Davidson XL1200V Seventy Two
2015 Harley Davidson XL1200X Forty-Eight
2015 Harley Davidson XL883L Super Low
2015 Harley Davidson XL883N Iron 883
2016 Harley Davidson XL1200C Sportster 1200 Custom
2016 Harley Davidson XL1200T Super Low Touring
2016 Harley Davidson XL1200V Seventy Two
2016 Harley Davidson XL1200X Forty-Eight
2016 Harley Davidson XL883L Super Low
2016 Harley Davidson XL883N Iron 883
2017 Harley Davidson XL1200C Sportster 1200 Custom
2017 Harley Davidson XL1200CX Roadster
2017 Harley Davidson XL1200T Super Low Touring
2017 Harley Davidson XL1200X Forty-Eight
2017 Harley Davidson XL883L Super Low
2017 Harley Davidson XL883N Iron 883
2018 Harley Davidson XL1200C Sportster 1200 Custom
2018 Harley Davidson XL1200CX Roadster
2018 Harley Davidson XL1200NS Iron 1200
2018 Harley Davidson XL1200X Forty-Eight
2018 Harley Davidson XL1200XS Forty Eight Special
2018 Harley Davidson XL883L Super Low
2018 Harley Davidson XL883N Iron 883
2019 Harley Davidson XL1200C Sportster 1200 Custom
2019 Harley Davidson XL1200CX Roadster
2019 Harley Davidson XL1200NS Iron 1200
2019 Harley Davidson XL1200X Forty-Eight
2019 Harley Davidson XL1200XS Forty Eight Special
2019 Harley Davidson XL883L Super Low
2019 Harley Davidson XL883N Iron 883
2020 Harley Davidson XL1200CX Roadster
2020 Harley Davidson XL1200NS Iron 1200
2020 Harley Davidson XL1200X Forty-Eight
2020 Harley Davidson XL883N Iron 883
2021 Harley Davidson XL1200X Forty-Eight
2021 Harley Davidson XL883N Iron 883
2022 Harley Davidson XL1200X Forty-Eight
2022 Harley Davidson XL883N Iron 883
